Name: HT-IQT-B Diffused Silicon Pressure Sensor High Temperature Water Oil Pressure Sensor
Brand: HT SENSOR
SKU: HT-IQT-B
Rating: 4.8 (138 reviews)

Detail Information

Model NO.:	HT-IQT-B	Range:	0-35kpa~3.5Mpa
Wiring Type:	Gold-plated Kovar Pins	Measuring Medium:	AIR And Liquid Water And Oil
Customized:	Customized	Thread:	50.4mm
Output:	Mv Signal	Power:	1.5mA
Specification:	50.4mm	Type:	Diffused Silicon Pressure Sensor
Output Signal Type:	Analog	Material:	316L Stainless Steel
High Light:	HT-IQT-B Diffused Silicon Pressure Sensor , Water Oil Diffused Silicon Pressure Sensor , High Temperature Water Oil Pressure Sensor

Product Description

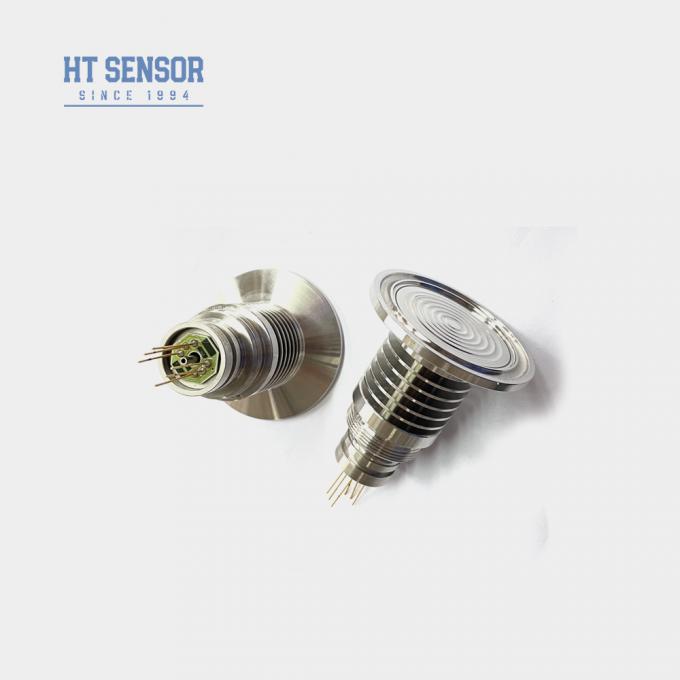

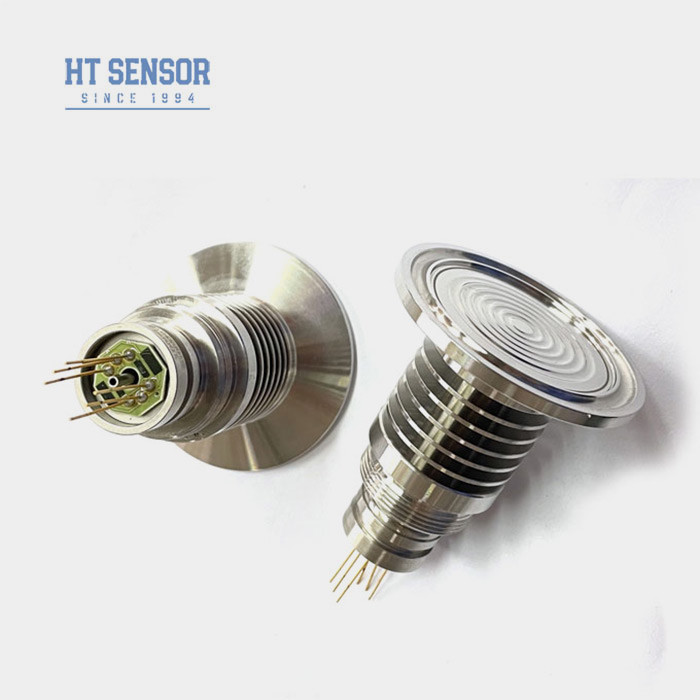

HT Sensor HT-IQT-B Diffused Silicon Pressure Sensor for High temperature water or oil

HT-IQT-B Piezoresistive Silicon Pressure Sensor

Introduction of diffused silicon pressure sensor:

HT - IQT - B silicon pressure sensor is a kind of embedded diaphragm.Pressure was transferred to the sensitive chip through a stainless steel diaphragm and sealed silicone oil. The sensor chip converts the pressure into a detectable millivolt electrical signal. Thus, we can intuitively observe the pressure value of the measured medium. This product adopts plate diaphragm structure, with high temperature heat sink, high temperature medium measurement effect is good. The bare flat diaphragm is easy to clean and has a good effect on the measurement of viscous media.Apply to food, health and other industries.

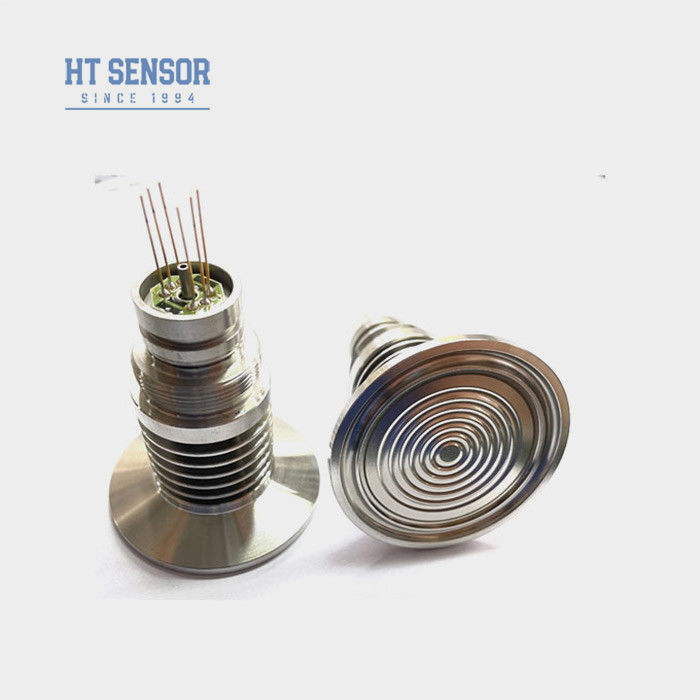

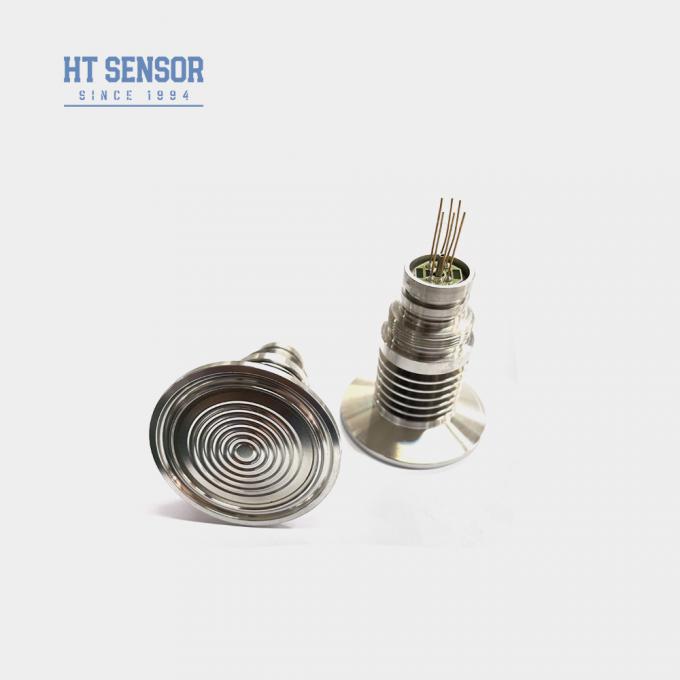

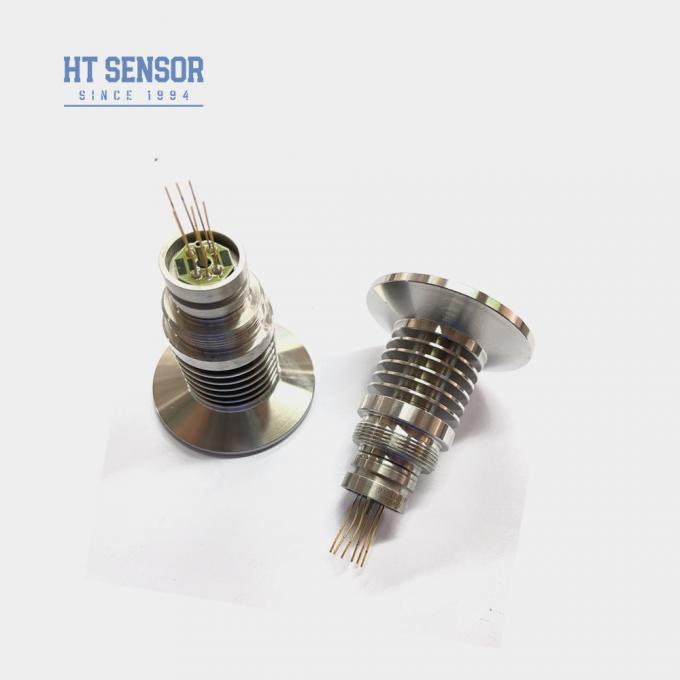

HT diffused silicon oil-filled pressure sensor

Product Features of diffused silicon pressure sensor:

316L stainless steel housing packaging.
Temperature compensation and zero point correction through thick film.
High-temperature flush diaphragm structure for easy cleaning.

Applications of diffused silicon pressure sensor:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility.
Food and beverage industry.
Industrial process control.

Electrical performance of diffused silicon pressure sensor:

Power Supply: ≤2mA DC (0.4-1.5mA DC).
Input Impedance : 2.5KΩ~6KΩ.
Output Impedance: 2.5KΩ~6KΩ.
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.

Performance Parameters of diffused silicon pressure sensor:
Measurement Range		Gauge(G)	35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±10		50±30	mV
	≥35kPa	100±10		100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~220g
The parameters are tested under the following conditions: 1.5mA @25°C

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company

FQA

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
