| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BP93420-III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP93420-III | Pressure Range: | -100kpa...0kpa ~10kpa...100MPa |
|---|---|---|---|
| Accuracy Grade: | ±0.5%F.S | IP Rating: | IP65 |
| Warranty: | 2 Years | Power: | 24VDC |
| Output: | 4-20mA With LED OR LCD Display | Pressure Type: | Gauge , Absolute , Sealed Pressure |
| Measuring Medium: | Liquid Air Water | Customization: | Available | Customized Request |
| High Light: | 4-20mA Smart Digital Hydraulic Pressure Sensor,Digital Hydraulic Pressure Sensor 24VDC,24VDC Digital Display Pressure Sensor |
||

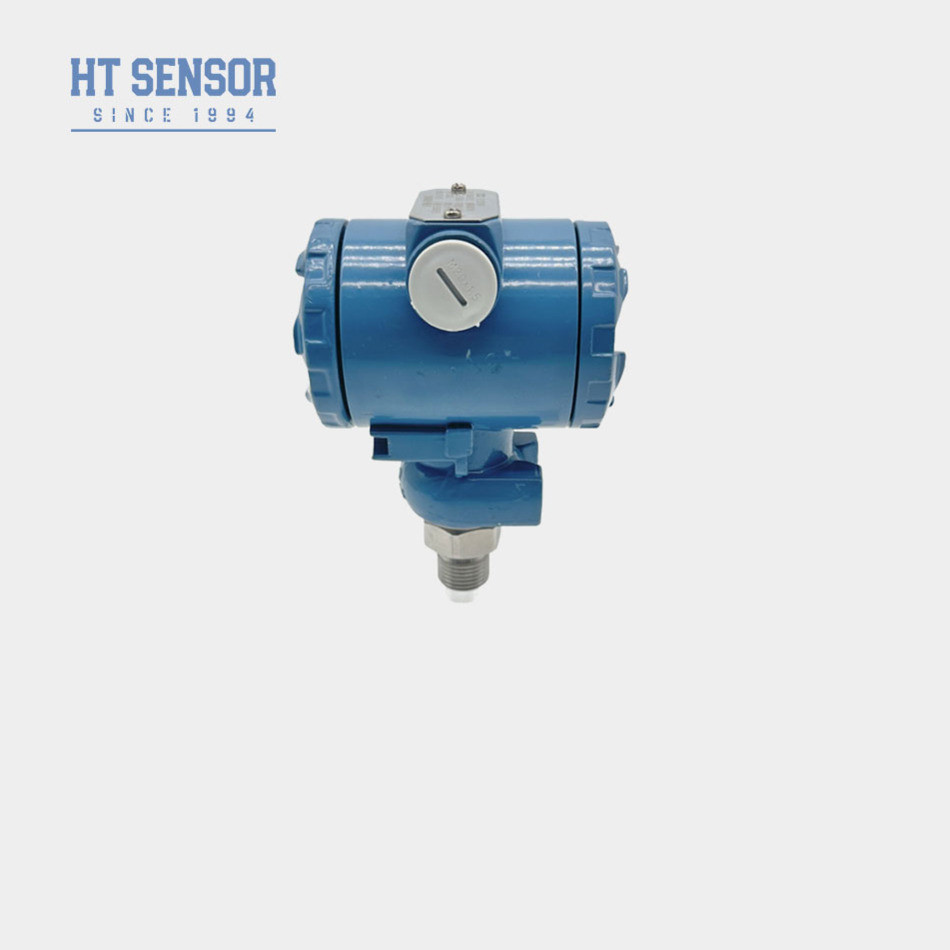

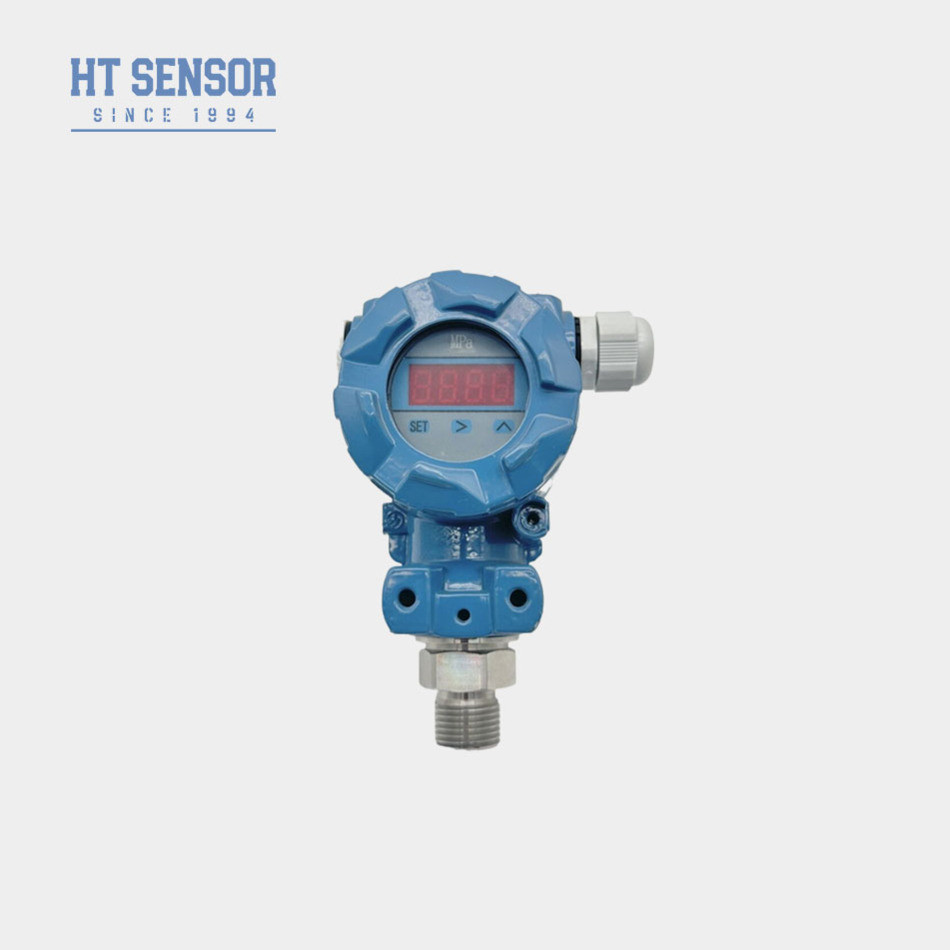

BP93420-III smart Pressure Transmitter
Introduction of smart pressure transmitter:
The BP93420III pressure transmitter utilizes an HT series silicon piezoresistive isolation oil-filled core as its signal measuring element. This core is responsible for accurately measuring pressure. The sensor signal is then processed by a circuit that converts it into a standard output signal. To ensure reliable performance and minimize interference, the product undergoes rigorous testing and aging screening at every stage of production, including components, semi-finished, and finished products. The pressure interface of the transmitter is designed in various forms to cater to diverse requirements and applications.
Product Features of smart pressure transmitter:
1. Wide measuring range, and diverse pressure interface forms
2. Various output signal forms, adjustable and displayable
3. Adjustable zero point and full scale
4. Core utilizes high-precision and high-performance diffused silicon piezoresistive pressure sensors
Applications of smart pressure transmitter:
1. Designed for measuring the pressure of non-corrosive gases and liquids using 316L stainless steel.
2. Ideal for industries such as petroleum, chemical, metallurgy, power, and hydrology.
3. Suitable for pressure measurement and control in harsh outdoor industrial environments.
4. Can be used in hydraulic and pneumatic control systems for precise pressure measurement and control.
| Performance Parameters of smart pressure transmitter | |
| Measurement Range | -100kPa…0kPa ~10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
Q: What are the key features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are known for their high precision, excellent performance, and durability. We also offer customization options to meet specific needs.
Q: Can I request special specifications for the transmitters?
A: Yes, our team of engineers can customize our products to meet your unique requirements. We offer both OEM and ODM services.
Q: What is the typical delivery period?
A: For standard models, the delivery period is usually 5-8 working days. However, custom-made products may have varying delivery times.
Q: How are your products priced? Do you offer discounts?
A: Our products are competitively priced, and we do offer discounts for bulk orders or long-term partnerships.
Q: What is the warranty for your products? And what about after-sales service?
A: Our products come with a warranty of 24 months after shipment. Our after-sales service team is available to respond to inquiries within 24 hours, and we also offer remote instruction via PC network when needed.
