| Model: | BP93420-I | Supply: | 10-36VDC/5VDC |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc | Thread: | G1/2 G1/4 Or Customized |
| Compensation Temperature: | 0-70℃ | Range: | 10kpa~100Mpa |
| Housing Material: | 304S.S 316L S.S | Accuracy: | ≤0.5%F.S |
| Media Compatibility: | Air, Water, Oil | Media Temperature: | -20℃~85℃ |
| High Light: | DIN Industrial Pressure Sensor,Industrial Pressure Level Transducer 20mA,Multifunctional Industrial Pressure Level Sensor |
||

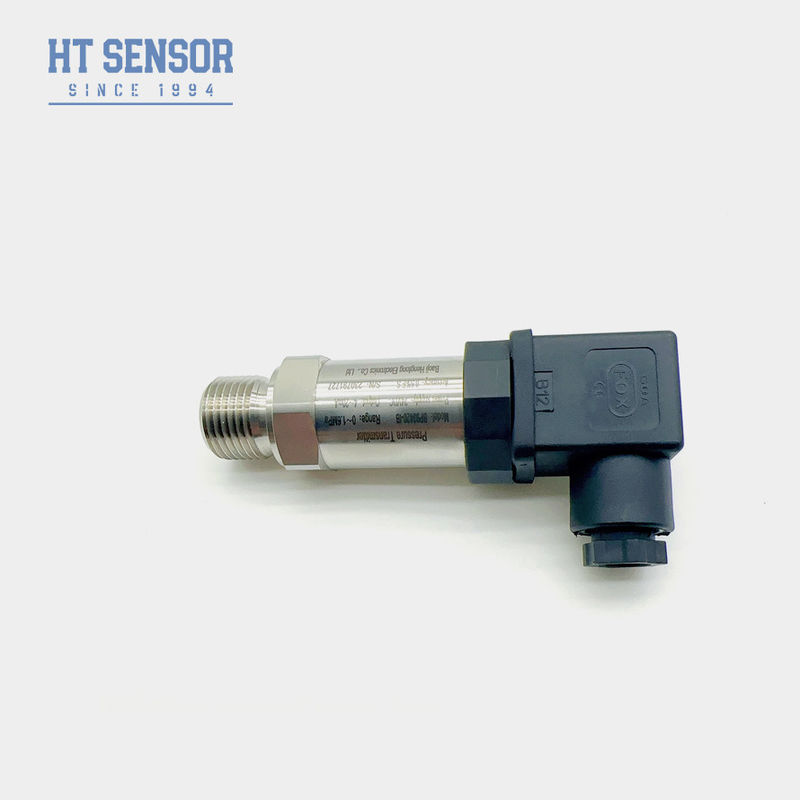

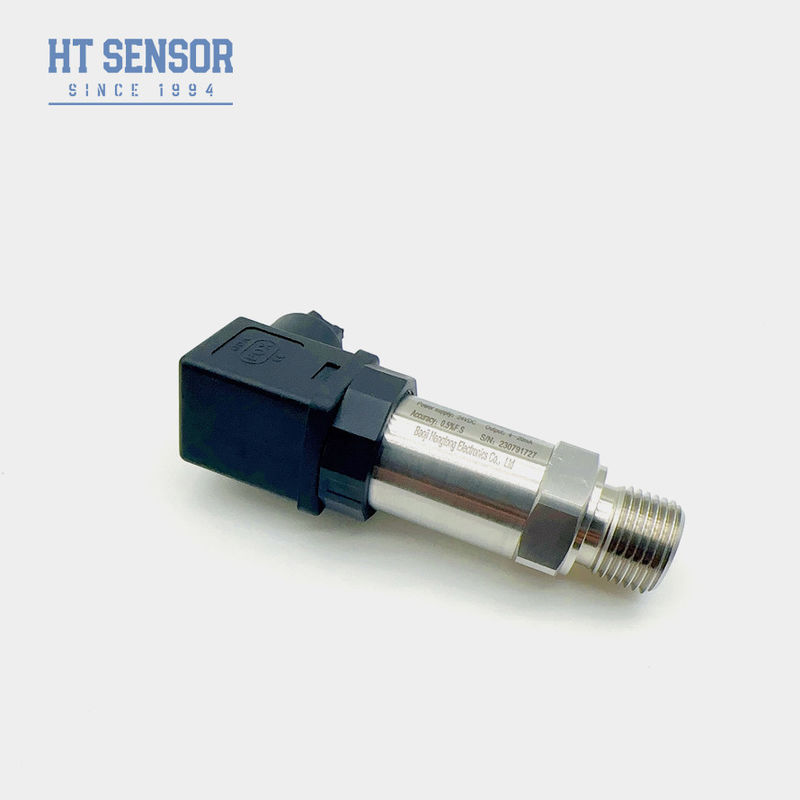

HTsensor 4-20mA Industrial Pressure Sensor Level Transducer with Big DIN
BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transmitter:
BP93420 - IB diffusion industrial silicon pressure sensor is a kind of multifunctional instrument, is famous for its accuracy and reliability.Its advanced technology to ensure the accurate pressure measurements in a wide range of applications.
Product Features of industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, various forms of pressure interface
2. Compact and lightweight design
3. High precision, all stainless steel structure
Applications of industrial pressure sensor transmitter:
1. Non-corrosive gas and liquid pressure measurement is compatible with stainless steel, the diaphragm is made of 316L stainless steel.
2. Applications in the Marine and aviation industries
3. Used in industrial field processes, such as petroleum, chemical, metallurgy, power generation and hydrology
4. For hydraulic and pneumatic control systems
| Performance Parameters : | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
Odering Tips
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product (stainless steel 304 or 316L).
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. Cables are not included by default. Please mark the cable on the contract, if there is no special explanation, polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0～0.01．．．100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
