| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | ,ISO9001 |
| Model Number: | BPHT3351 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | HT3351 | Power Supply: | 15~42VDC |
|---|---|---|---|
| Weight: | 3.6kg | Stability: | +-0.2%F.S/Year |
| Pressure Type: | Differential Pressure | Specification: | 500pa~2000kpa |
| Type: | Capacitive Differential Pressure Sensor | Measuring Medium: | Gas And Liquid |
| Accuracy Grade: | 0.075% | IP Rating: | IP65 |
| High Light: | 20mA Differential Pressure Transmitter,Differential Pressure Transducer,Capacitive Indicator Sensor Differential Pressure Transmitter |
||

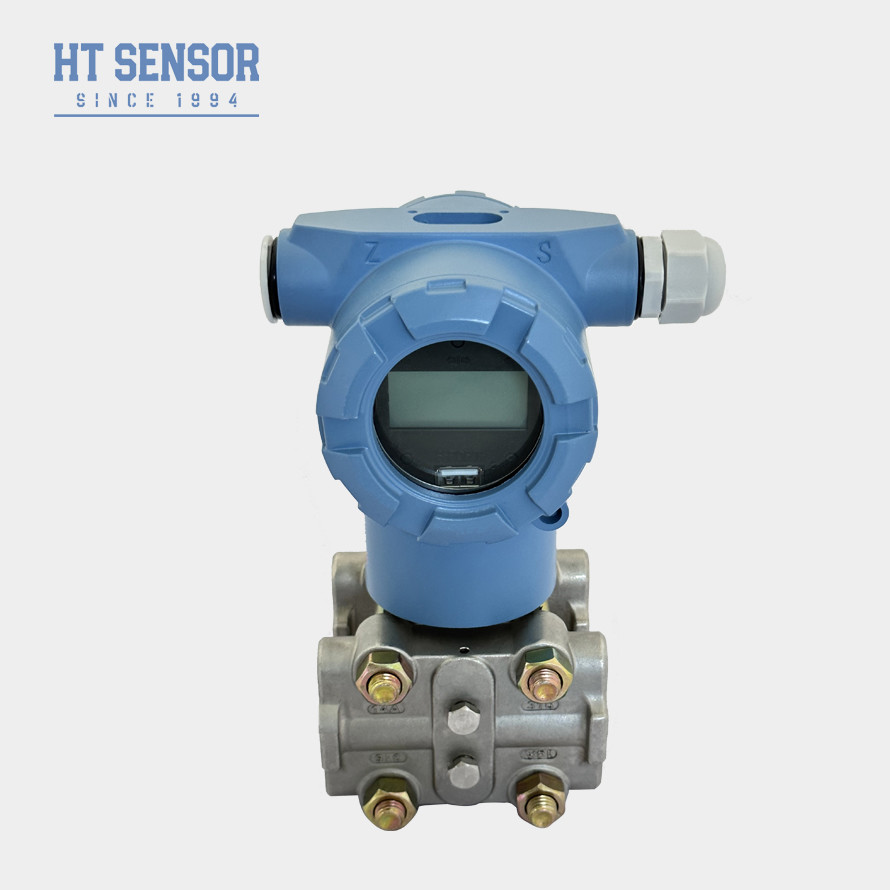

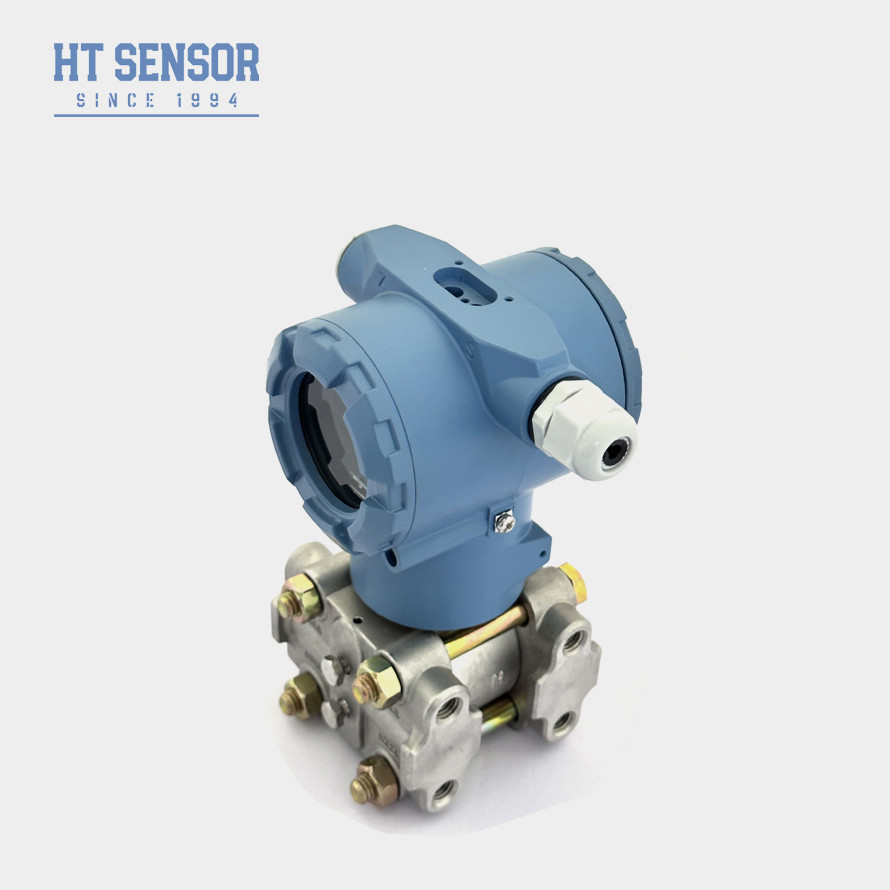

Introduction of capacitive differential pressure transmitter :
HT3351 capacitive differential pressure sensor transmitter, the pressure difference or pressure difference to change the capacitance value of the sensor, the resulting analog signal through AD conversion, into a digital signal sent to the microprocessor.After the microprocessor calculation and processing, the output digital signal is sent to the current control circuit after digital-to-analog conversion, and converted into 4 ~ 20mA analog current signal output. For small range liquid, gas measurement.
Product Features of capacitive differential pressure transmitter:
1. The transmitter adopts stainless steel structure design, compact structure, easy installation.
2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
3. The electrical interface can choose plug-in or directly connected.
Applications of capacitive differential pressure transmitter:
1. Suitable for the differential pressure measurement of various gases or liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries.
2. Pipe and chamber pressure measurement.
Range:
| Range code | Range | Measuring range | |
| Min. | Max. | ||
| 4 | 0.374KPa | 37.4KPa | -37.4～37.4KPa |
| 5 | 1.868KPa | 186.8KPa | -186.8～186.8KPa |
| 6 | 6.9KPa | 690KPa | -690～690KPa |
| 7 | 20.68KPa | 2068KPa | -2068～2068KPa |
| Output | Analog output: two –wire 4-20mADC |
| Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART | |
| Power supply | supply voltage 12.5-45VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Display | 4 digital display,5 digit LCD display, pointer type. |
| Explosion-proof | ExiaIICT5;explosion suppression type |
| Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
| Temperature | ambient temperature -40-85℃(When choose LCD : -20-70℃) |
| Medium temperature | -40～104℃ |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure)～31.2MPa(gauge pressure) |
| Relative humidity | 5～98%RH |
| Run-up time | less than 5 sec. |
| Capability change | Less than 0.16cm3 |
| Damp adjust | 0.20～25 second |
| Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Configuration protection | To avoid the datas are modified random, can utilize software or protect switch lock the record data |
Working Principle of capacitive differential pressure transmitter:
As shown in the working principle, the external pressure or pressure difference will cause a certain change in the sensor capacitance value. Through the digital signal conversion, it is converted into a frequency signal and sent to the microprocessor.After the microprocessor calculation, the current control signal is output to the current control circuit and converted into 4-20mA analog currentOutput.At the same time, the microprocessor is responsible for interaction and other actions (display and setting). The communication port for digital communication needs our company's special port.The HART module will implement the transmitter HART communication.
Measurement Ways of capacitive differential pressure transmitter:
Fluid Level Measurement:
In the measurement of fluid flow, the pressure taps should be breached on the side of the process conduit to avoid the sediment of dregs. Meanwhile, the transmitter should be mounted beside or under the pressure taps, to prevent the air bubbles from being discharged into the process conduit.
