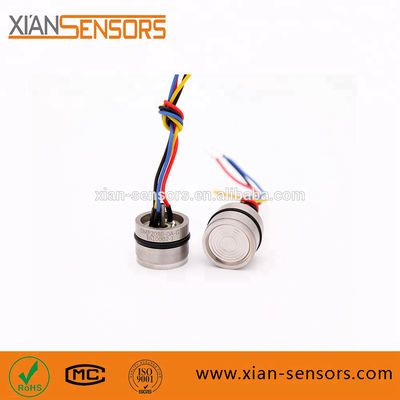

| Product Name: | Metal Film Isolation Pressure Sensor | Application: | Industrial Process Control |
|---|---|---|---|
| Material: | SS 316L | Measuring Range: | -100kPa...0kPa~20kPa...70MPa |
| Volume: | 19mm*15mm | Port: | Xi'an |
| High Light: | hydraulic pressure transducer,underwater pressure sensor |
||
Features
Application
Outline construction (unit: mm)
Range<20MPa Range≥20MPa
Specification
|
Construction condition |
|
|
Diaphragm material |
SS 316L |
|
Housing material |
SS |
|
Pin Wire |
Kovar/100mm silicone rubber wire |
|
Back pressure tube |
SS 316L (gauge and negative pressure only) |
|
Seal ring |
nitrile rubber |
|
Electrical Condition |
|
|
Power supply |
≤2.0mA DC |
|
Impedance input |
2.5kΩ ~ 5 kΩ |
|
Impedance output |
2.5kΩ ~ 5 kΩ |
|
Response |
(10%~90%):<1ms |
|
Insulation resistance |
100MΩ,100V DC |
|
Overpressure |
2times FS, ( 0C/0B/0A/02 5times FS) |
|
Environment Condition |
|
|
Media applicability |
fluid which has no corrosion on stainless steel and nitrile rubber |
|
Shock |
No change at 10gRMS,(20~2000)Hz |
|
Impact |
100g,11ms |
|
Position |
Deviate 90° from any direction, zero change≤±0.05%FS |
|
Basic Condition |
|
|
Environment temperature |
(25±1)℃ |
|
Humidity |
(50%±10%)RH |
|
Atmospheric pressure |
(86~106) kPa |
|
Power supply |
(1.5±0.0015)mA DC |
Parameter
|
Item |
Min. |
Typ. |
Max. |
Units |
|
Linearity |
±0.1 |
±0.25 |
%FS,BFSL |
|
|
Repeatability |
±0.05 |
±0.075 |
%FS |
|
|
Hysteresis |
±0.05 |
±0.075 |
%FS |
|
|
Zero output |
±2.0 |
mV DC |
||
|
FS output |
45 |
100 |
mV DC |
|
|
Compensated temp. range |
0~70 |
℃ |
||
|
Working temp. range |
-40~125 |
℃ |
||
|
Storage temp. range |
-55~150 |
℃ |
||
|
Zero temp. error |
±0.75 |
±1.0 |
%FS @ 25℃ |
|
|
Full temp. error |
±0.75 |
±1.0 |
%FS @ 25℃ |
|
|
Long term stability error |
|
±0.2 |
|
%FS/year |
|
Note:1. The above performance indicators are tested under the benchmark conditions 2. The temperature range for temperature drift test is the compensation temperature range. |
||||
