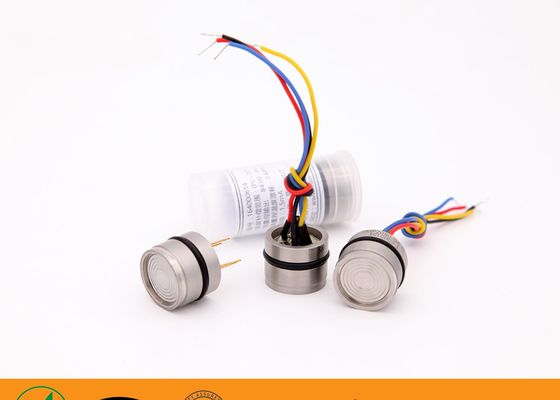

SMP2081 Pressure Sensor with temperature
Product Description:
Features:
n Range: -100kPa…0kPa~20kPa…70MPa
n Temperature and pressure dual output
n Imported chip, laser trim
n General size: Φ19mm×15mm
Applications:
n Industrial Process Control
n Hydraulic system
n Gas, liquid and vapor pressure detection
n Hydrological monitoring
Outline structure(unit: mm):
Below 20MPa Above 20MPa
Specification:
|
Construction Condition |
|
|
Diaphragm material |
SS 316L |
|
Housing material |
SS 316L |
|
Pin Wire |
Kovar/100mm silicone rubber wire |
|
Back pressure tube |
SS 316L (gauge and negative pressure only) |
|
Seal ring |
Nitrile rubber |
|
Electrical Condition |
|
|
Power supply |
1.5mADC |
|
Impedance input |
2.5kΩ~5kΩ |
|
Impedance output |
2.5kΩ~5kΩ |
|
Response |
(10%~90%):<1ms |
|
Insulation resistance |
100MΩ,100V DC |
|
Overpressure |
2 times FS |
|
Environmental Condition |
|
|
Media applicability |
Fluid which has no corrosion on stainless steel and nitrile rubber |
|
Shock |
No change at 10gRMS,(20~2000)Hz |
|
Impact |
100g,11ms |
|
Position |
Deviate 90° from any direction, zero change≤±0.05%FS |
|
Basic Condition |
|
|
Environment temperature |
(25±1)℃ |
|
Humidity |
(50%±10%)RH |
|
Atmospheric pressure |
(86~106) kPa |
|
Power supply |
(1.5±0.0015)mA DC |
Installation recommended(unit::mm):
Electrical connection:
|
Pin |
Electrical definition |
Wire color |
|
4 |
+OUT |
Red |
|
10 |
-OUT |
Yellow |
|
11 |
-IN |
Yellow |
|
12 |
+IN |
Black |
|
13 |
Temperature sensing lead 1 |
White |
|
14 |
Temperature sensing lead 2 |
White |
