| Digital Output: | IIC Protocol | Accuracy: | 0.5% Or 0.25% |
|---|---|---|---|
| Supply: | 1.8V-3.6VDc | Working Current: | Not Less Than 0.3mA |
| High Light: | i2c differential pressure sensor,pressure sensor i2c |
||

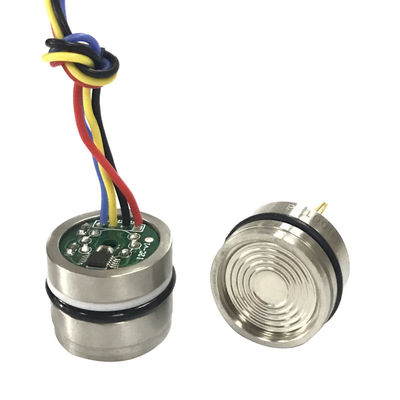

SMP3011 I2C output pressure sensor
SMP3011 uses metal membrane to isolate oil-filled pressure sensor core. The product has built-in temperature compensation sensor, which can compensate the zero error and temperature drift of sensor signal, sensitivity error, temperature drift and nonlinearity error in real time, and output pressure and temperature data in accordance with the I2C interface protocol.The product is small in size, simple in installation, high in cost performance, accurate and reliable in pressure measurement, and greatly enhances the on-site adaptability of the sensor.
Features
Ranges: -100kPa…0～20kPa┅70MPa
24-bit High precision analog to digital conversion
Real-time compensation
Isolated structure for multiple media
Out put:15%~85%
I2C Bus protoco
Applications
Low power, smart device
Process control
Construction machinery
Medicine, food processing, packaging equipment
Outline structure (unit: mm)
Parameters
| Electrical characteristics | |
| Range | 0～100kPa……0～60MPa |
| Overload | 1.5 times FS |
| Accuracy | ±0.1%F.S. BFSL@25℃ |
| Total error | ±1.0%F.S. (Includes calibration error and temperature drift effects) |
| Input voltage | 1.8V～3.6VDC |
| Output | 15%~85% (I 2 C Bus protocol) |
| Working current | ≤0.3mA,Standby current is about 0.1μA |
| Operating temperature | -10℃～80℃ |
| Storage temperature | -40℃～125℃ |
| Long-term stability | ±0.2%FS/year |
Output conversion:
| Percentage output(%) | Digital quantity (decimal) | Digital quantity (hexadecimal) |
| 0 | 0 | 0x000000 |
| 10 | 1677722 | 0x19999A |
| 15 | 2516582 | 0x266666 |
| 85 | 14260633 | 0xD99999 |
| 90 | 15099494 | 0xE66666 |
| 100 | 16777215 | 0xFFFFFF |
CE certificate
