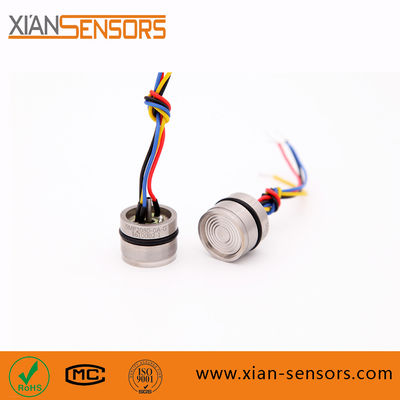

| Material: | SS 316L | Range: | -100kPa…0kPa～20kPa…70MPa |
|---|---|---|---|
| Size: | φ19mm×15mm | Power Supply: | 1.5V |
| Signal Output: | MV |
a●Application
Range<20MPa Range≥20MPa
●SSpecification
| Construction condition | |
| Diaphragm material | SS 316L |
| Housing material | SS 316L |
| Pin Wire | Kovar/100mm silicone rubber wire |
| Back pressure tube | SS 316L (gauge and negative pressure only) |
| Seal ring | nitrile rubber |
| Electrical Condition | |
| Power supply | ≤2.0 mA DC |
| Impedance input | 2.5kΩ ~ 5 kΩ |
| Impedance output | 2.5kΩ ~ 5 kΩ |
| Response | (10%～90%):<1ms |
| Insulation resistance | 100MΩ,100V DC |
| Overpressure | 2times FS, ( 0C/0B/0A/02 5times FS) |
| Environment Condition | |
| Media applicability | fluid which has no corrosion on stainless steel and nitrile rubber |
| Shock | No change at 10gRMS,(20～2000)Hz |
| Impact | 100g,11ms |
| Position | Deviate 90° from any direction, zero change≤±0.05%FS |
| Basic Condition | |
| Environment temperature | (25±1)℃ |
| Humidity | (50%±10%)RH |
| Atmospheric pressure | (86~106) kPa |
| Power supply | (1.5±0.0015)mA DC |
| Item | Min. | Typ. | Max. | Units |
| Linearity | ±0.1 | ±0.25 | %FS,BFSL | |
| Repeatability | ±0.05 | ±0.075 | %FS | |
| Hysteresis | ±0.05 | ±0.075 | %FS | |
| Zero output | ±2.0 | mV DC | ||
| FS output | 45 | 100 | mV DC | |
| Compensated temp. range | 0～70 | ℃ | ||
| Working temp. range | -40～125 | ℃ | ||
| Storage temp. range | -55～150 | ℃ | ||
| Zero temp. error | ±0.75 | ±1.0 | %FS @ 25℃ | |
| Full temp. error | ±0.75 | ±1.0 | %FS @ 25℃ | |
| Long term stability error | ±0.2 | %FS/year | ||
|
Note:1. The above performance indicators are tested under the benchmark conditions 2. The temperature range for temperature drift test is the compensation temperature range |
||||
