Place of Origin: | Baoji,China |
---|---|
Brand Name: | HT SENSOR |
Certification: | CE,RoHs,ISO9001 |
Model Number: | BP155 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Standard Export Package |
Delivery Time: | 5-8 work days |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 5000PCS/Month |
Model NO.: | BP155 | Power: | 5VDC |
---|---|---|---|
Output: | 0.5-4.5VDC | Long-Term Stability: | 0.2f.S/Year |
Specification: | Silicon Pressure Sensor | HS Code: | 9026201090 |
Type: | Normal Pressure Transmitter Sensor | Measuring Medium: | Gas Liquid Air |
Pressure Range: | 0kpa~10kpa...20MPa | IP Rating: | IP65 |
High Light: | BP155 High Precision Pressure Transmitter,High Precision Pressure Transmitter 4mA,20mA Compact Water Air Pressure Sensor |

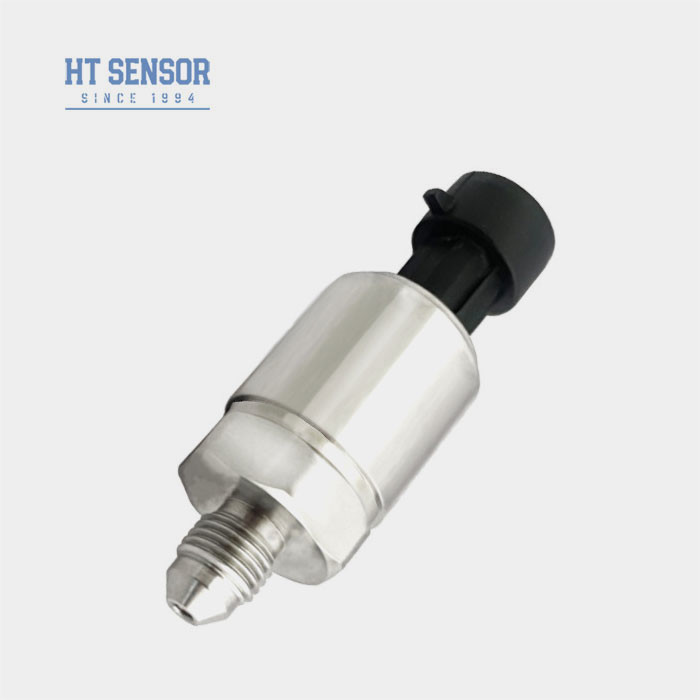

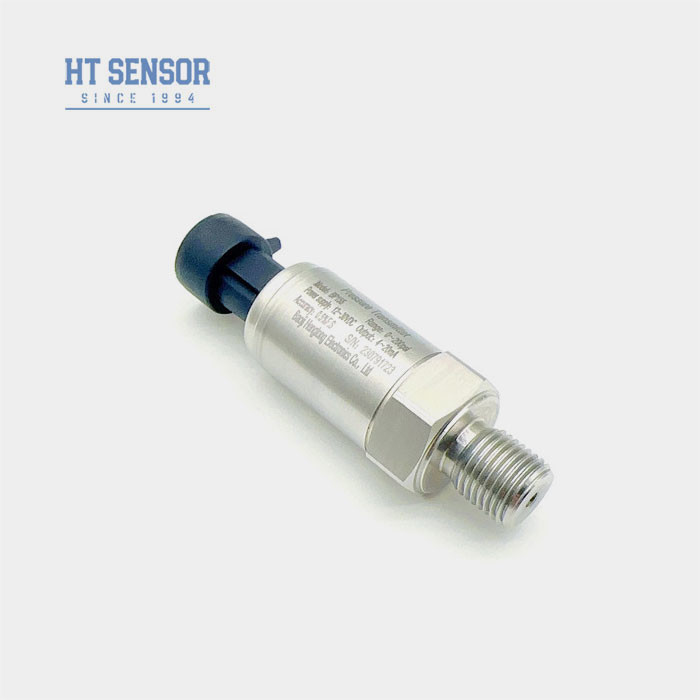

BP155 Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP155 series pressure transmitter sensor is compact and lightweight design allows for easy to install and save space solutions. It offers compatibility with various process connectors and electrical connections, ensuring easy integration. The diffused silicon pressure sensor is designed for easy calibration and ensures accurate measurements. This pressure sensor is widely used in the automotive industry, including tire pressure monitoring systems.
Performance Parameters of pressure transmitter sensor | |
Measurement Range | 0kPa ~ 10kPa…20MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | ≤0.1%FS |
Hysteresis | ≤0.1%FS |
Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Frequency Response | 2.4Khz |
Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Ex db IIC T6 Gb |
Protection Rating | IP65 |
O-Ring Seal | Fluoro rubber |
Weight | ~0.25kg |
Product Features of pressure transmitter sensor:
1. Wide measuring range.
2. IP65 protection grade stainless steel structure
3. High precision, all stainless steel structure
Applications of pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC |
Selection Examples |
Ordering tips |
Order Guide | |||||||||
BP15X | Analog Pressure Transmitter | ||||||||
Code | Outline Construction | ||||||||
5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
(0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
Code | Power Supply | ||||||||
D1 | 24VDC | ||||||||
D2 | 5VDC | ||||||||
D3 | Other | ||||||||
Code | Output Signal | ||||||||
S1 | 4~20mADC | S5 | 0~20mADC | ||||||
S2 | 1~5VDC | S6 | 0~10VDC | ||||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
S4 | 0~10mADC | ||||||||
Code | Pressure Connection | ||||||||
J1 | M20×1.5 | ||||||||
J2 | G1/2 | ||||||||
J3 | G1/4 | ||||||||
J4 | 7/16-20UNF | ||||||||
J5 | Others(¢50.4 Flange) | ||||||||
Code | Electrical Connection | ||||||||
B1 | Hirschmann | ||||||||
B2 | PG7 | ||||||||
B3 | Cable Sealed Outlet 1.5 meters | ||||||||
B4 | Other | ||||||||
Code | Pressure Type | ||||||||
G | Gauge Pressure | ||||||||
A | Absolute Pressure | ||||||||
S | Sealed Reference Pressure |
