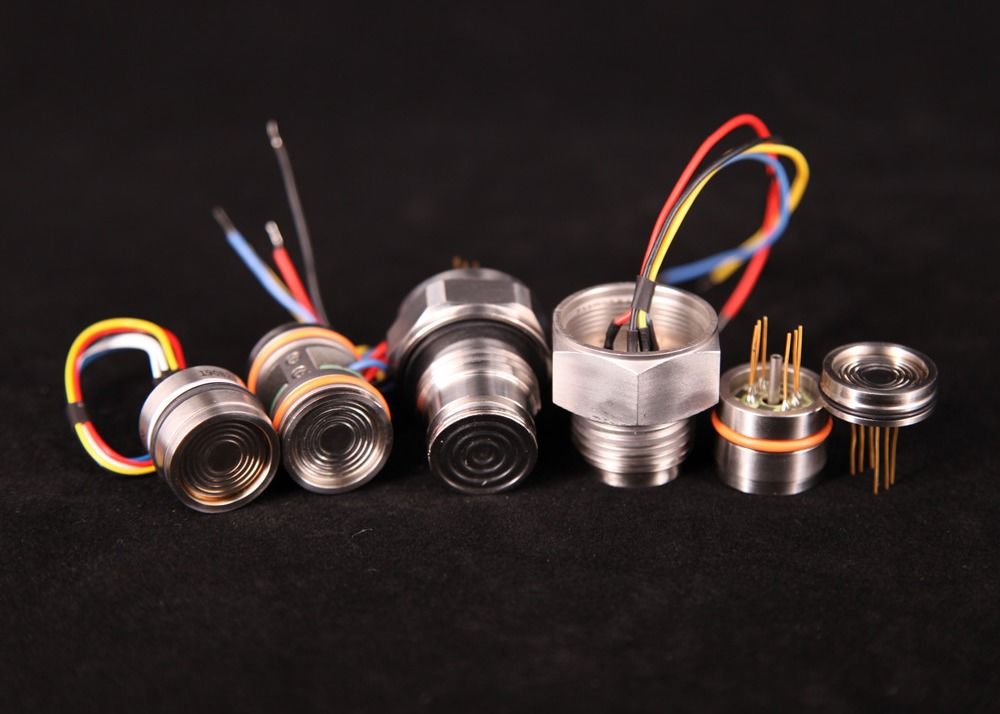

Product Name: Flush Film Isolation Pressure Sensor Range: -100kPa...0kPa~20kPa...35MPa
Type: Gauge Pressure;Absolute Pressure;Sealed Gauge Pressure Application: Hydraulic System; Process Control
Material: SS 316L Temperature Compensation: 0℃~70℃
Port: Xi'an
High Light:

usb pressure transducer


thin film pressure transducer

Product Description


The product uses flush membrane thread installation structure, easy to clean, high reliability, suitable for food, hygiene or viscous medium pressure measurement.



n Range:  -100kPa0kPa~20kPa35MPa

n Wide temperature compensation 0~70

n 2 times overload pressure

n SS 316L



n Food, beverage, health industry

n Process control

n Viscous media pressure measurement


Outline Construction (Unit: mm)

 Flush Diaphragm Thin Film Pressure Transducer 0






Structural Condition

Rear thread

M24*1 Internal thread

Housing/Diaphragm material

SS 316L

Pin Wire

Gold-plated karaf/100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

Nitrile rubber

Electrical Condition

Power supply


Impedance input


Impedance output




Insulation resistance

100MΩ,100V DC


2times FS, 5times for 0B/0A/02

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber


No change at 10gRMS,(20~2000)Hz


100g, 11ms

Location effects

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature




Atmospheric pressure

(86~106) KPa

Power supply

(1.5±0.0015)mA  DC

All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.




Electrical connection


 Flush Diaphragm Thin Film Pressure Transducer 1


Electric connection

Wire color
