Product Details:
Payment & Shipping Terms:
|

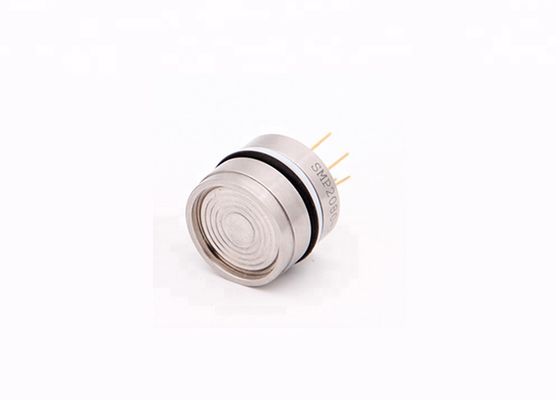

| Product Name: | Temperature And Pressure Dual Output Pressure Sensor | Material: | SS 316L |
|---|---|---|---|
| Measuring Range: | -100kPa...0kPa~20kPa...70MPa | Volume: | 19mm*15mm |
| Port: | Xi'an | ||
| High Light: | thin pressure sensor,thin film pressure transducer |
||
Features
n Range: -100kPa…0kPa~20kPa…70MPa
n Temperature and pressure dual output
n Imported chip, laser trim
n General size: Φ19mm×15mm
Application
n Industrial Process Control
n Hydraulic system
n Gas, liquid and vapor pressure detection
n Hydrological monitoring
Outline construction (unit: mm)
Range<20MPa Range≥20MPa
Parameter
|
Construction Condition |
|
|
Diaphragm material |
SS 316L |
|
Housing material |
SS 316L |
|
Pin Wire |
Kovar/100mm silicone rubber wire |
|
Back pressure tube |
SS 316L (gauge and negative pressure only) |
|
Seal ring |
Nitrile rubber |
|
Electrical Condition |
|
|
Power supply |
1.5mADC |
|
Impedance input |
2.5kΩ~5kΩ |
|
Impedance output |
2.5kΩ~5kΩ |
|
Response |
(10%~90%):<1ms |
|
Insulation resistance |
100MΩ,100V DC |
|
Overpressure |
2 times FS |
|
Environmental Condition |
|
|
Media applicability |
Fluid which has no corrosion on stainless steel and nitrile rubber |
|
Shock |
No change at 10gRMS,(20~2000)Hz |
|
Impact |
100g,11ms |
|
Position |
Deviate 90° from any direction, zero change≤±0.05%FS |
|
Basic Condition |
|
|
Environment temperature |
(25±1)℃ |
|
Humidity |
(50%±10%)RH |
|
Atmospheric pressure |
(86~106) kPa |
|
Power supply |
(1.5±0.0015)mA DC |
Company Profile of Xi’an Sensors Co., Ltd
Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
Q1: Are you manufacturer or trading company?
A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!
Q2: Do you have any certification?
A: Yes, we have RoHS, ISO 2015, we can offer certificates.
Q3: Can we use our logo on the products?
A: Yes. We can provide OEM products for you.
Q4: What is the warranty of your products?
A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.
Q5: How to place an order?
A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.
Q6: What is your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.
Q7:Could I get samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
