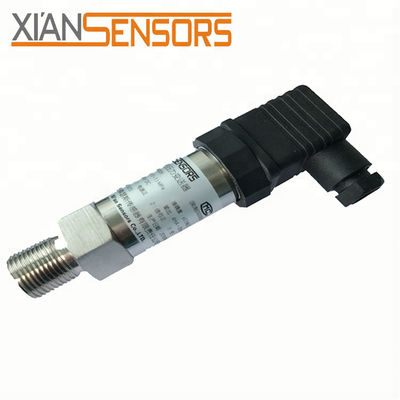

| Product Name: | SMP4009 Piezo-resistive Pressure Transmitter | Pressure Type: | Gauge Pressure Absolute Pressure Sealed Pressure |
|---|---|---|---|
| Pressure Range: | -0.1MPa...0~0.01MPa...100MPa | Accuracy: | ±0.5%FS |
| Power Supply: | 9~30V DC (current Model), 12~30V DC (voltage Type) | Output Signal: | 4mA~20mADC(2-wire), 0/1V~5VDC(3-wire) |
| Port: | Xi'an | ||
| High Light: | gas pressure transmitter,water pressure transmitter |
||
Features
n Reliable, safe and easy to use
n Short circuit protection and reverse polarity protection
n measurable gauge pressure, absolute pressure and seal reference pressure
Applications
n Petroleum, chemical industry, electric power
n Urban water supply, hydrologic exploration
n Hydraulic industry
Specification
|
Pressure parameter |
|||
|
Range |
-0.1MPa…0MPa~0.01 M…100MPa |
||
|
Over load |
2 times@ FS 110MPa(take the small value) |
||
|
Pressure type |
gauge, absolute or sealed gauge |
||
|
Electric parameter |
|||
|
Output type |
Current type |
Voltage type |
|
|
Power supply |
9~30V DC |
12~30V DC |
|
|
Output signal |
4mA~20mA DC(2 wire) |
0/1V~5/10V DC (3 wire) |
|
|
Load resistance |
≤(U-9)/0.02 |
≥10k |
|
|
Insulation resistance |
100MΩ,100V DC |
||
|
Construction parameter |
|||
|
Housing |
SS |
||
|
Sensor |
SS 316L |
||
|
Seal ring |
Viton |
||
|
Cable |
∅7.5mm special cable for Polyethylene |
||
|
Protection class |
IP65(plug) |
IP68(cable) |
|
|
Ambient parameter |
|||
|
Media applicability |
Fluid which has no corrosion to SS 316L and Viton |
||
|
Compensation temperature |
-10℃~+80℃ |
||
|
Operating temperature |
-30℃~+80℃ |
||
|
Storage temperature |
-40℃~125℃ |
||
|
Performance parameter |
|||
|
Accuracy |
±0.25%FS(Typical) |
±0.5%FS(Max.) |
|
|
Zero temperature coefficient |
0.03%FS/℃(≤100kPa); 0.02%FS/℃(>100kPa) |
||
|
Full temperature coefficient |
0.03%FS/℃(≤100kPa); 0.02%FS/℃(>100kPa) |
||
|
Long term stability |
±0.3%FS/ year(Max.) |
||
Outline dimension:
Hirschman Cable
Electric Connection:
|
Pin |
2-wire |
3-wire |
|
1 |
(+V) |
(+V) |
|
2 |
(0V/+OUT) |
(GND) |
|
3 |
Null |
(+OUT) |
|
Pin |
2-wire |
3-wire |
|
1 |
(+V) |
(+V) |
|
2 |
(0V/+OUT) |
(GND) |
|
3 |
Null |
(+OUT) |
Electric Connection for transmitter output 2-wire 4~20mAD
Electric Connection for transmitter 3-wire 0/1~5VDC
.
Company Profile of Xi’an Sensors Co., Ltd
Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
