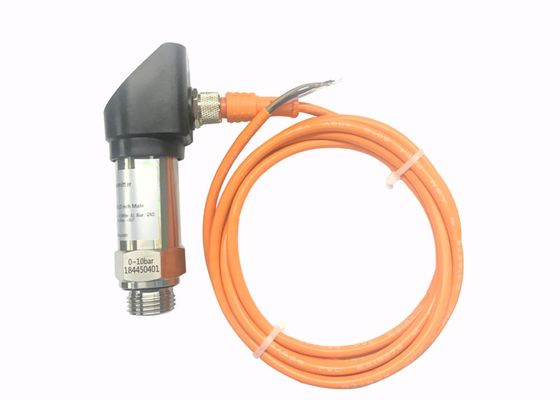

The SMP5521 is a high-performance silicon pressure sensor that measures sensor technology, measurement display and switch control technology. The product realizes visual processing of process pressure and switch contact status through analog output, switch output and digital display head.
This product offers multiple output configurations for different applications, with on-site set alarm points and switch delay settings. After rigorous testing and aging screening, the products have stable and reliable performance and high flexibility.
Features:
n Wide range: -0.1..0~0.01...00MPa
n All stainless steel structure, various pressure interfaces
n 4-digit LED digital display
n Various forms of output signals
n Intelligent digital display, page friendly
n High precision, high stability, high reliability
n Reverse polarity protection and transient over-current and overvoltage protection
Applications:
n Industrial process control
n Petrochemical, water conservancy, hydrology, hydropower industry, etc.
n Equipment supporting, ship, mechanical hydraulic system
Outline structure:(Unit: mm)
Parameters:
|
Pressure parameter |
||||
|
Range |
-0.1…0~0.01…100MPa |
|||
|
Overload |
2times FS or 110Mpa (Take the minimum) |
|||
|
Pressure type |
gauge, absolute or sealed gauge |
|||
|
Electrical parameters |
||||
|
Power supply |
18V~30V DC |
|||
|
Signal output |
4mA~20mADC/0~5VDC/0~10VDC |
|||
|
Relay:NO/NC |
||||
|
Transistor:NPN/PNP |
||||
|
Construction parameter |
||||
|
Housing |
SS 304 |
|||
|
Sensor |
SS 316L |
|||
|
Seal ring |
Viton |
|||
|
Electrical connections |
M12*1 5 pin connector |
|||
|
Protection Class |
IP65(Plug connection) |
|||
|
Ambient parameter |
||||
|
Media suitability |
Fluid which has no corrosion to SS 316L and Viton |
|||
|
Compensation temperature |
-10℃~+80℃ |
|||
|
Operating temperature |
-30℃~+80℃ |
|||
|
Storage temperature |
-40℃~125℃ |
|||
|
Performance |
||||
|
Accuracy |
±0.1%FS(Min.) |
±0.25 FS (Typical) |
±0.5%FS(Max.) |
|
|
TCZ |
±0.03%FS/℃ (≤100kPa) |
±0.02%FS/℃ (>100kPa) |
||
|
TCS |
±0.03%FS/℃ (≤100kPa) |
±0.02%FS/℃ (>100kPa) |
||
|
Long term stability |
±0.3%FS/year(Max.) |
|||
Electrical Connection
|
Pin |
Color |
Definition |
|
1 |
Brown |
Power: +V |
|
2 |
White |
A1 Alarm |
|
3 |
Blue |
GND |
|
4 |
Black |
A2 Alarm |
|
5 |
Gray |
Signal: +Out |
