Product Details:
Payment & Shipping Terms:
|
| Usage: | PRESSURE SENSOR | Theory: | Piezoresistive Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Measuring Range: | -100Kpa.......0Kpa.........70MPa |
| Output Signal: | 133+/-33 MV DC | Power Supply: | <2mA DC |
| Certificate: | CE ISO9000 | Material: | Stainless Steel 316L |
| Application: | Industrial Automation | Warranty: | 1 Year |
| Shipping Method: | DHL TNT UPS FedEx | ||
| High Light: | piezoresistive pressure transducer,piezo resistive sensor |
||

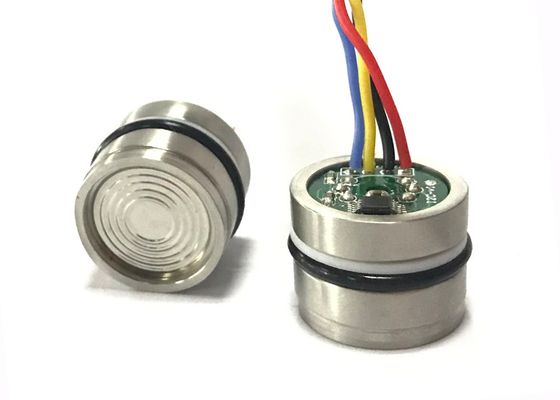

Features
n Range: -100kPa…0kPa~20kPa…70MPa
n Temperature and pressure dual output
n Imported chip, laser trim
n General size: Φ19mm×15mm
Application
n Industrial Process Control
n Hydraulic system
n Gas, liquid and vapor pressure detection
n Hydrological monitoring
Outline construction (unit: mm)
Range<20MPa Range≥20MPa
Specification:
|
Construction condition |
|
|
Diaphragm material |
SS 316L |
|
Housing material |
SS 316L |
|
Pin Wire |
Kovar/100mm silicone rubber wire |
|
Back pressure tube |
SS 316L (gauge and negative pressure only) |
|
Seal ring |
nitrile rubber |
|
Electrical Condition |
|
|
Power supply |
≤2.0 mA DC |
|
Impedance input |
2.5kΩ ~ 5 kΩ |
|
Impedance output |
2.5kΩ ~ 5 kΩ |
|
Response |
(10%~90%):<1ms |
|
Insulation resistance |
100MΩ,100V DC |
|
Overpressure |
2times FS, ( 0C/0B/0A/02 5times FS) |
|
Environment Condition |
|
|
Media applicability |
fluid which has no corrosion on stainless steel and nitrile rubber |
|
Shock |
No change at 10gRMS,(20~2000)Hz |
|
Impact |
100g,11ms |
|
Position |
Deviate 90° from any direction, zero change≤±0.05%FS |
|
Basic Condition |
|
|
Environment temperature |
(25±1)℃ |
|
Humidity |
(50%±10%)RH |
|
Atmospheric pressure |
(86~106) kPa |
|
Power supply |
(1.5±0.0015)mA DC |
Company Profile of Xi’an Sensors Co., Ltd
Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
