Product Description:

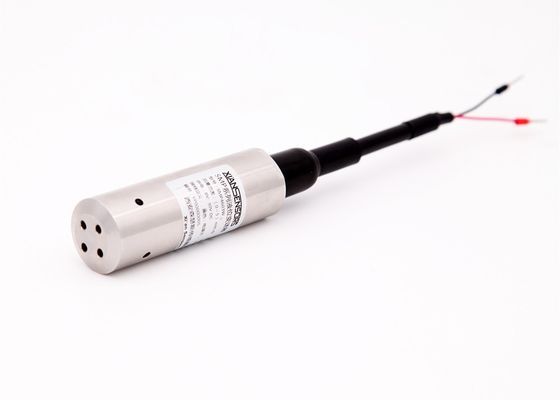

SMP4630 series of intelligent input level transmitter is a new generation of intelligent products which can accurately measure and compensate the pressure and temperature characteristics of the sensor by analysis and calculation of the digital signal, and transmit the liquid level signal through the digital interface.
The product has been verified for a long period of time and the data are running normally and reliably. It can resist the electromagnetic interference signals of most occasions. The products are designed and developed according to the requirements of the national marine products, explosion-proof, GJB150, GB / T2423, JJG860 and other standards or specifications. And also we do the production and inspection according to the ISO 9001: 2015 quality management system requirements.
Features:
n SS 316L, IP68.
n Probe with anti-sedimentation, anti-sharp objects stabbed, anti-marine biological growth.
n RS485 output
n Full temperature correction compensation, the highest design accuracy: 0.1% FS
n Meet EMC environmental requirements
Applications:
n Ship transport, water conservancy and hydrology, pool tank level measurement
n Marine monitoring, river, groundwater level monitoring
n Urban water supply, urban road sewage monitoring
n Petrochemical, power and other industries liquid depth monitoring
Outline structure:(Unit: mm)
Specification:
|
Pressure parameter |
||
|
Range |
0 mH2O~1 mH2O…200 mH2O |
|
|
Overload |
2 times FS,5 times FS when less than 5 mmH2O |
|
|
Electrical parameter |
||
|
Power supply |
10V~28V DC |
|
|
Signal output |
RS485 Modbus |
|
|
load capacity |
RS485 bus can be mounted with 99 transmitters |
|
|
Insulation resistance |
100MΩ,50V DC |
|
|
Structural parameter
|
||
|
Housing |
SS |
|
|
Sensor |
SS 316L |
|
|
Sealed-ring |
Viton |
|
|
Cable |
∅7.5mm Polyethylene special cable |
|
|
Protection class |
IP68 |
|
|
Ambient parameter |
||
|
Media applicability |
Fluid which has no corrosion to Stainless steel 316L and viton |
|
|
Compensation temperature |
-10℃~80℃ |
|
|
medium temperature
|
-20℃~85℃ |
|
|
Storage temperature |
-40℃~125℃ |
|
|
Performance index |
||
|
Accuracy |
±0.1%FS(Min.) |
±0.5%FS(MaX.) |
|
Zero temperature coefficient |
±0.05%FS/℃(≤5 mH2O) |
±0.02%FS/℃(>5 mH2O) |
|
Full temperature coefficient |
±0.05%FS/℃(≤5 mH2O) |
±0.05%FS/℃(>5 mH2O) |
|
Long term stability |
±0.3%FS/year(Max.) |
|
