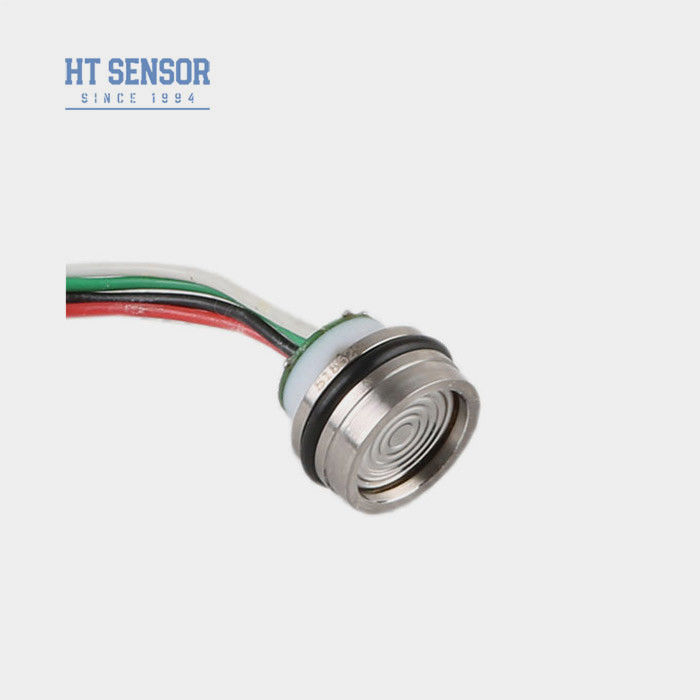

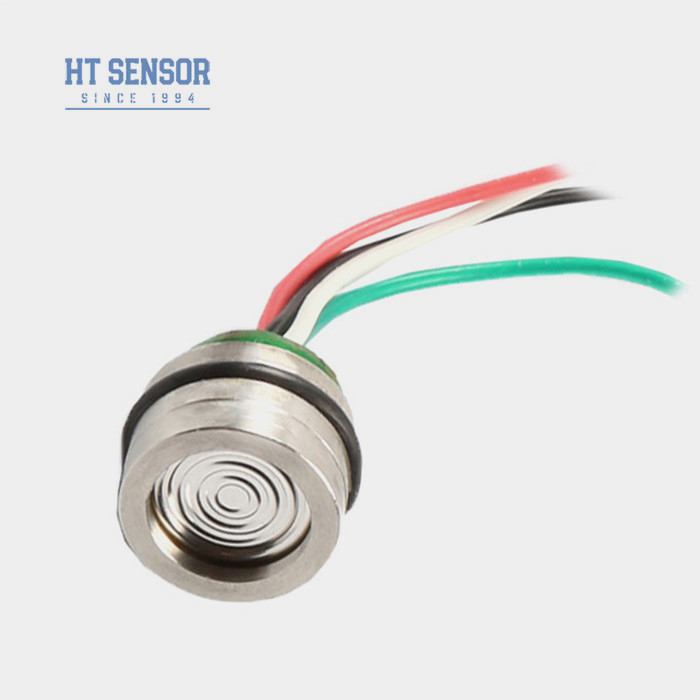

HT13V Mini Pressure Transmitter 13mm Silicon Diaphragm Type Level Transmitter

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: CE,RoHs,ISO9001
Model Number: HT13V
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: HT13V Wiring Type: Four-Wire Or Paper Bank
Range: 0-350kpa~35mpa Supply: 5-10VDC
Keywords: Mini Sensor Transport Package: Carton
Trademark: HengTong Origin: Baoji China
Output Signal Type: Analog Type Mv Signal Material: Stainless Steel
High Light:

HT13V Mini Pressure Transmitter


Mini Pressure Transmitter 13mm


13mm Silicon Diaphragm Type Level Transmitter

Product Description

Baoji Hengtong HT13V 13mm Type silicon pressure sensor for Mini level Transmitter

HT13V Silicon Piezoresistive Pressure Sensor

Introduction of mini silicon pressure sensor:

HT13V is a silicon pressure sensor with international advanced high stability, high precision silicon pressure chip, stress optimized design of the sintered base, through the SMT, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation and other processes, the product stability is excellent, excellent performance.
The overall size is miniaturized to meet the design requirements of the user's overall size. Pressure detection for 316L stainless steel, NBR or fluoroprene compatible media.

13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
13mm Type Baoji Hengtong Level Sensor for Mini Transmitter

Product  Features of mini silicon pressure sensor:
  1. Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
  2. Wide measuring range 0~350KPa~60MpaS
  3. High reliability and excellent stability
  4.  Constant voltage supply

Applications of mini silicon pressure sensor:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Compact design, ideal for applications with limited space
  3. Used in process control systems for monitoring and controlling pressure
  4. Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance of mini silicon pressure sensor:
  1. Power Supply: ≤10VDC (5-10VDC)
  2. Common Mode Voltage Output: 50% of the input (typical)
  3. Input Impedance:4KΩ~20KΩ
  4. Output Impedance:2.5KΩ~6KΩ
  5. Electrical Connection:100mm high-temperature wire,ribbon cable
Performance Parameters of mini silicon pressure sensor:
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa
  Typ Max Unit
Nonlinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   100±10 100±30 mV
Zero Offset Temp. Drift   ±0.5 ±1 %F.S
Full Scale Temp. Drift ±0.5 ±1 %F.S
Compensated Temp. 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~15g
The parameters are tested under the following conditions:   10V@ 25ºC
Outline Construction of mini silicon pressure sensor
type1 13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
type2 13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
Electrical connection and compensation

13mm Type Baoji Hengtong Level Sensor for Mini Transmitter

Selection Examples

13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
13mm Type Baoji Hengtong Level Sensor for Mini Transmitter13mm Type Baoji Hengtong Level Sensor for Mini Transmitter
HT13V Mini Pressure Transmitter 13mm Silicon Diaphragm Type Level Transmitter 9HT13V Mini Pressure Transmitter 13mm Silicon Diaphragm Type Level Transmitter 10
1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote  instruction by PC network is always available.
