1/2NPT Thread Connect Pressure Transmitter Sensor Flush Diaphragm Pressure Transmitter
Product Details
| Model NO.: | BPHT24-IX | Customized: | OEM/ODM |
|---|---|---|---|
| Weight: | ~0.3kg | Accuracy Grade: | 0.5% |
| Housing Material: | 304 S.S | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Pressure Range: | -100kpa...0kpa ~10kpa...100MPa | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Air And Liquid | IP Rating: | IP65 |
| Highlight |
1/2NPT Thread Connect Pressure Transmitter Sensor,Pressure Transmitter Sensor Flush Diaphragm,1/2NPT Flush Diaphragm Pressure Transmitter |
||
Product Description

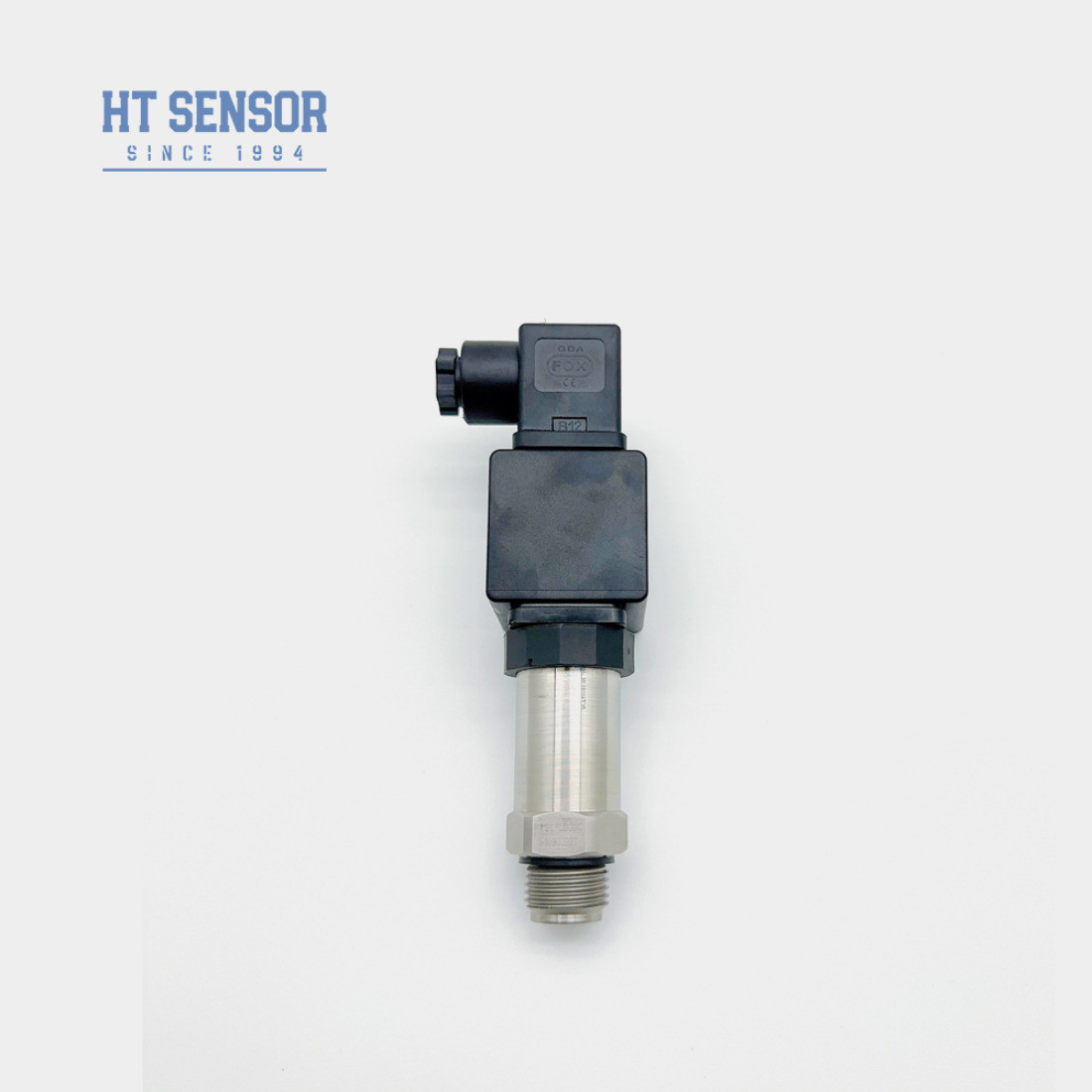

1/2NPT Thread Connect Flush Diaphragm Pressure Transmitter Sensor with DIN
BPHT24 Pressure Transmitter
Introduction of Pressure Transmitter Sensor:
BPHT24 pressure transmitter utilizes the HT series flat diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and
accurate pressure measurements in hygienic environments
Product Features of Pressure Transmitter Sensor:
- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean.
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
Perfomance Parameters:
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70℃(≤10mpa,customizable) |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~120℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0/1～10V | ||
| 0.5～4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6～30V / Battery | 4 wire |
Selection Examples:
Ordering tips:
1. Choosing the right installation location is very important. Try to avoid installation in an environment with vibration, shock or high temperature, so as not to affect the accuracy of measurement and the life of the equipment.
2. Avoid pressure exceeding the rated range of the pressure transmitter to avoid damage to the equipment. If it is necessary to measure pressure beyond the rated range, the pressure transmitter with the appropriate rated range should be selected.
3. Select the appropriate material according to the characteristics of the measured medium to prevent the medium from corroding the pressure transmitter. If the medium is corrosive, the pressure transmitter of a corrosion-resistant material should be selected.
4. Select the appropriate protection level according to the actual needs. If the equipment will be exposed to wet, dusty or other harsh environments, choose a pressure transmitter with a higher level of protection
| Order Guide | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Measurement Range | 0~35Kpa…~35MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | 1/2NPT | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
