19mm Diameter Silicon Diaphragm Sensor 316L Piezoresistive Pressure Sensor
Product Details
| Material: | 316L | Min Range: | 10kpa |
|---|---|---|---|
| Max Range: | 100mPa | Supply: | Less Than 2mA |
| Output: | Mv Signal | Selectable: | Four-color Silicone Wire |
| Model: | HT19 | High: | 12mm |
| Highlight |
19mm Diameter Silicon Diaphragm Pressure Sensor,Silicon Diaphragm Pressure Sensor 316L,316L Piezoresistive Pressure Sensor |
||
Product Description

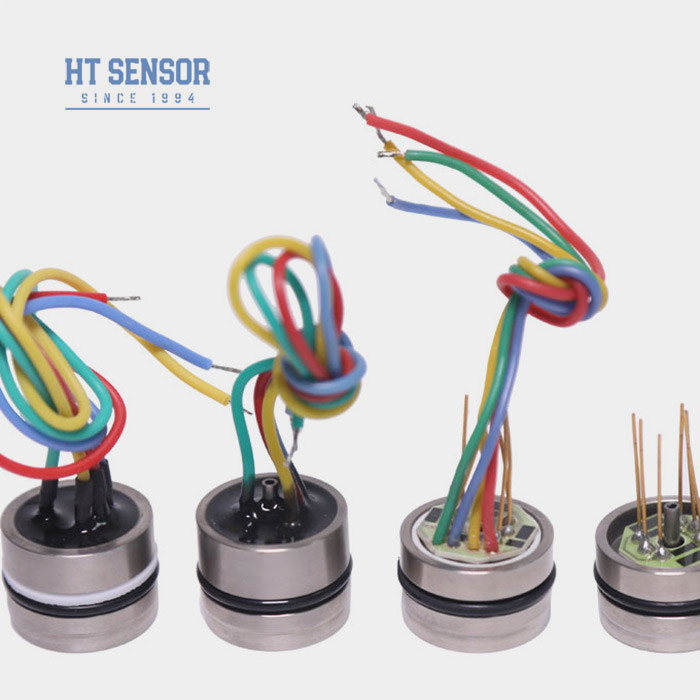

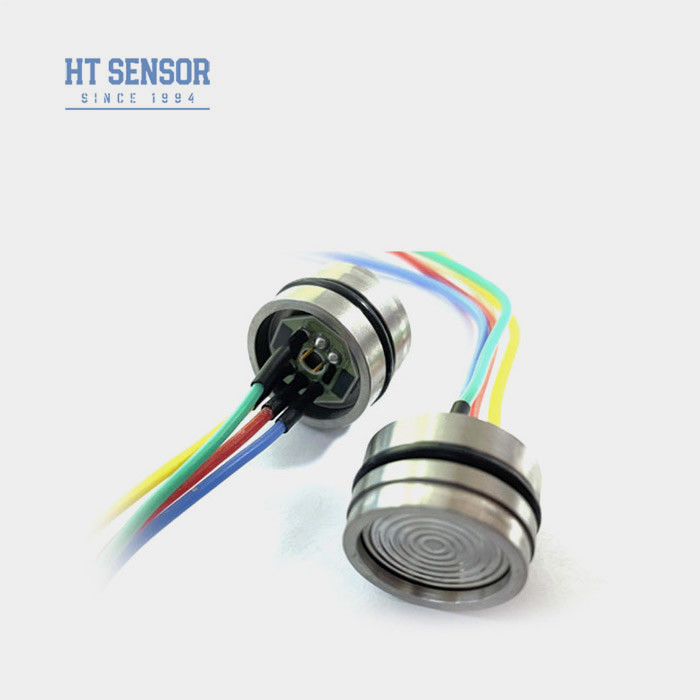

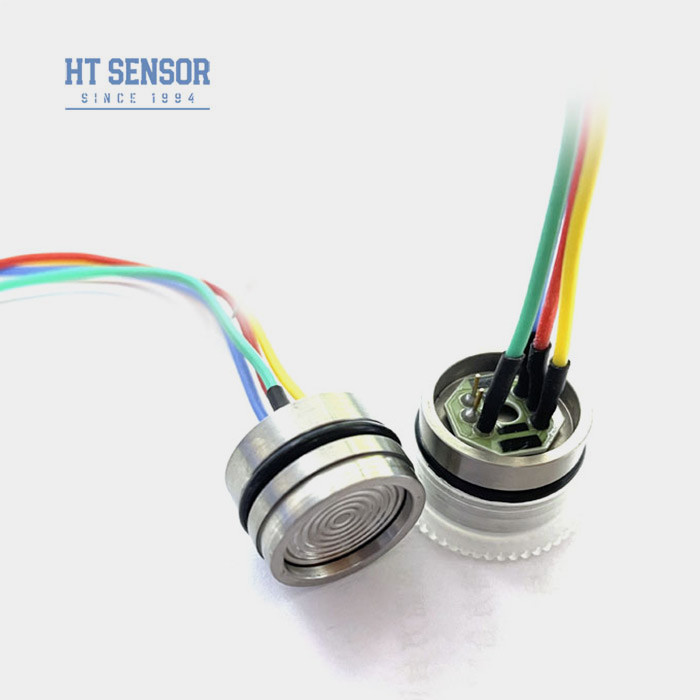

HT19 19mm Diameter 316L Material Mv Signal Output Diffusion Silicon Pressure Sensor Cell
HT19 Piezoresistive Silicon Pressure Sensor
Introduction of 15mm silicon pressure sensor:
HT19 piezoresistive silicon pressure sensor, the main component is high stability diffuse reflection silicon sensing element. The sensing package utilizes silicone oil to transfer pressure from a 316L stainless steel diaphragm to the sensing element. The piezoresistive effect method of diffused silicon was used to measure the gas and liquid pressure. It is the most commonly used diffused silicon sensor to measure pressure, and the price is cheaper than other types.
Product Features of 15mm silicon pressure sensor:
- Wide measurement range:0~10KPa~100Mpa
- Piezoresistive silicon sensing element
- Full316LSS,Full Titanium or Hastelloy diaphragm
- O-ring mount
- High Accuracy and stability
Applications of 15mm silicon pressure sensor:
- Measurement pressure of gas and liquid
- Petroleum exploitation
- Water supply,warm supply of town
- Process control system
- Aviation and navigation inspection
- Hydraulic pressure
Electrical performance of 15mm silicon pressure sensor:
- Supply:1.5mADC
- Input impedance:3KΩ~6KΩ
- Output impedance:2.5KΩ~6KΩ
- Insulation resistance:≥100MΩ/50VDC
- Insulation voltage:500VAC between the housing and electrical connection will not cause damage
- Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon Pressure sensor
| Parameters |
Range:0~10KPa,20KPa, 35 KPa,100 KPa,200 KPa,350 KPa, 700 KPa, 1MPa, 2MPa,3.5 MPa,7 MPa,10 MPa,20 MPa,40 MPa,60 MPa,100 MPa |
|||
| Typical | Max. | Units | ||
| Pressure Non-linearity |
±0.15 |
±0.3 | %F.S | |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S | |
| Zero Output | 0±1 | 0±2 | mV | |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV | |
| Temperature Error-Zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Proof Pressure | 3X Rated range or 120MPa, whichever is less | ------- | ||
| Operating Temperature Range | -20~80 | ℃ | ||
| Compensated Temperature Range | 0~70, 0~50(Range≤20KPa) | ℃ | ||
| Storage Temperature Range | -40~125 | ℃ | ||
Note :Above parameter under condition:Supply: 1.5mA Temperature: 25℃
Dimension
| Ordering tips |
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
