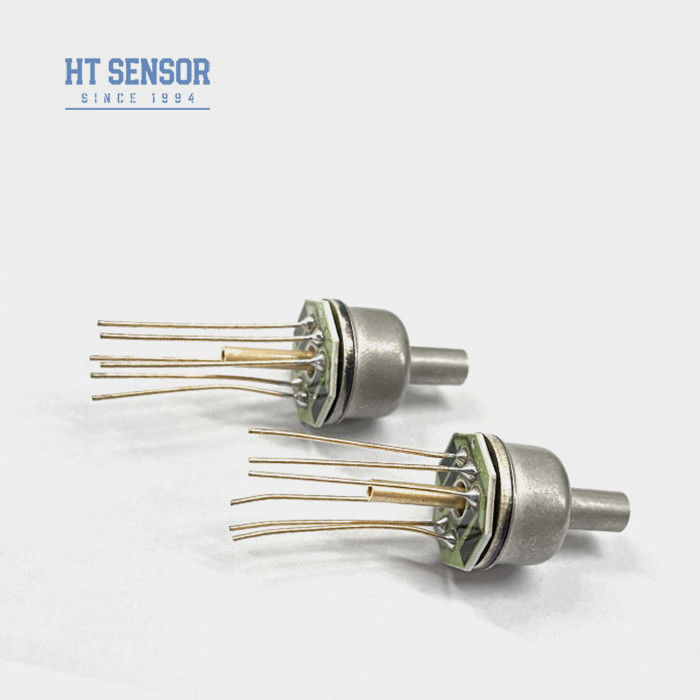

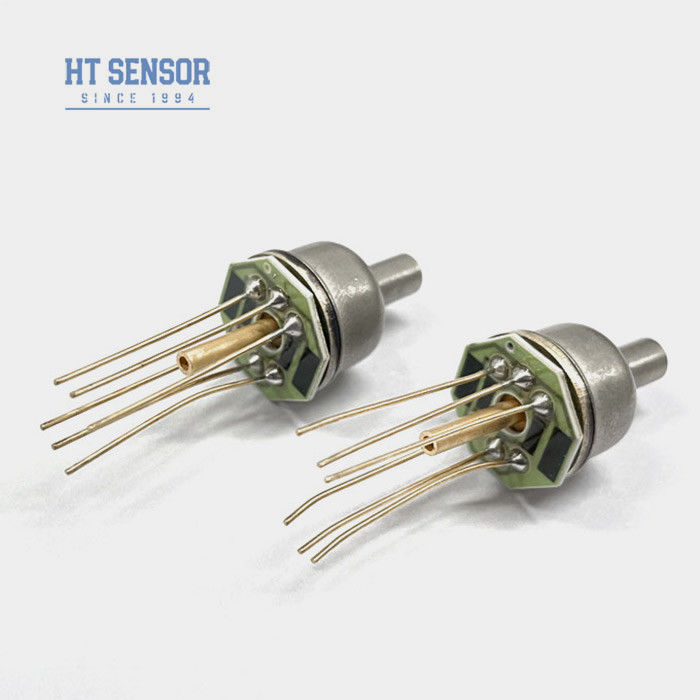

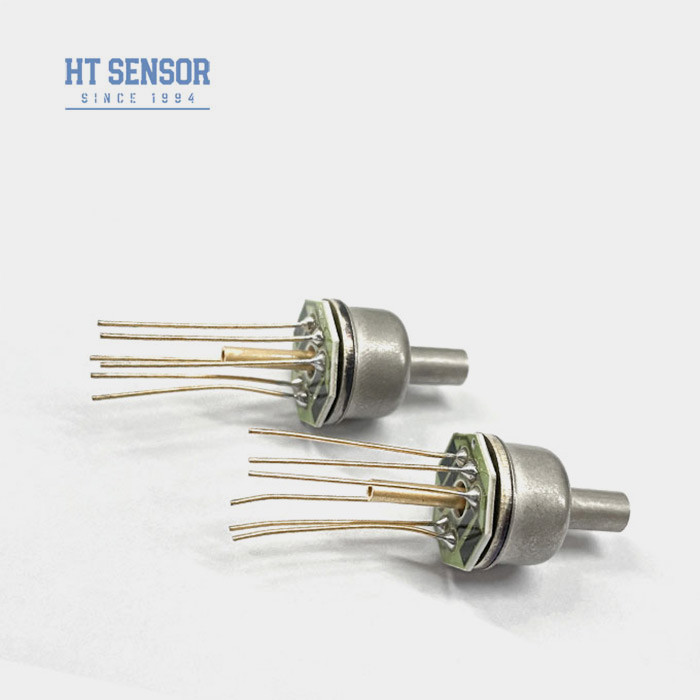

HT12 Baoji Hengtong To8 Silicon Pressure Sensor for Dry Air Test
HT12 silicon piezoresistive pressure sensor is a high-stability diffused silicon element, packaged using the internationally advanced TO8 encapsulation technology. It is known for its exceptional reliability, repeatability, and stability, making it ideal for measuring gas pressure accurately.
Product Features of silicon pressure sensor:
- Wide measurement range, 0~10KPa~2Mpa
- High reliability and excellent stability
- TO8 encapsulation technology
- Aerospace applications
Applications of silicon pressure sensor:
- Measurement of dry, non-corrosive gas pressures
- Pneumatic control systems
- Biomedical engineering for medical applications
- HVAC (Heating, Ventilation, and Air Conditioning) contro
- Aerospace testing for aviation-related purposes
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters of silicon pressure sensor: | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Typ | Max | Unit | ||||
| Linearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | ||
| ≥35kPa | 100±10 | 100±30 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Operating Temperature | -20~80 | ºC | ||||
| Storage Temperature | -40~125 | ºC | ||||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| Weight | ~12.5g | |||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | ||||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|
|
| Ordering tips |
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
