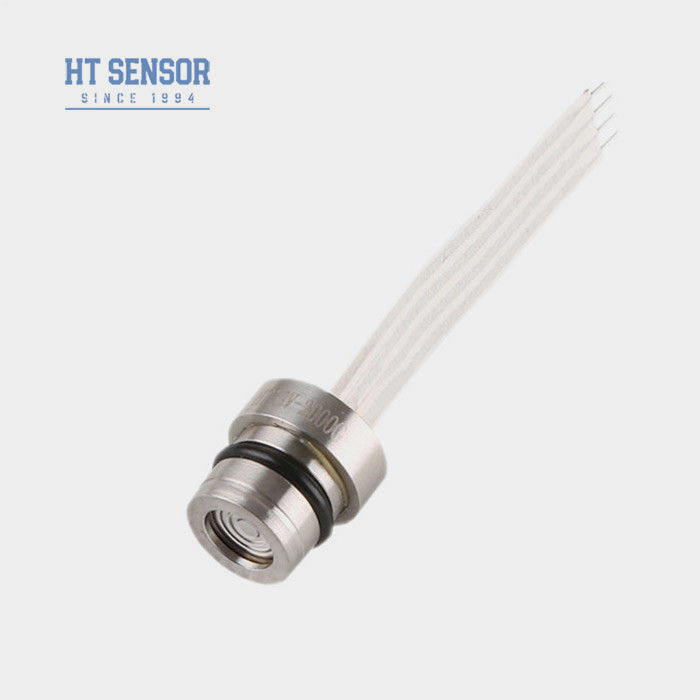

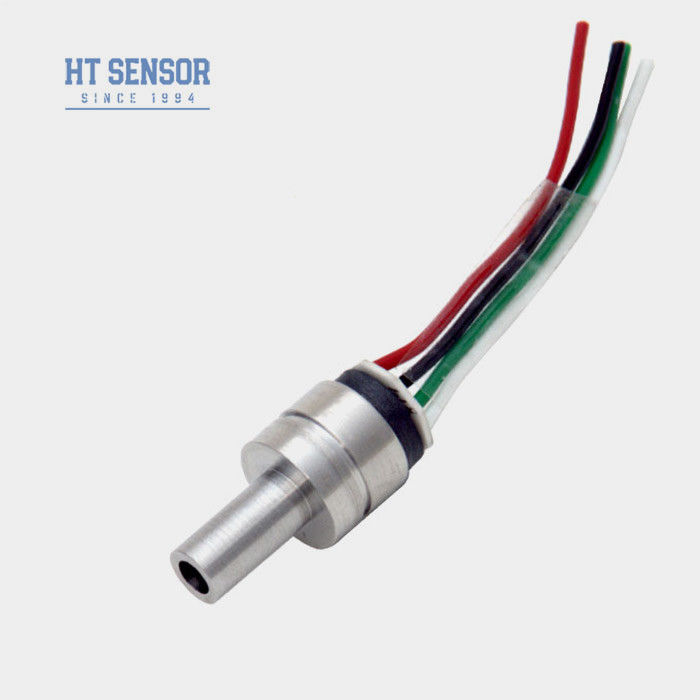

HT13 Stainless Steel silicon pressure sensor Airway Connection Mini Sensor

HT13 Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:

HT13 silicon pressure sensor is the latest design of oil-filled diffused silicon pressure sensor, with high pressure impact 100,000 times is not bad, and anti-interference/erosion/freezing/impact, high accuracy and stability. All stainless steel with inductive pressure film. The pressure response is faster and more sensitive. Specially designed small diameter pressure sensor,For a high quality pressure controller, the most important thing is the sensor. Adopt 316 stainless steel, high precision CNC, import seal.

Stainless Steel Airway Connection Mini Sensor
Stainless Steel Airway Connection Mini Sensor
Stainless Steel Airway Connection Mini Sensor

Product  Features of silicon pressure sensor:
  1. Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
  2. Wide measuring range 0~350KPa~60MpaS
  3. High reliability and excellent stability
  4. Various threaded interfaces available for selection
Applications of silicon pressure sensor:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Compact design, ideal for applications with limited space
  3. Used in process control systems for monitoring and controlling pressure
  4. Commonly used in refrigeration systems and air compressors for pressure measurement
Electrical performance of silicon pressure sensor:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance:3KΩ~6KΩ
  3. Output Impedance:2.5KΩ~6KΩ
  4. Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
Performance Parameters of silicon pressure sensor:
Measurement Range Gauge(G) 350KPa,1000KPa,2000Kpa
Absolute(A) 350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa
  Typ Max Unit
Linearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   100±10 100±30 mV
Zero Offset Temp. Drift   ±0.5 ±1 %F.S
Full Scale Temp. Drift ±0.5 ±1 %F.S
Compensated Temp. 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight about 15g
The parameters are tested under the following conditions:   1.5mA @ 25°C
Outline Construction
type1 Stainless Steel Airway Connection Mini Sensor
type2 Stainless Steel Airway Connection Mini Sensor
Electrical connection and compensation

Stainless Steel Airway Connection Mini Sensor

Selection Examples

Stainless Steel Airway Connection Mini Sensor
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
