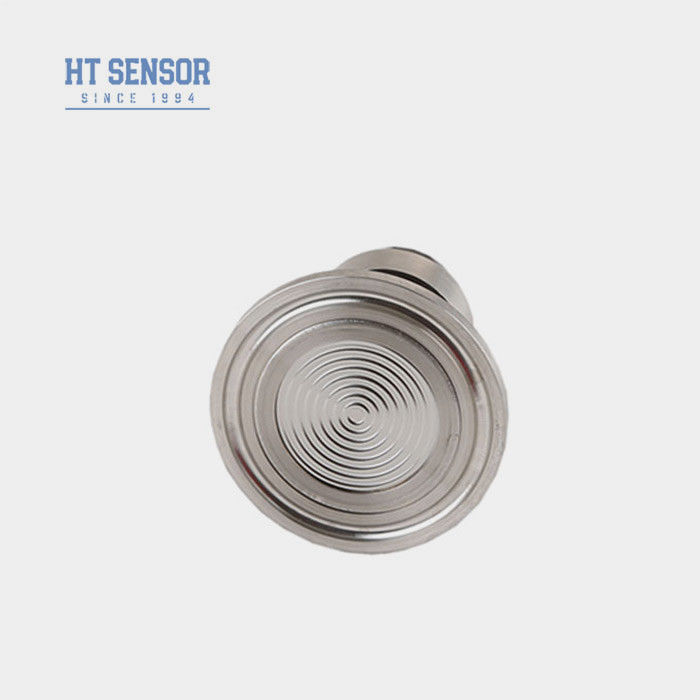

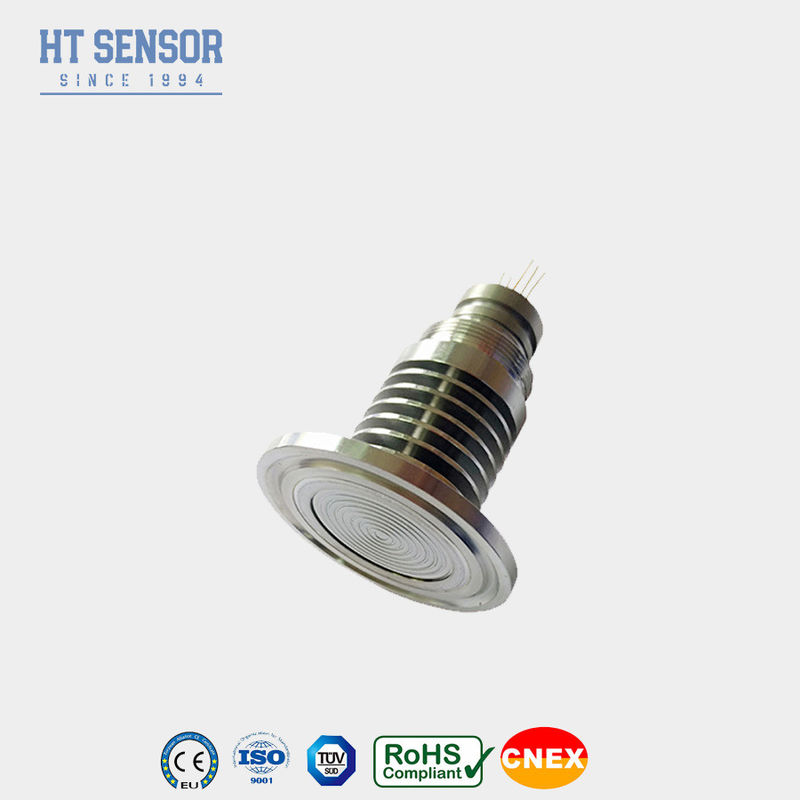

HT-IQ Piezoresistive Silicon Pressure Sensor 50.4mm Big Diaphragm Type Flush Sensor
Product Details
| Model NO.: | HT-IQ | Thread Type: | 50.4mm Clamp |
|---|---|---|---|
| Wiring Type: | Four-Wire Or Gold-plated Kovar Pins | Measuring Medium: | Gas And Liquid |
| Range: | 0-35kpa~3.5Mpa | Power: | 1.5mA |
| Transport Package: | Carton | Origin: | China |
| HS Code: | 9026209090 | Type: | Piezoresistive Silicon Pressure Sensor |
| For: | Diffused Silicon Pressure Transmitter | Output Signal Type: | Analog Type |
| Material: | Stainless Steel | Customization: | Available | Customized Request |
| Highlight |
HT-IQ Piezoresistive Silicon Pressure Sensor,Piezoresistive Silicon Pressure Sensor 50.4mm,50.4mm Big Diaphragm Type Pressure Sensor |
||
Product Description
HT-IQ 50.4mm Big Diaphragm Piezoresistive Silicon Pressure Sensor Introduction
HT-IQ Silicon Piezoresistive Pressure Sensor
Introduction of piezoresistive silicon pressure sensor :
HT-IQ is a flush diaphragm pressure sensor with a highly stable diffused silicon chip. The pressure is transmitted to the sensitive chip through a stainless steel diaphragmand sealed silicon oil. The sensitive chip does not directly contact the measured medium. This product features a flat diaphragm structure, making it easy to clean and highly reliable. It is suitable for applications in industries such as food and hygiene.
Product Features of piezoresistive silicon pressure sensor:
- Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
- Employing thick-film circuits for temperature compensation and zero-point correction
- outstanding reliability, repeatability, and stability
- Flush diaphragm structure, which makes it easy to clean
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Food and beverage industry
- Industrial process control
- Pharmaceutical industry
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance : 2.5KΩ~6KΩ
- Output Impedance: 2.5KΩ~6KΩ
- Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
| Performance Parameters of piezoresistive silicon pressure sensor: | |||||
| Measurement Range | Gauge(G) | 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~150g | ||||
| The parameters are tested under the following conditions: 1.5mA @25°C | |||||
| Outline Construction | |

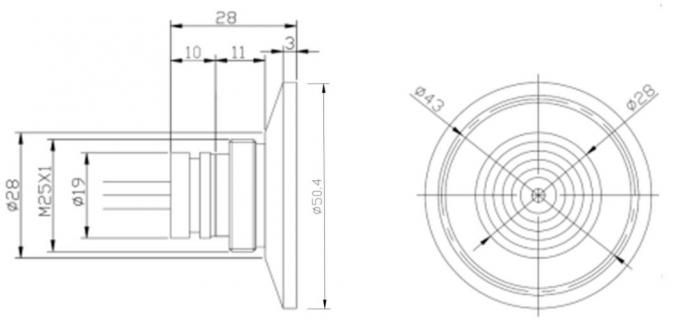

| Dimension |
|

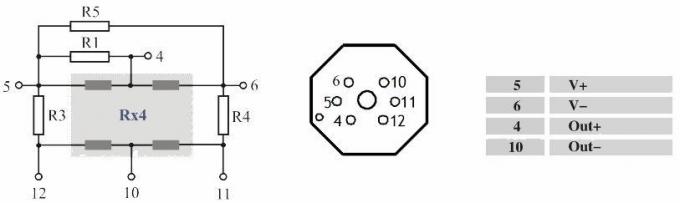

| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
| Q&A |
A1:We are manufactrader with more than 29 years of experience/
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
