| Model NO.: | HT26V | Output Signal Type: | Analog 10mv/V |
|---|---|---|---|
| POWER: | 5-10vdc | Material: | Stainless Steel |
| Thread Type: | No | Measuring Medium: | Gas And Liquid |
| Dia: | 19mm | High: | OEM |
| Transport Package: | Carton | Origin: | China |
| Type: | Silicon Pressure Sensor | Customization: | Available | Customized Request |
| High Light: | 5V Silicon Piezoresistive Pressure Sensor,5V Silicon Diaphragm Pressure Sensor,Diaphragm Pressure Sensor With Pin Connect |
||

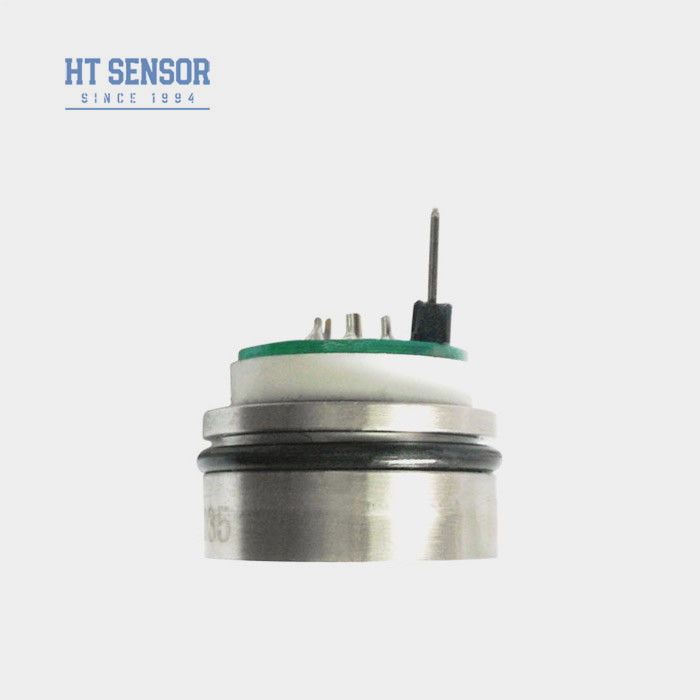

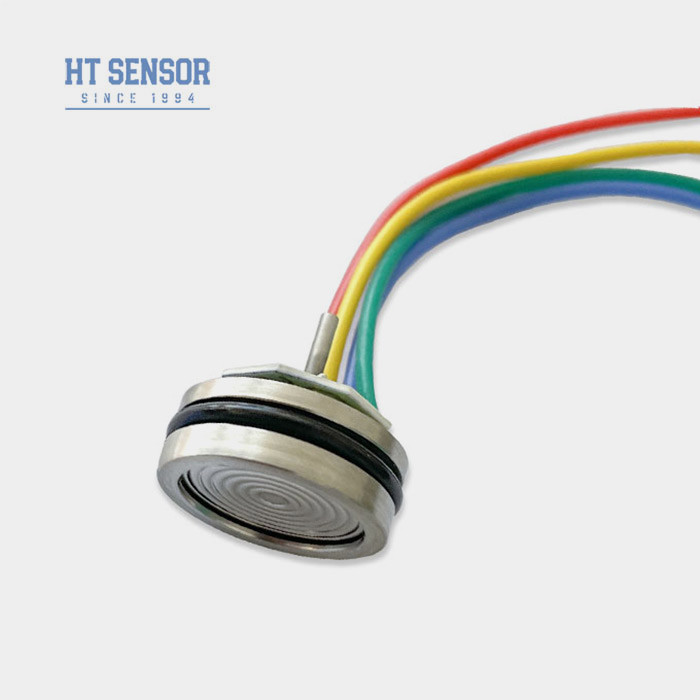

HT26V Silicon Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT26V is a piezoresistive silicon pressure sensor with a highly stable diffused silicon crystal element at its core. The pressure difference of the measured medium is transmitted to the silicon diaphragm through the 316L isolation diaphragm and the sealing silicone oil. Custom construction is made from a regular 19mm diameter, highly customized, stainless steel parts can be as low as 7mm. 5-10V constant voltage power supply, output regular. The HT26V pressure sensor is equipped with an O-ring for pressure sealing and easy installation.
| Performance Parameters of silicon pressure sensor: | |||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000KPa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±1 | 50±2 | mV | |
| ≥35kPa | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2.5 | %F.S | |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | 3 times the full scale | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~25g | ||||
| The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC | |||||
