BP157 Silicon Diaphragm Pressure Sensor Stainless Steel Pressure Transducer 4-20mA
Product Details
| Model NO.: | BP157 | Power Supply: | 12-30VDC |
|---|---|---|---|
| Output Signal: | 4-20mA | Compensation Temperature: | -10~70℃/Customized |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Housing Material: | 304/316L |
| Transport Package: | Standard Export Packing With Carton | Sensing Element: | Diffused Silicon Pressure Sensor |
| Origin: | Baoji, China | HS Code: | 9026201090 |
| Supply Ability: | 2000PCS/Month | Measuring Medium: | Liquid Or Gas |
| Accuracy Grade: | 0.25%,0.5% | Pressure Range: | 0kpa~10kpa...20MPa |
| IP Rating: | IP65 | ||
| Highlight |
BP157 Silicon Diaphragm Pressure Sensor,4-20mA Silicon Diaphragm Pressure Sensor,Stainless Steel Pressure Transducer 4-20mA |
||
Product Description

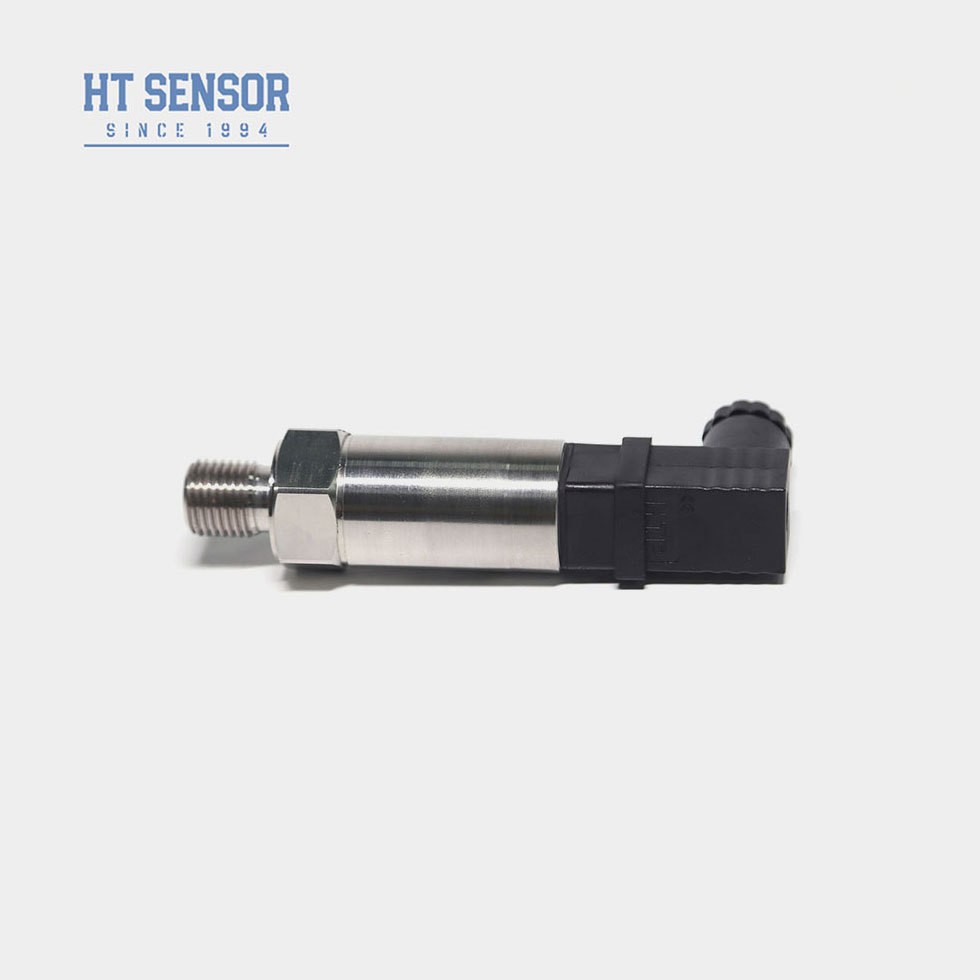

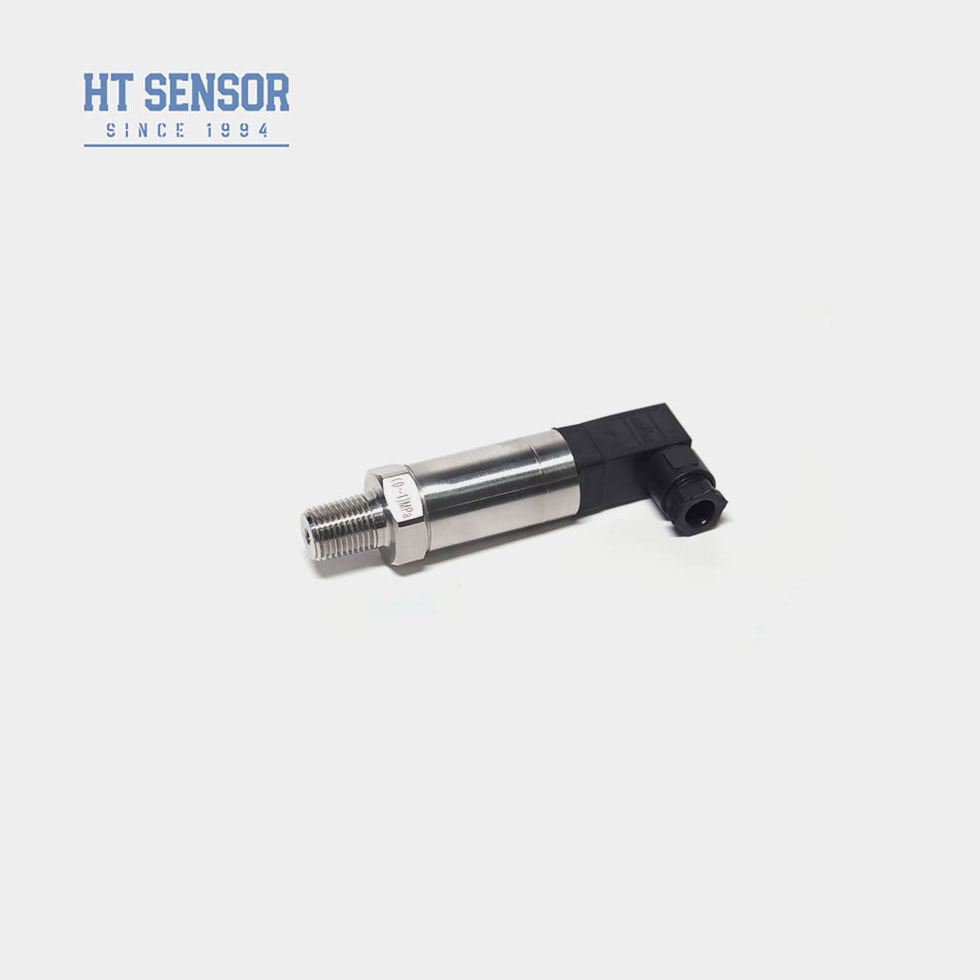

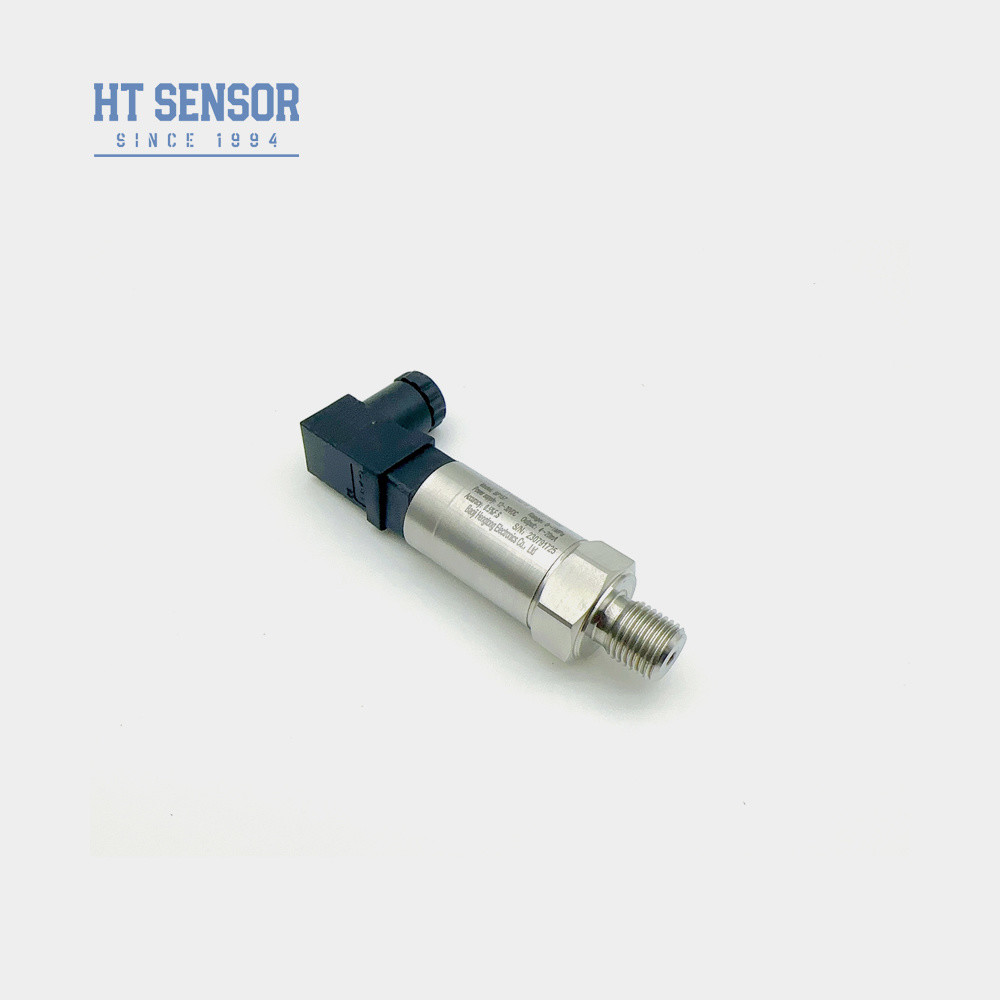

HENGTONG BP157 STAINESS STEEL OEM SILICON PRESSURE SENSOR
BP157 Pressure Transmitter
Introduction of silicon pressure sensor:
BP157 silicon pressure sensor utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products,and finished products to ensure stable and reliable performance.
Product Features:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. IP65 protection rating stainless steel structure
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure
Applications:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
|
Performance Parameters:
|
|
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips: |
1. Measurement range: Determine the required pressure measurement range, i.e. the minimum and maximum pressure values to be measured. Ensure that the measurement range of the selected diffused silicon pressure transmitter meets the requirements of the application.
2. Output signal type: Determine the desired output signal type, such as an analog signal (such as 4-20mA or 0-10V) or a digital signal (such as RS485 or Modbus). Make sure the output signal type of the transmitter you choose is compatible with your control system or device.
3. Accuracy requirements: Determine the required pressure measurement accuracy. Different applications may have different accuracy requirements, choose the diffused silicon pressure transmitter that suits your application needs.
4. Temperature range: Consider the temperature range of the application environment to ensure that the selected transmitter can work properly in this temperature range.
5. Media compatibility: Understand the properties of the medium being measured, such as liquid or gas, and ensure that the selected diffused silicon pressure transmitter is compatible with that medium.
6. Mounting method: Determine the mounting method of the transmitter, such as flange mounting, thread mounting or other methods. Make sure the transmitter you choose matches your installation needs.
| Order Guide: | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
