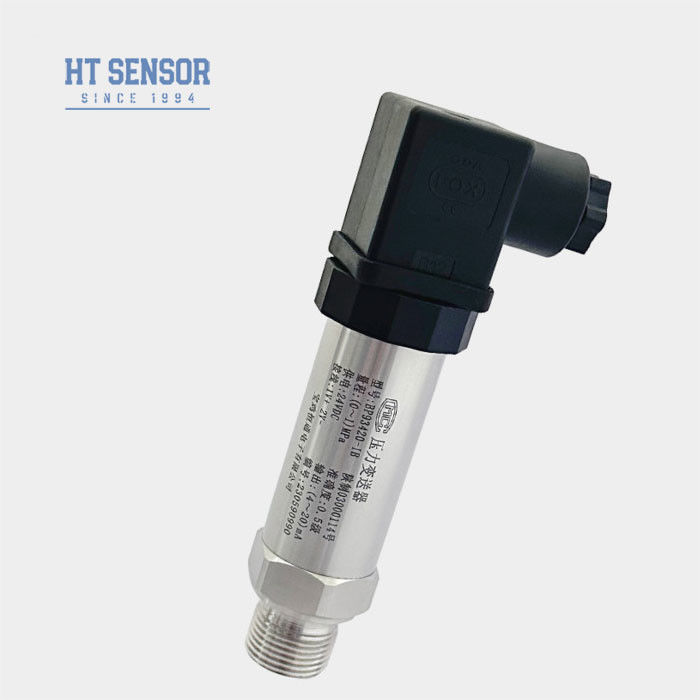

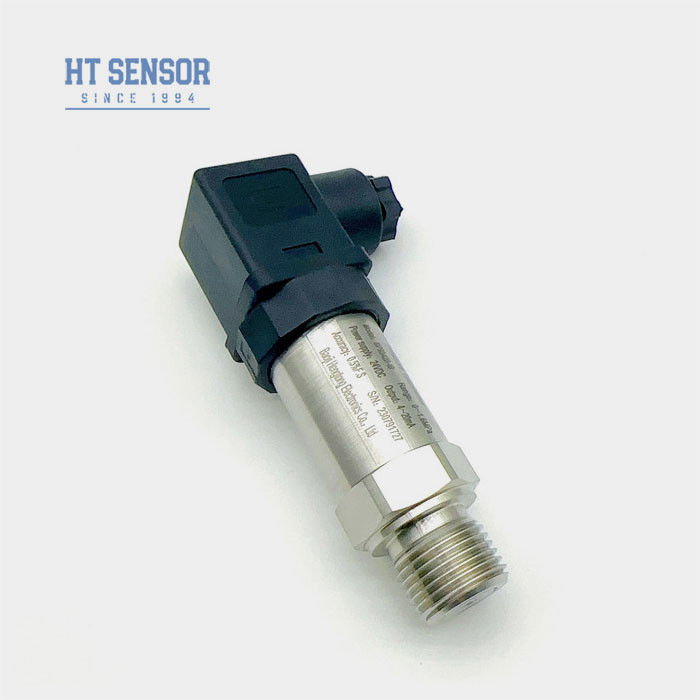

BP93420IB Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
The BP93420IB pressure transmitter sensor uses the HT series diffused silicon isolated oil core as the main signal measurement element. Diffused silicon pressure sensors are designed to provide accurate and stable measurements for critical processes.With high accuracy and stability, this diffused silicon pressure sensor is ideal for a variety of industrial applications.
Product Features of pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design
3. High precision, all stainless steel structure.
4.Can add LED or LCD watch head, on-site display
Applications of pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips of pressure transmitter sensor |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering with LCD or LED display head of transducer, transmitter power should not be less than 20 VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, no cable or polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
7. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform our company and indicate in the order.
| Order Guide of pressure transmitter sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
