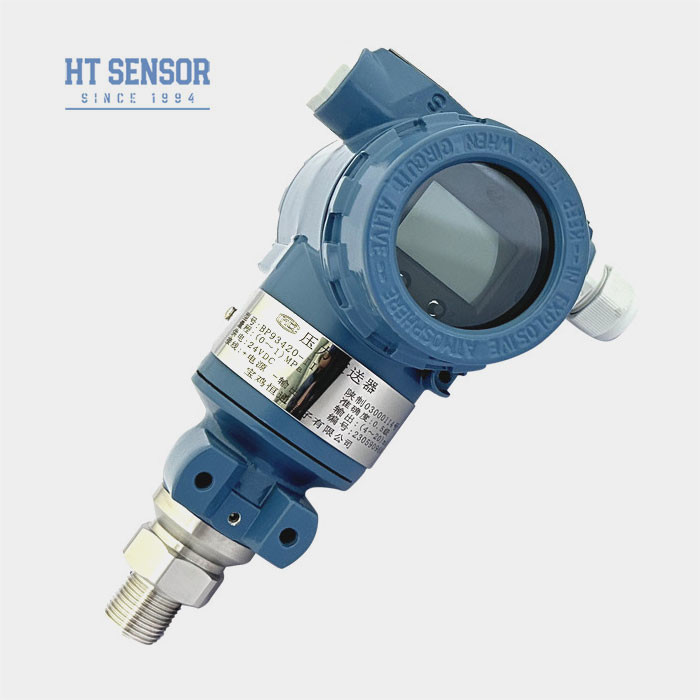

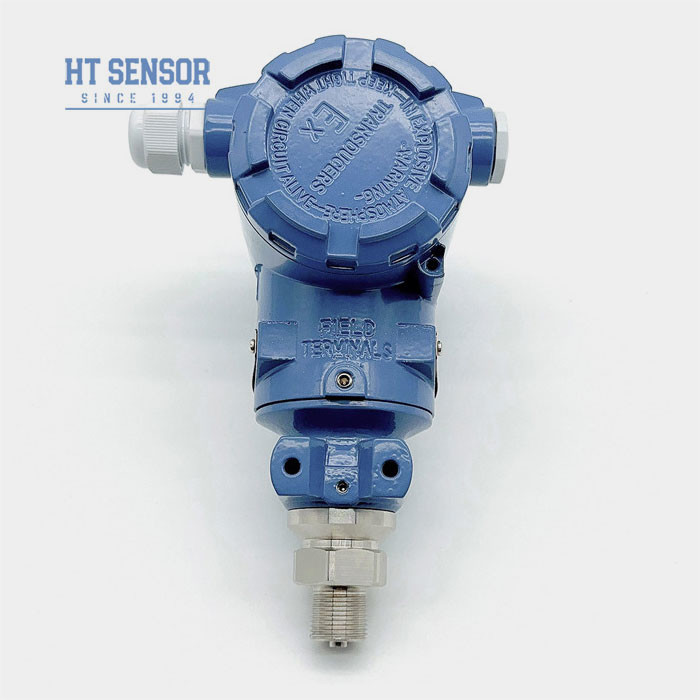

BP93420-3051 Smart Pressure Transmitter
Introduction of smart pressure transmitter:
BP93420-3051 intelligent smart pressure transmitter is composed of intelligent sensor and intelligent electronic board. The intelligent sensor part includes silicon pressure sensor, measuring diaphragm detection circuit, temperature sensor and temperature compensation circuit, etc. The intelligent electronic board consists of a microcomputer controller and a peripheral circuit to complete the conversion of pressure signals to electrical signals. Used to measure the pressure of liquids, gases or vapors.
Product Features of smart pressure transmitter:
1. Wide measuring range, diverse pressure interface forms, and IP65 protection level.
2. Various output signal forms, adjustable and displayable
3. Adjustable zero point and full scale
4. Core utilizes high-precision and high-performance diffused silicon piezoresistive pressure sensors.
Applications of smart pressure transmitter:
1. Suitable for measuring the pressure of non-corrosive gases and liquids in 316L stainless steel
2. Petroleum, chemical, metallurgy, power, and hydrology
3. Pressure measurement and control in harsh outdoor industrial environments
4. Used in hydraulic and pneumatic control systems.
Performance Parameters of smart pressure transmitter | |
Measurement Range | -100kPa…0kPa ~10kPa…100MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | ≤±0.1%FS |
Hysteresis | ≤±0.1%FS |
Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Frequency Response | 2.4Khz |
Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | Aluminum Alloy |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Ex db IIC T6 Gb |
Protection Rating | IP65 |
O-Ring Seal | Fluoro rubber |
Weight | ~1.2kg |
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC | |
RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering tips |
Order Guide | ||||||||
BP93420XX | Pressure Transmitter | |||||||
Code | Outline Construction | |||||||
IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
IC | High-temperature Pressure Transmitter | |||||||
IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
Code | Power Supply | |||||||
D1 | 24VDC | |||||||
D2 | 5VDC | |||||||
D3 | Other | |||||||
Code | Output Signal | |||||||
S1 | 4~20mADC | S5 | 0~20mADC | |||||
S2 | 1~5VDC | S6 | 0~10VDC | |||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
S4 | 0~10mADC | |||||||
Code | Pressure Connection | |||||||
J1 | M20×1.5 | |||||||
J2 | G1/2 | |||||||
J3 | G1/4 | |||||||
J4 | 7/16-20UNF | |||||||
J5 | Other | |||||||
Code | Electrical Connection | |||||||
B1 | Hirschmann | |||||||
B2 | PG7 Plug | |||||||
B3 | Sealed Cable Output | |||||||
B4 | 2088 Industrial Casing | |||||||
B5 | 2088 Industrial Casing with Display | |||||||
B6 | Other | |||||||
Code | Pressure Type | |||||||
G | Gauge Pressure | |||||||
A | Absolute Pressure | |||||||
S | Sealed Reference Pressure |
