Thimble 4-20mA Industrial Pressure Sensor BP156TC Ceramic Pressure Transmitter Sensor Proble
Product Details
| Model NO.: | BP156TC | Sensor: | Ceramic Sensor |
|---|---|---|---|
| Power: | 5VDC /3.3VDC /12-36vdc | Output: | 0.5-4.5V/0.2-2.2V /4-20mA |
| Housing Material: | 304S.S | Trademark: | HTsensor |
| Origin: | Baoji, China | HS Code: | 9026209090 |
| Accuracy Grade: | 0.5% | Pressure Range: | 0kpa~200kpa...10MPa |
| IP Rating: | IP65 | Customization: | Available OEM And ODM |
| Highlight |
Thimble 4-20mA Industrial Pressure Transducer,Industrial Pressure Transducer BP156TC,BP156TC Ceramic Pressure Transmitter |
||
Product Description

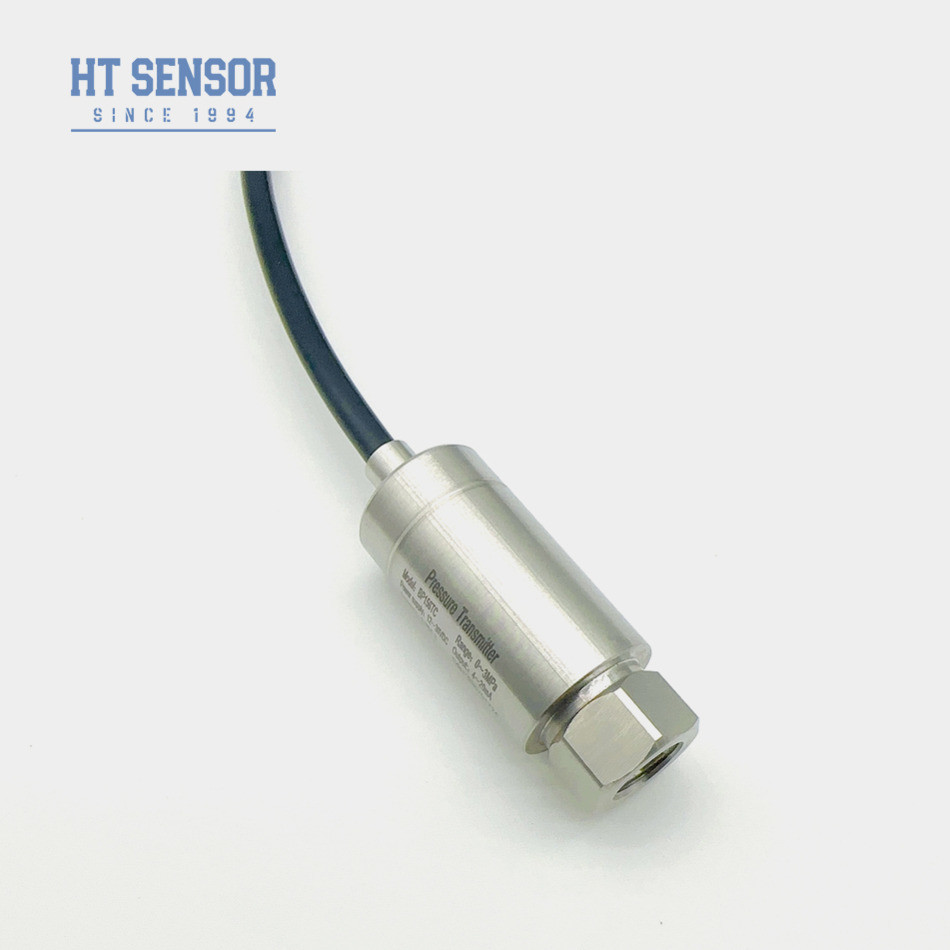

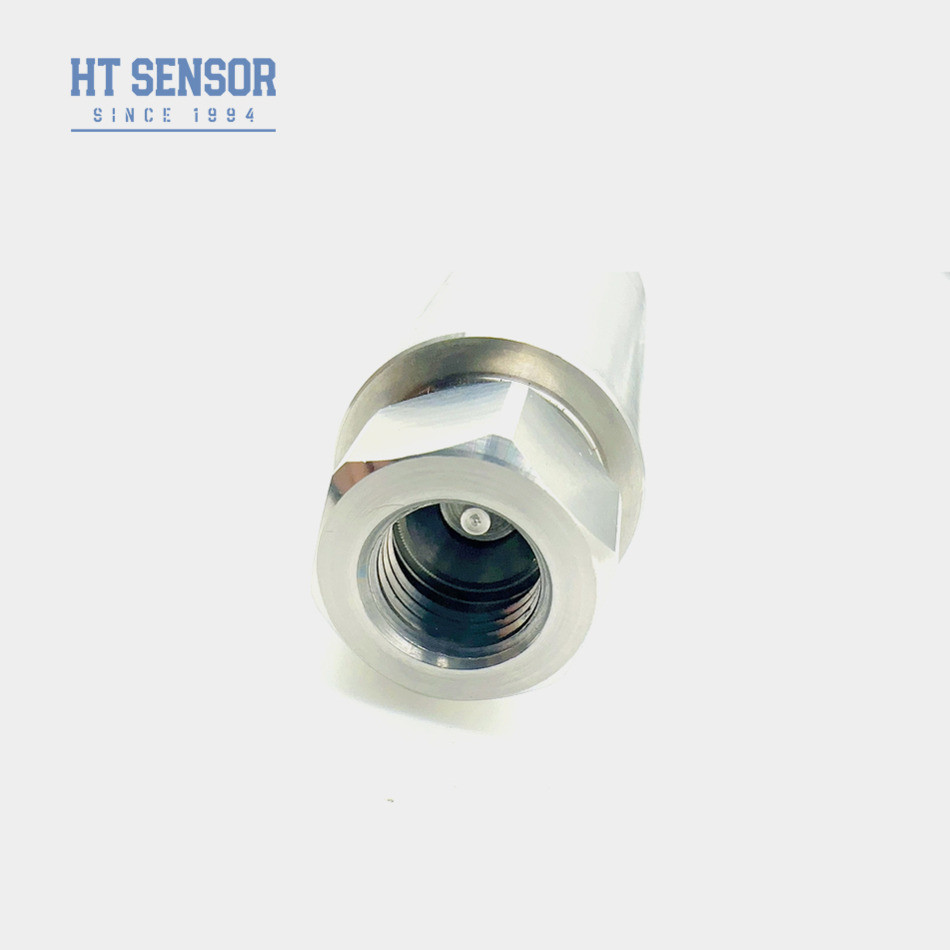

4-20mA BP156TC Industrial Pressure Sensor Within Ceramic Sensor
BP156TC Pressure Transmitter
Introduction of industrial pressure sensor:
The BP156TC industrial pressure sensor transmitter is a cost-effective solution designed for air compressor and refrigeration equipment. The transmitter incorporates the latest technology and features a high-performance transmitting circuit developed by our company. It boasts a compact size, strong moisture resistance, and excellent electromagnetic interference resistance. The core component is a ceramic pressure sensor that offers significant cost savings for low overload pressure testing environments.
Product Features of industrial pressure sensor:
1. Wide measuring range, diverse pressure interface
2. Compact and lightweight design
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure
Applications of industrial pressure sensor:
1. Non-corrosive gases and liquids with 316L stainless steel
2. Marine and aviation industries
3. Petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of industrial pressure sensor: | |
| Measurement Range | 0kPa ~ 500kPa…5MPa |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
2.Please be aware that explosion-proof products do not include digital display heads when placing an order.
3.To ensure reliable product operation, it is recommended to install on-site lightning protection devices and ensure proper grounding of the product and power supply.
4.The Fluoro rubber O-ring has a rated working temperature range of -20ºC to 250ºC. For operating temperatures below -20ºC, an EPDM O-ring seal should be selected.
5.The default cable length is 1.5m and is available in three materials. If no specific material is specified, polyethylene cable will be provided. If a different cable material is required, please indicate it in the order.
6.For special requirements such as strong vibration, sudden impact force, or electromagnetic/radio frequency interference, please inform our company and specify them in the order.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
