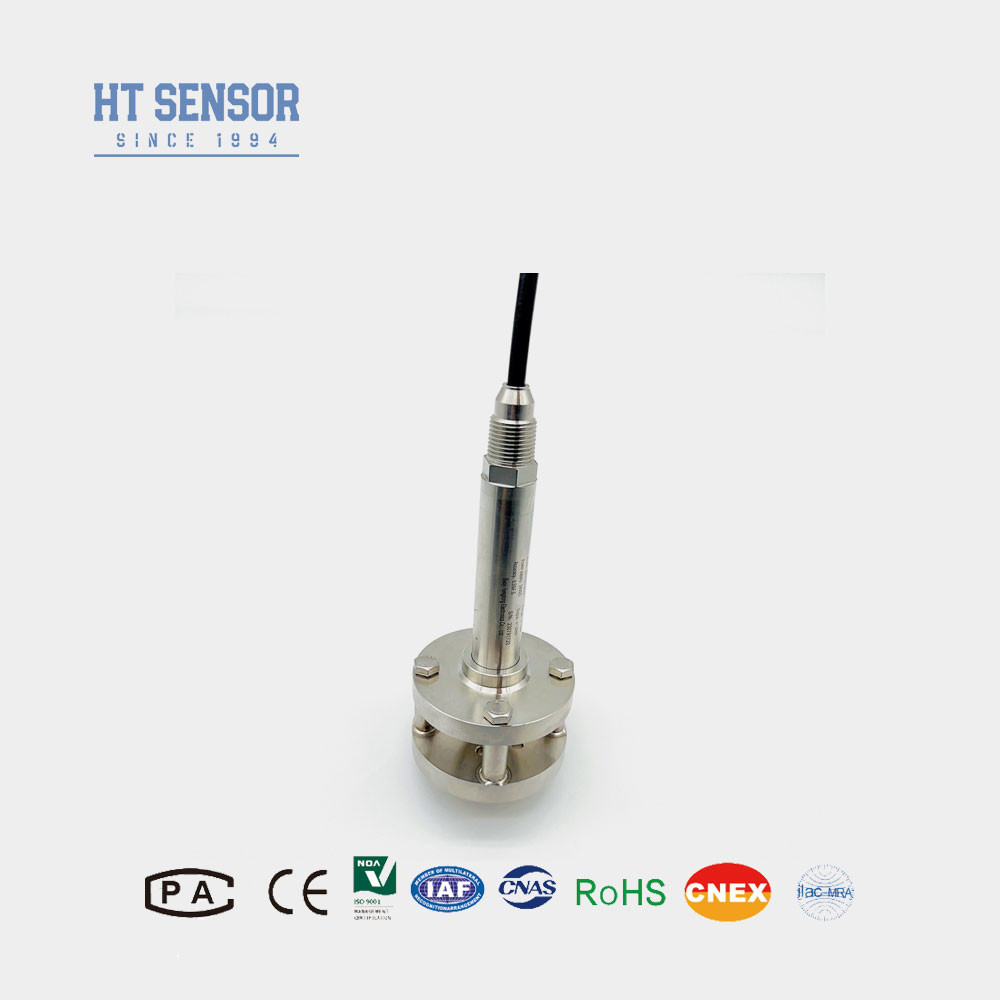

0-100psi Submersible Liquid Level Transmitter Piezoresistive Water Level Sensor Transmitter
Product Details
| Model NO.: | BH93420-WS | Range: | 0-5psi~~100psi |
|---|---|---|---|
| Houing Material: | Stainess Steel | Stability: | ±0.2%F.S/Year(Typ.) |
| Diaphragm Material: | 316L Stainess Steel | HS Code: | 90261000 |
| Type: | Silicon Piezoresistive Type Liquid Level Transmitter | Pressure Range: | Gauge Pressure, Absolute Pressure |
| Display Type: | Without Display | IP Rating: | IP68 |
| Highlight |
100psi Submersible Liquid Level Transmitter,Submersible Liquid Level Transmitter Piezoresistive,Piezoresistive Water Level Transmitter |
||
Product Description
HT BH93420-WS liquid level transmitter for measurement water level
Introduction of liquid level transmitter sensor:
BH93420-WS sewage liquid level transmitter sensor is a pressure sensor for measuring liquid level.Based on the measured liquid static pressure and the height of the liquid is proportional to the principle of adopting isolation diffusion silicon sensing element or sensitive ceramic capacitance pressure sensor, the static pressure is converted to electrical signals, after temperature compensation and the linear correction, converted into a standard electrical signals. Generally suitable for petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection and other systems and industries of various media liquid level measurement.
Product Features of liquid level transmitter sensor:
- Specially designed for harsh environments.
- Explosion-proof marking : ExiaIICT6.
- High protection : IP68.
- Full 316L stainless steel structure with excellent corrosion resistance.
- High precision and good stability.
- Compatible with 316LSS,noncorrosive liquids.
- Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers.
- Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs.
| Performance Parameters of liquid level transmitter sensor | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Outline Construction |
| Selection Examples |
| Ordering tips |
1. In the selection, please ensure that the tested medium is compatible with the product parts in contact with it.
2. When the depth of the medium needs to be measured, the density of the medium to be measured should be provided.
3. For strong electromagnetic or RF interference, please provide detailed information to our company and indicate it in the order.
4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
| Order Guide | ||||||||
| BH | Code | Outline Construction | ||||||
| WS | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
| C3 | PTFE | |||||||
FAQ:
1. Q: What are the characteristics of your pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the needs of large-scale orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
A: Competitive prices, discounts for bulk orders or long-term partners.
6. Q: What is the warranty period of your product? What about after-sales service?
A: Our warranty period is 24 months after delivery, reply to your question within 24 hours after sale, remote guidance through the PC network at any time.
