| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BH93420-WS |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BH93420-WS | Customized: | Customized |
|---|---|---|---|
| Houing Material: | 316L S.S | Stability: | ±0.1%F.S/Year(Typ.) |
| Range: | 0-1m~200mH2O | Transport Package: | Carton |
| Origin: | Shaan Xi， China | Structure Design: | Flange Type |
| Pressure Range: | Gauge Pressure, Absolute Pressure | IP Rating: | IP68 |
| High Light: | BH93420-WS Custom Liquid Level Transmitter,Liquid Level sensor BH93420-WS,Liquid Level Transmitter With Silicon Pressure Sensor |
||

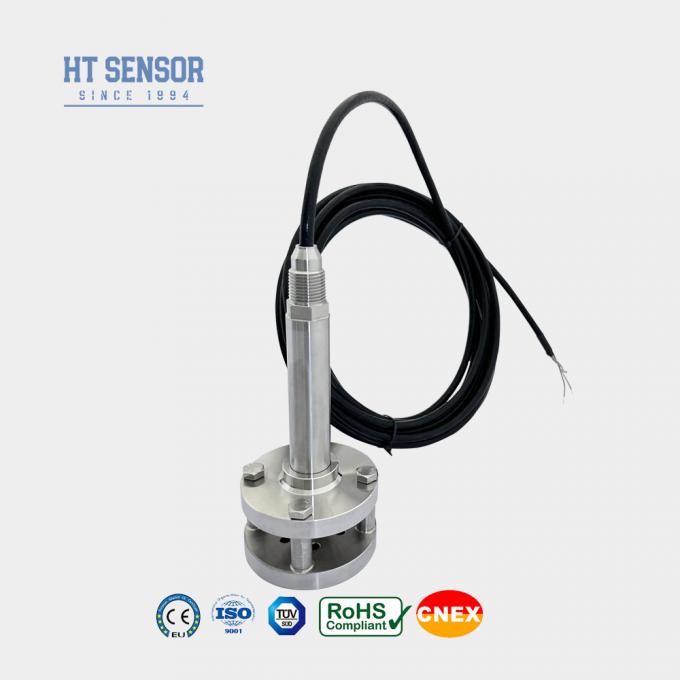

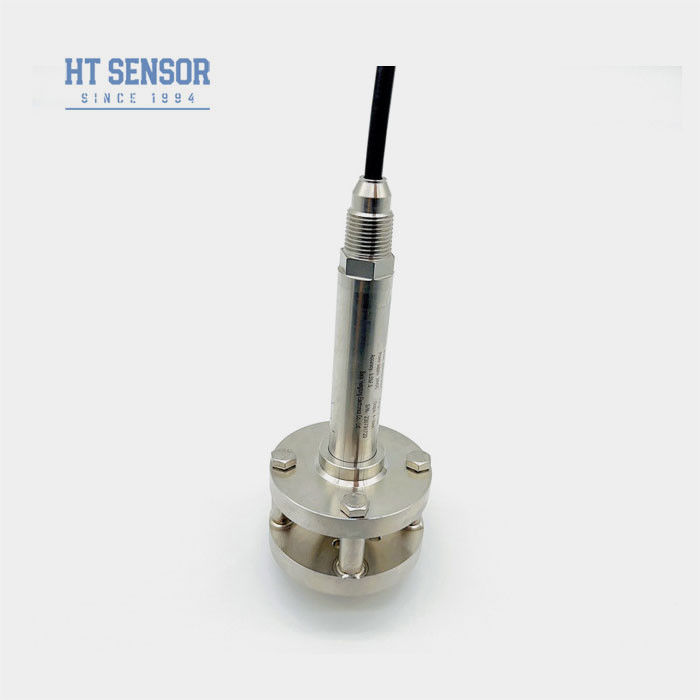

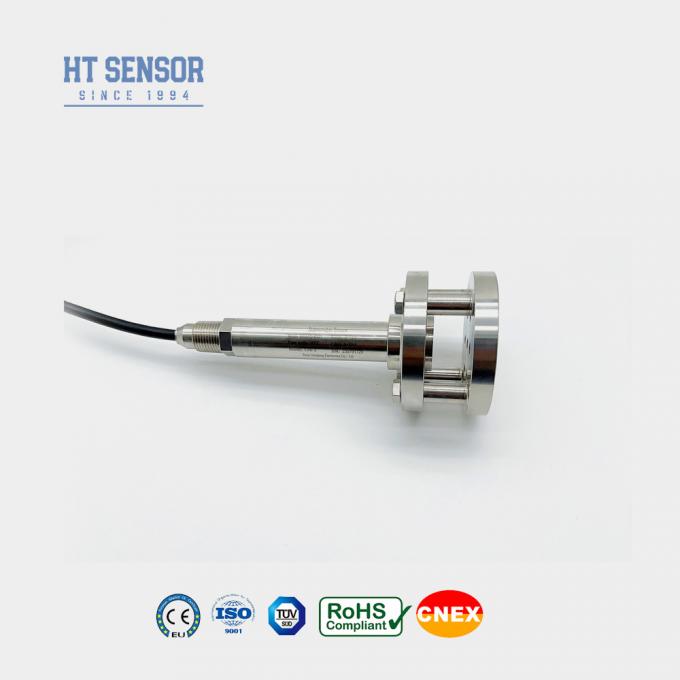

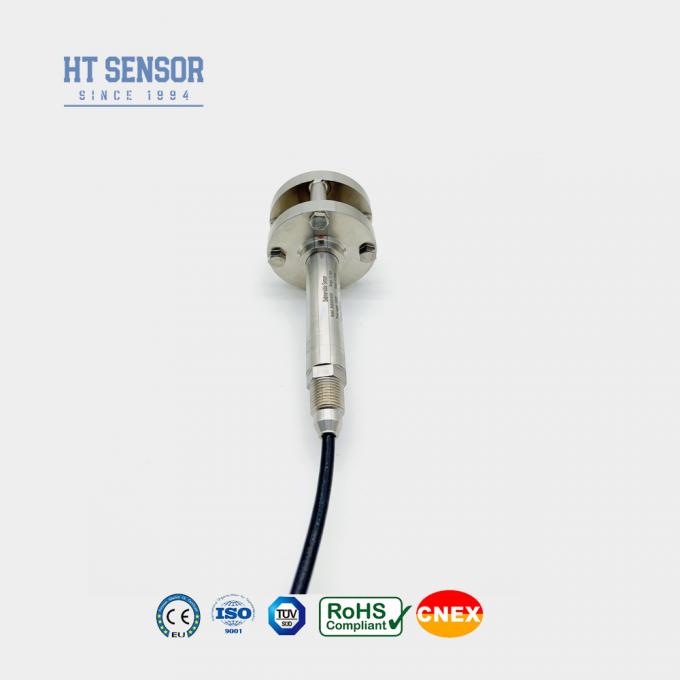

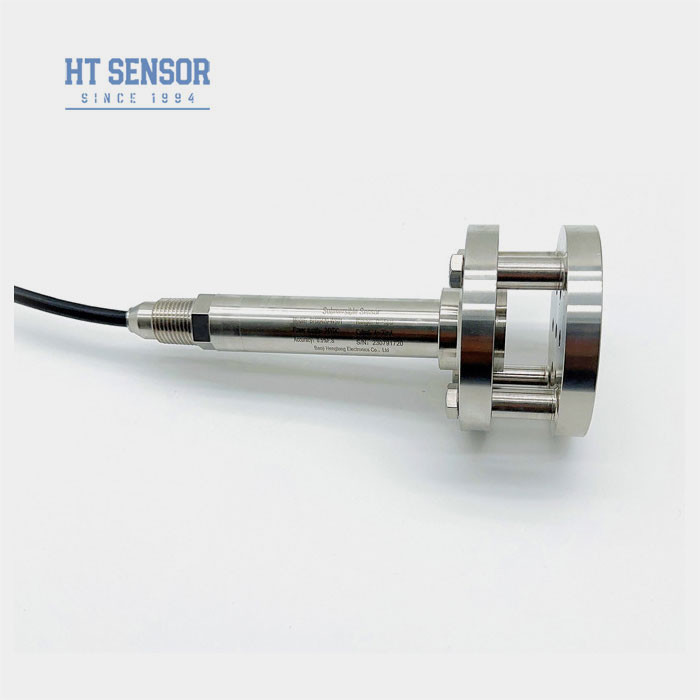

BH93420-WS Sewage Level Sensor
Introduction of liquied level transmitter:
BH93420-WS sewage level sensor has a rugged design with a full 316l stainless steel construction. It can convert the changes of various liquid level parameters into standard current signals and send them to the operation control room for centralized display, alarm or automatic control by secondary instruments or computers. Its good structure and installation mode, can be applied to high temperature, high pressure, strong corrosion, easy crystallization, anti-clogging, anti-cold bonding and solid powder, granular materials and other special conditions of liquid level, material level or material level continuous detection, can be widely used in various industrial process detection and control.
Product Features of liquied level transmitter:
| Performance Parameters of liquied level transmitter | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |

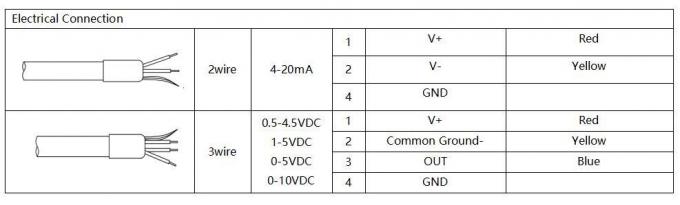

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Outline Construction |
| Selection Examples |
| Ordering tips |

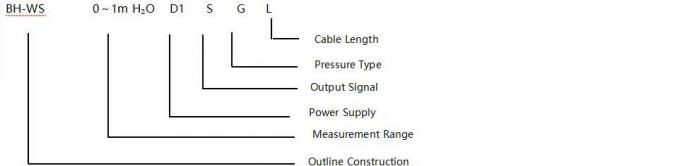

| Order Guide of liquied level transmitter | ||||||||
| BH | Code | Outline Construction | ||||||
| WS | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
| C3 | PTFE | |||||||
FAQ:
Q&A
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
