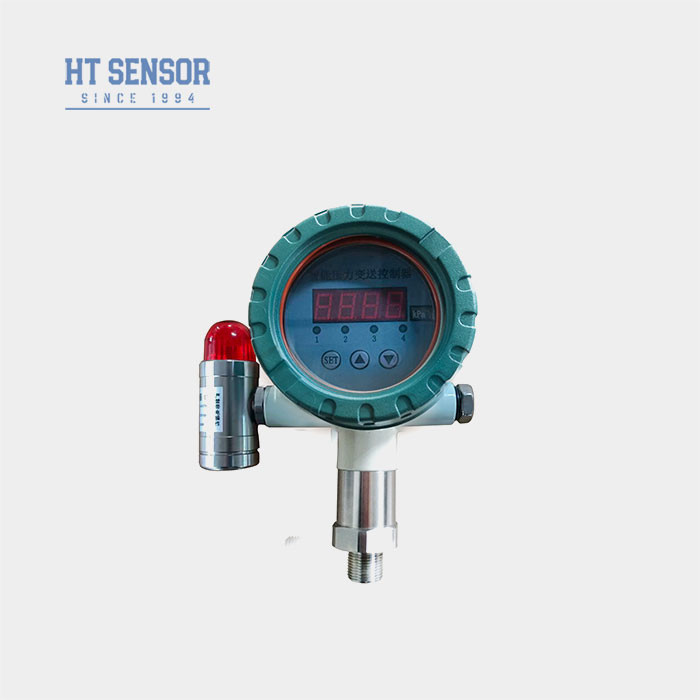

BPZK03-1 Intelligent Pressure Switch 116mm Dia Electronic Pressure Switch
Product Details
| Model NO.: | BPZK03-1 | Usage: | Control Switch |
|---|---|---|---|
| Application: | Commercial, Industrial, Vehicles | Thread: | G1/2 Or OEM |
| Output: | 4-20mA 3 WIRE | Dia: | 116mm |
| Switch: | 4 Ponit | Transport Package: | Carton |
| Range: | 0-10kpa~060mpa | Type: | Electronic |
| Switch: | 4 Point Control Switch | Structure: | Amplifier Built-in Type |
| Highlight |
BPZK03-1 Intelligent Pressure Switch,Intelligent Pressure Switch 116mm,116mm Dia Electronic Differential Pressure Switch |
||
Product Description
BPZK03-1116mm dia pressure controller Electronic Pressure Switch with 4 point controller from China
| Measurement Range | -0.1...0~0.01...~100MPa |
|---|---|
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Operating Temperature Range | -20ºC~80ºC |
| Storage Temperature Range | -40ºC~120ºC |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog output :4~20mA;Digital output :RS485 |
| Pressure port | M20×1.5 G1/2 or customize |
| Relay control | 1~4 way relay control AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999~9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluororubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
| Outline Construction of the electronic pressure switch | |
| Dimension | |
- Wide range, Full stainless steel.
- Various pressure point.
- ¢117mm profile.
- High light LED display.
- Marking:ExiaIICT6.
- Two supply power mode 24VDC or 220VAC,with RS485 communication interface.Audible and visual alarm device can be added.
- Can provide Max. 4 way relay control contact point.
- value of contact point and status of contact point can be set freely.
- Compatible with 316LSS,noncorrosive liquids.
- Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
| Ordering tips of the electronic pressure switch |
1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
