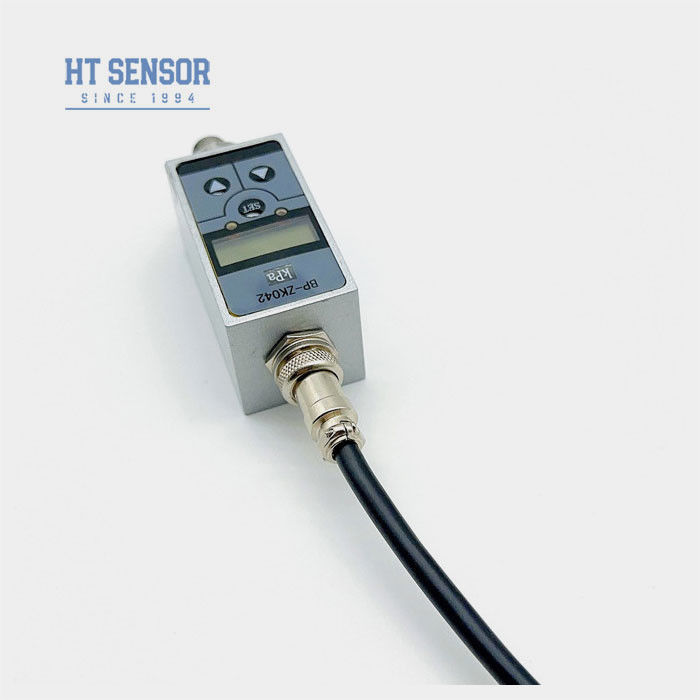

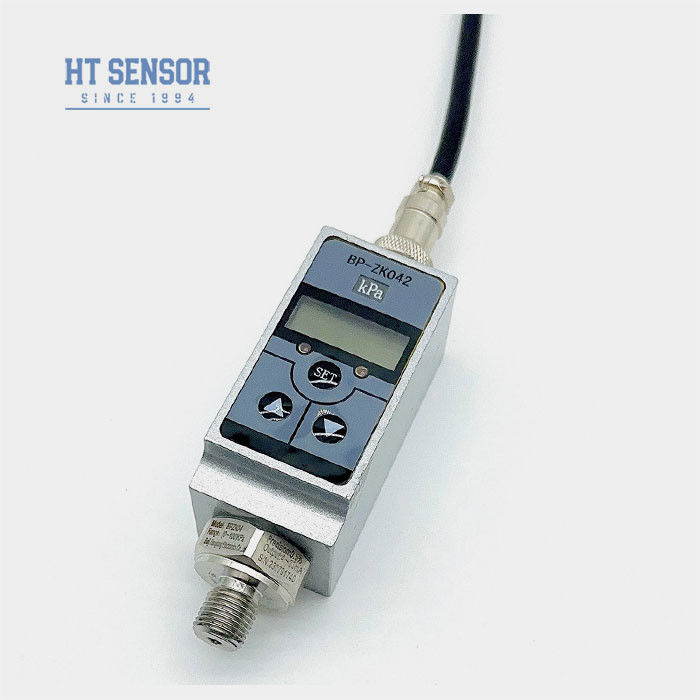

BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can be used as a signal device when the pressure of non-corrosive gases and liquids reaches a limit value, or as a circuit contact switch for a pressure regulator. The controller is small in size and light in weight, which is suitable for the intensive installation requirements of aircraft, ships and vehicles, and has the advantages of adjusting the operating pressure, convenient and accurate control, and can be directly installed in the field pipeline
Product Features :
- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Powered 24VDC.
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications :
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Performance Parameters of Electronic Pressure Switch |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability |
±0.3%F.S/year |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Relay Control |
1-2 channels of control or electronic switch quantity control |
| Contact Life |
Exceeds 100,000 cycles |
| Display Range |
-1999~9999 |
| Installation Method |
vertical axis installation |
| Explosion-proof Rating |
Intrinsically Safe |
| Protection Rating |
IP65 |
| Weight |
~0.3kg |
| Ordering tips of Electronic Pressure Switch |
1. When choosing products, please make sure that adapted to product contact parts of the measured medium.
2. When ordering, please indicate the power supply, precision level, number of control points, whether with RS485 interface.
3. The measuring range of flat diaphragm pressure controller is 0~35KPa... 20MPa.
4. For users who choose differential pressure measurement, attention should be paid to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chamber, and ensure that it meets the requirements of field application. In order to ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. In order to ensure reliable operation of the product, it is recommended to install lightning protection device on site and ensure reliable grounding of the product and power supply. In case of strong vibration, instantaneous impact force, strong electromagnetic interference, RF interference and other special requirements, please inform our company and indicate in the order.
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
