Model NO.: | BP157TC | Range: | 0~5bar ~50bar |
---|---|---|---|
Output: | 4-20mA /0.5-4.5Vdc/0-10VDC | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
Housing Material: | 304 Stainess Steel | Sensor: | Ceramic Sensor |
Measuring Medium: | Gas .liquid | Accuracy Grade: | 0.5% |
Connector: | Mini DIN | Customization: | OEM And ODM Customized Request |
Highlight: | Mini DIN Industrial Pressure Transmitter,Industrial Pressure Transmitter Oem,ODM Oem Pressure Sensor |

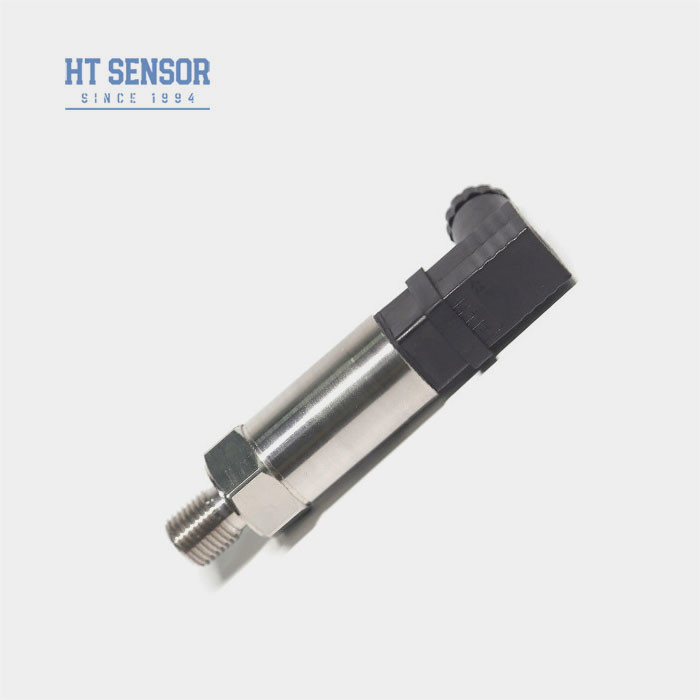

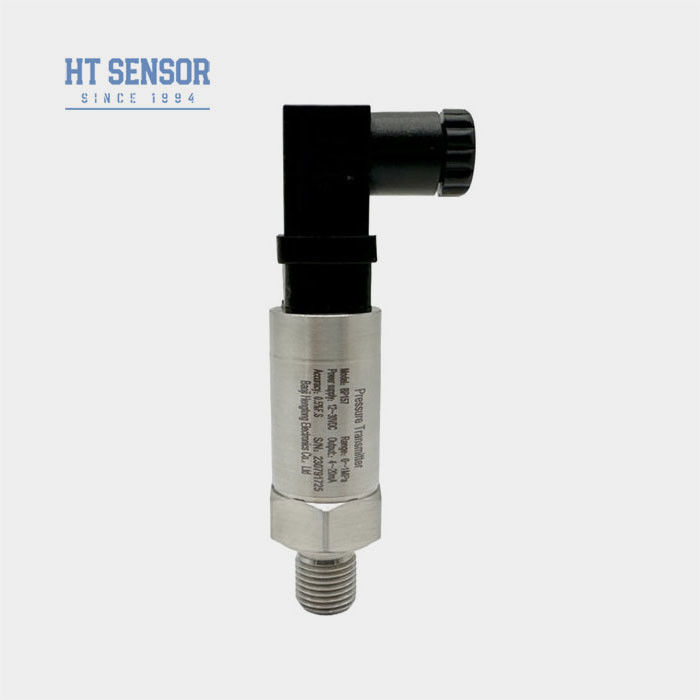

BP157TC mini DIN industrial pressure sensor transmitter uses Ceramic sensor as the signal measurement element.The signal processing circuit is located in the stainless steel shell, the sensor signal is converted into a standard output signal.Products through the components, semi-finished and finished products strictly detection and screening of ageing, to ensure stable and reliable performance.The mini DIN industrial pressure sensor transmitter adopts welded structure and is widely used in air conditioning, refrigeration and heat pump systems. Industry standard 4~20mA or 0.5~4.5V signal output, international electrical connector three-pin plug and standard pressure port. The product allows control and ensures that the system operates in safe and stable conditions.
Product Features of mini DIN industrial pressure sensor:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design
3. High precision, all stainless steel structure.
Applications of mini DIN industrial pressure sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
Performance Parameters of mini DIN industrial pressure sensor: | |
Measurement Range | 0kPa ~ 500kPa…5MPa |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Frequency Response | 2.4Khz |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Ex ia IIC T6 Ga |
Protection Rating | IP65 |
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC |
Selection Examples of mini DIN pressure transmitter sensor |
Ordering tips |
Order Guide | |||||||||
BP15X | Analog Pressure Transmitter | ||||||||
Code | Outline Construction | ||||||||
5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
(0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
Code | Power Supply | ||||||||
D1 | 24VDC | ||||||||
D2 | 5VDC | ||||||||
D3 | Other | ||||||||
Code | Output Signal | ||||||||
S1 | 4~20mADC | S5 | 0~20mADC | ||||||
S2 | 1~5VDC | S6 | 0~10VDC | ||||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
S4 | 0~10mADC | ||||||||
Code | Pressure Connection | ||||||||
J1 | M20×1.5 | ||||||||
J2 | G1/2 | ||||||||
J3 | G1/4 | ||||||||
J4 | 7/16-20UNF | ||||||||
J5 | Others(¢50.4 Flange) | ||||||||
Code | Electrical Connection | ||||||||
B1 | Hirschmann | ||||||||
B2 | PG7 | ||||||||
B3 | Cable Sealed Outlet 1.5 meters | ||||||||
B4 | Other | ||||||||
Code | Pressure Type | ||||||||
G | Gauge Pressure | ||||||||
A | Absolute Pressure | ||||||||
S | Sealed Reference Pressure |
