Mini DIN Industrial Pressure Sensor Transmitter 20Mpa High Temp Pressure Transducer
Product Details
| Model NO.: | BP157 | Range: | 0~10kpa~20Mpa |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc | Housing Material: | Stainess Steel |
| Pressure Type: | G/ A/Sealed Pressure | Type: | Industrial Pressure Sensor Transmitter |
| Sensor: | Diffused Silicon Pressure Sensor | Measuring Medium: | Gas And Oil Water |
| Accuracy Grade: | 0.5% | Customization: | Available |
| Connector: | Mini DIN | Thread: | G1/4 M20*1.5 Or OEM |
| Highlight |
Mini DIN Industrial Pressure Sensor,Industrial Pressure Sensor Transmitter 20Mpa,20Mpa High Temp Pressure Transducer |
||
Product Description

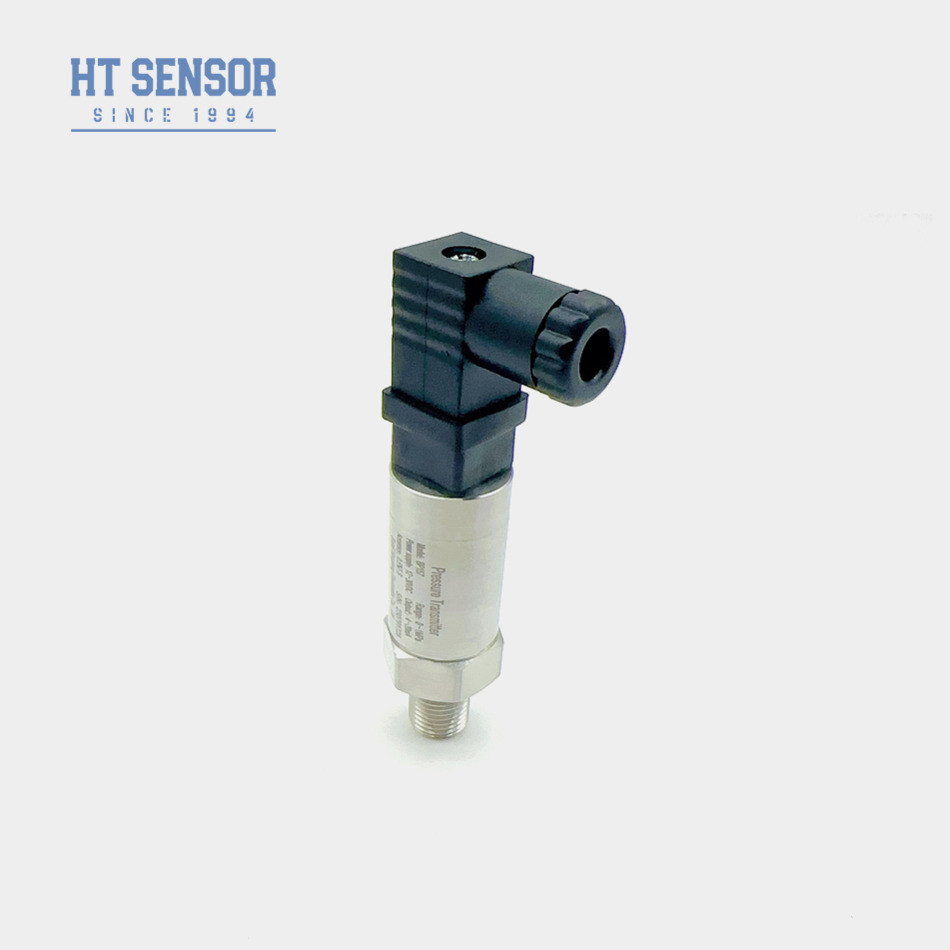

BP157 Mini DIN Industrial Pressure Sensor Transmitter level Measurement
BP157 Pressure Transmitter
Introduction of mini DIN Industrial pressure sensor transmitter :
BP157 mini DIN Industrial pressure sensor transmitter uses the our HT diffused silicon pressure sensor core as the signal measurement element. Our self-developed PCB convert sensor signals to standard output signals. Products are strictly controlled for each process detail, parts, semi-finished products, finished products are strictly tested and aging screening to ensure stable and reliable performance.In short, industrial pressure sensors are a top-of-the-line product that offers high precision, robustness and versatility for a wide range of industrial applications. Its advanced technology, durable construction and reliable performance make it an important tool for monitoring and controlling pressure levels in various industries.
Product Features of mini DIN Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini DIN Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
| Performance Parameters of mini DIN Industrial pressure sensor transmitter: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
