| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BP157 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP157 | Range: | 0~10kpa~20Mpa |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc/0.2-2.2VDC | Housing Material: | Stainess Steel |
| Pressure Type: | G/ A/S | Type: | Industrial Pressure Sensor |
| Sensor: | Diffused Silicon Oil-filled Pressure Sensor | Measuring Medium: | Air And Oil Water |
| Accuracy Grade: | 0.5% | Customization: | Available OEM And ODM |
| Connector: | Mini DIN | Thread: | G1/4 G1/8 Or OEM |
| High Light: | BP157 Industrial Pressure Sensor,Industrial Pressure Sensor Transmitter 20Mpa,BP157 Water Level Pressure Sensor |
||

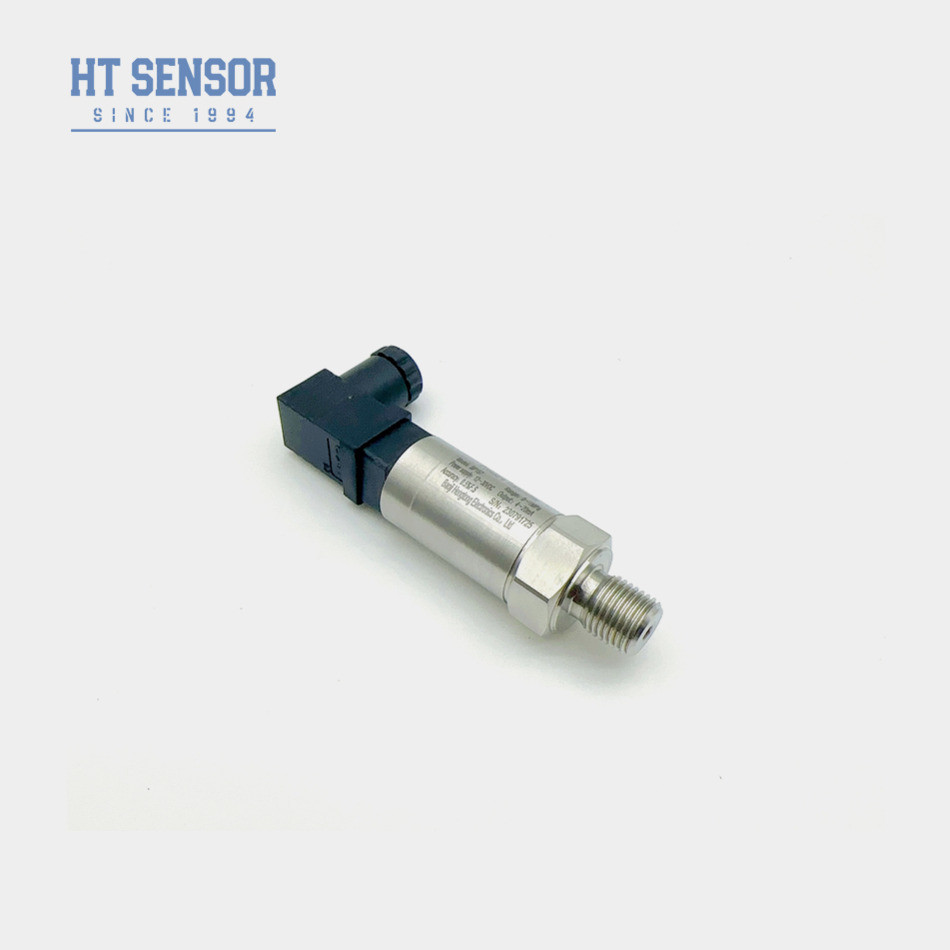

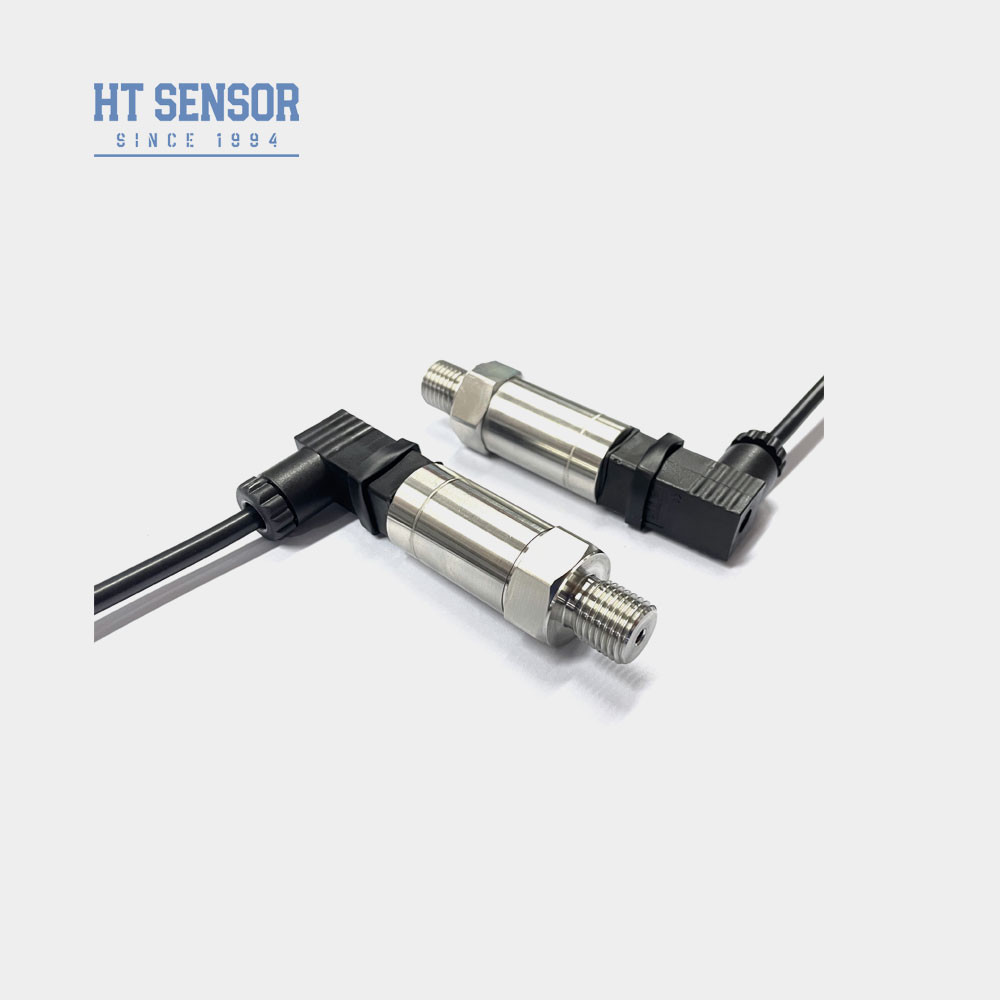

BP157 mini DIN Industrial pressure sensor transmitter is a rod-shaped small profile pressure transmitter. The high-reliability silicon piezoresistive pressure sensor is selected as the sensitive core, and after temperature compensation, digital circuit correction and signal conditioning, the output of standard industrial applications and network signals. Each product has been carefully designed, parts screening, process verification and curing, cyclic loading stress relief, aging, environmental simulation test and other processes to ensure that each product is stable and reliable.
Product Features of mini Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of mini Industrial pressure sensor transmitter: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
