| Model NO.: | HT-IQT-B | Range: | 0-35kpa~3.5Mpa |
|---|---|---|---|
| Wiring Type: | Gold-plated Kovar Pins Or 4 Wires | Measuring Medium: | Air And Liquid |
| Dia: | 50.4mm | Output: | 100mv+-30mv |
| Power: | 1.5mA | Type: | Diffused Silicon Pressure Sensor |
| Output Signal Type: | Analog | Material: | Stainless Steel |
| Customization: | Available | Customized Request | ||
| High Light: | 50.4mm Diffused Silicon Pressure Sensor,Diffused Silicon Pressure Sensor High Temperature,High Temperature Pressure Sensor For Liquid Test |
||
HT-IQT-B Piezoresistive Silicon Pressure Sensor
Introduction of high temperature diffused silicon pressure sensor:

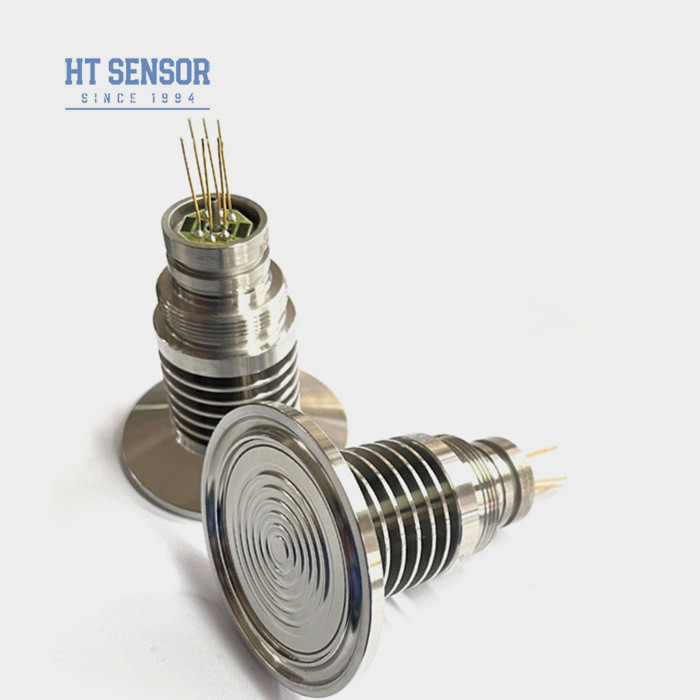

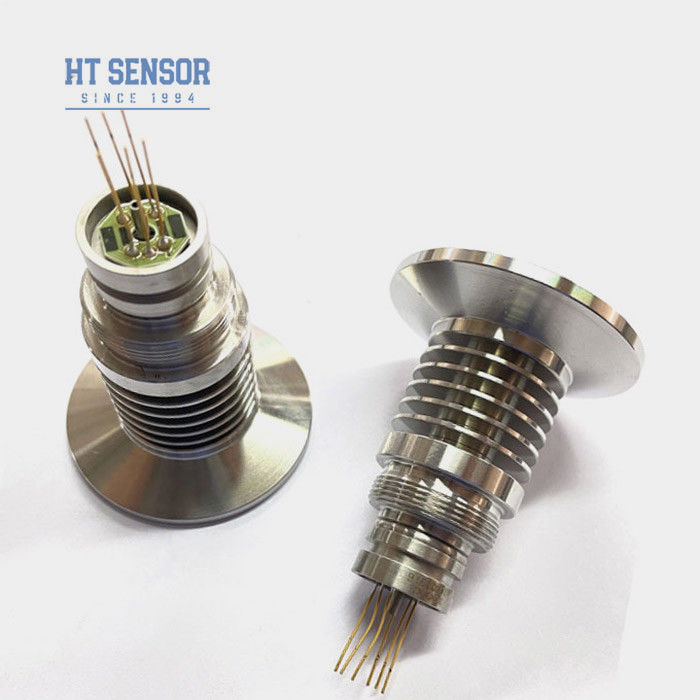

HT-IQT-B is a high temperature diffusion silicon pressure sensor, clamp pressure sensor using disposable silicone oil filling technology. The diaphragm is directly pressurized to prevent scaling, unsanitary and adhesive clogging. With heat sink structure, suitable for high temperature media measurement.Widely used in food, pharmaceutical, wine and other health industry and measuring medium may be contaminated.
Products of special construction and size can be customized. We has a mature batch production line, can complete the production task on time and quality.
| Performance Parameters of high temperature diffused silicon pressure sensor: | |||||
| Measurement Range | Gauge(G) | 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~220g | ||||
| The parameters are tested under the following conditions: 1.5mA @25°C | |||||
