Explosion Proof Smart Pressure Transmitter 24VDC Digital Pressure Sensor With Display
Product Details
| Model NO.: | BP93420-III Smart Pressure Transmitter | Pressure Range: | -100kpa...0kpa ~10kpa...100MPa |
|---|---|---|---|
| Accuracy Grade: | 0.25%F.S | Power Supply: | 12~36V, Standard 24V |
| Output Signal Type: | Analog/Digital | Pressure Type: | Gauge , Absolute Pressure, Sealed Pressure |
| Structure Type: | Smart Pressure Transmitter | Measuring Medium: | Liquid,Gas,Oil |
| Material: | Cast Aluminum Alloy | Warranty: | 2 Years |
| Highlight |
Explosion Proof Smart Pressure Transmitter 4mA,24VDC Smart Pressure Transmitter 20mA,24VDC Digital Pressure Sensor With Display |
||
Product Description
Explosion proof 4-20mA 24VDC Smart Pressure Transmitter Digital Pressure Sensor

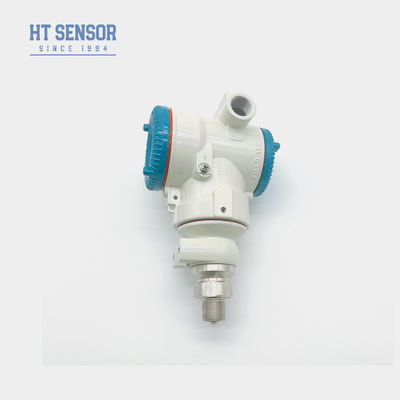

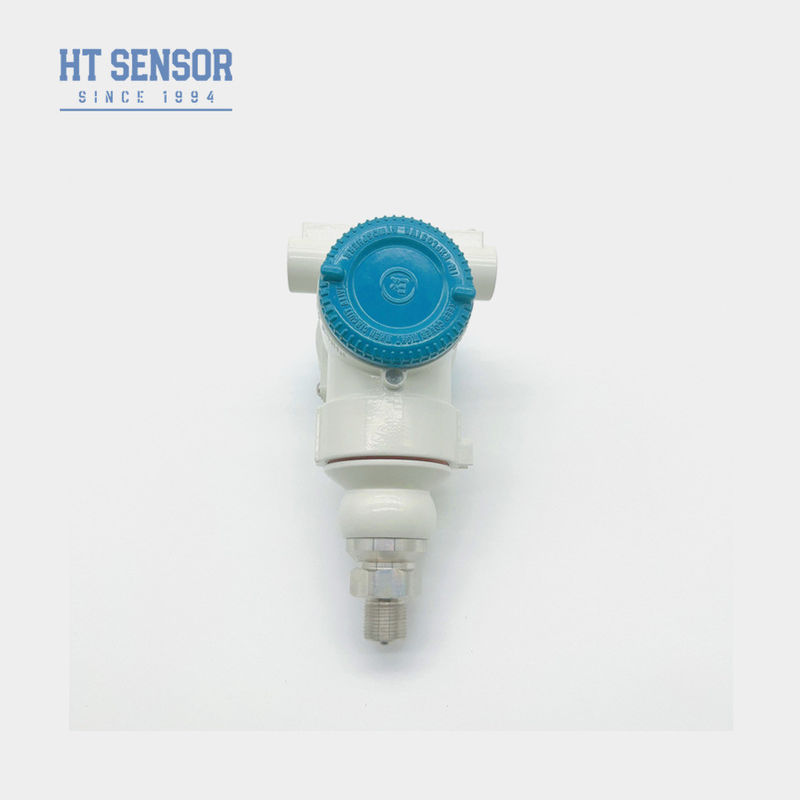

BP93420-III Smart Pressure Transmitter
Introduction of smart pressure transmitter:
The BP93420-III digital intelligent pressure transmitter is a versatile device that accurately measures the pressure of liquids, gases, or steam. It offers adjustable zero and full-scale settings, as well as a variety of output signal options to meet different application needs. With high levels of accuracy and stability, the BP93420-III ensures reliable and consistent pressure readings over time. Additionally, it is highly customizable and can be configured to meet specific requirements for range, accuracy, and output signal.
Product Features of smart pressure transmitter:
1. Wide measuring range
2. Various output signal forms
3. High precision
4.Explosion proof housing
Applications of smart pressure transmitter:
1. Petroleum and hydrology
2. Pressure measurement and control
3. General industry
4. Process control
| Performance Parameters of smart pressure transmitter | |
| Measurement Range | -100kPa…0kPa ~10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Aluminum Alloy |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
2. Note that explosion-proof type products do not include digital display heads.
3. If ordering transmitters with an LCD or LED display head, make sure that the power supply for the transmitter is not lower than 20VDC.
4.For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: Hirschmann, Packard, Direct lead?
