24V 0.1%F.S Sanitary Pressure Transmitter Smart Flat Diaphragm Pressure Sensor
Product Details
| Model NO.: | BP93420-IIIQT | Pressure Range: | -100kpa...0kpa ~35kpa...3.5MPa |
|---|---|---|---|
| Accuracy Grade: | ≤0.5%F.S | Long-Term Stability: | +-0.1%F.S/Year(Typ.) |
| Frequency Response: | 2.4kHz | Housing Material: | Aluminum Alloy |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Core Type: | Piezoresistive Silicon Pressure Sensor |
| Measuring Medium: | Liquid,Gas,Oil | IP Rating: | IP65 |
| Highlight |
0.1%F.S Sanitary Pressure Transmitter Smart,24V Sanitary Pressure Transmitter Smart,24V Flat Diaphragm Pressure Sensor |
||
Product Description

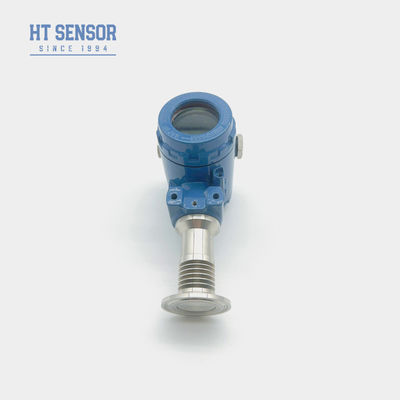

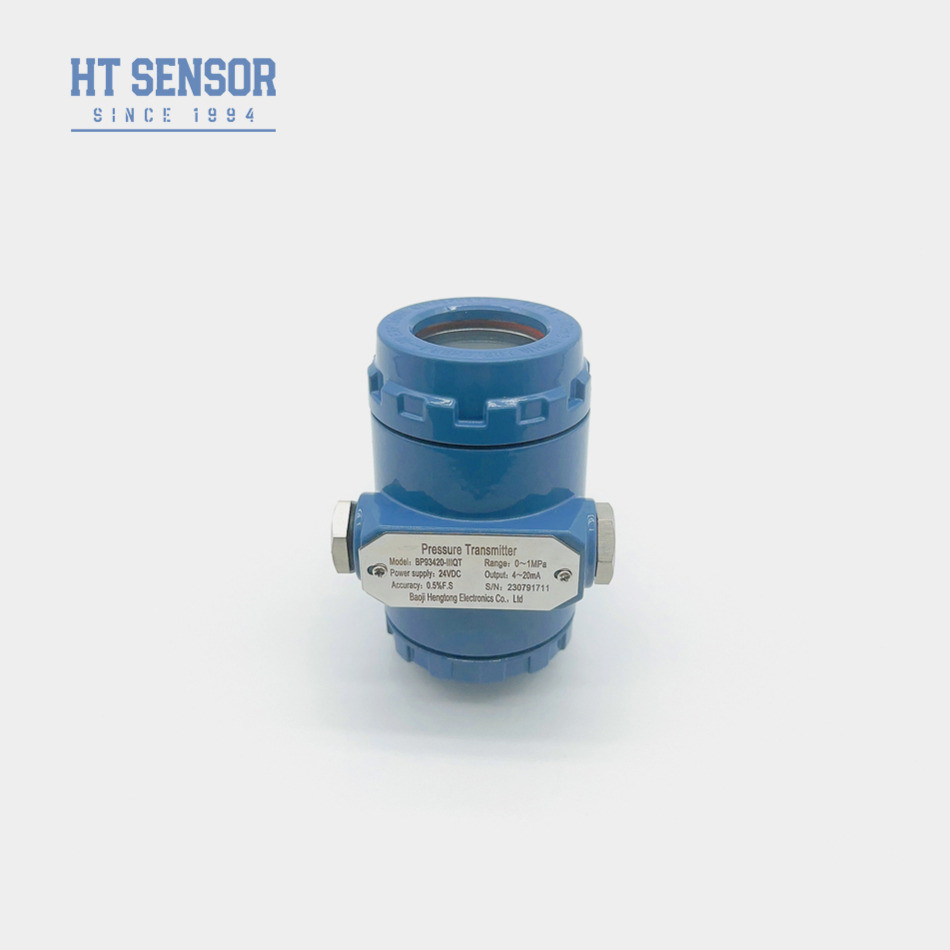

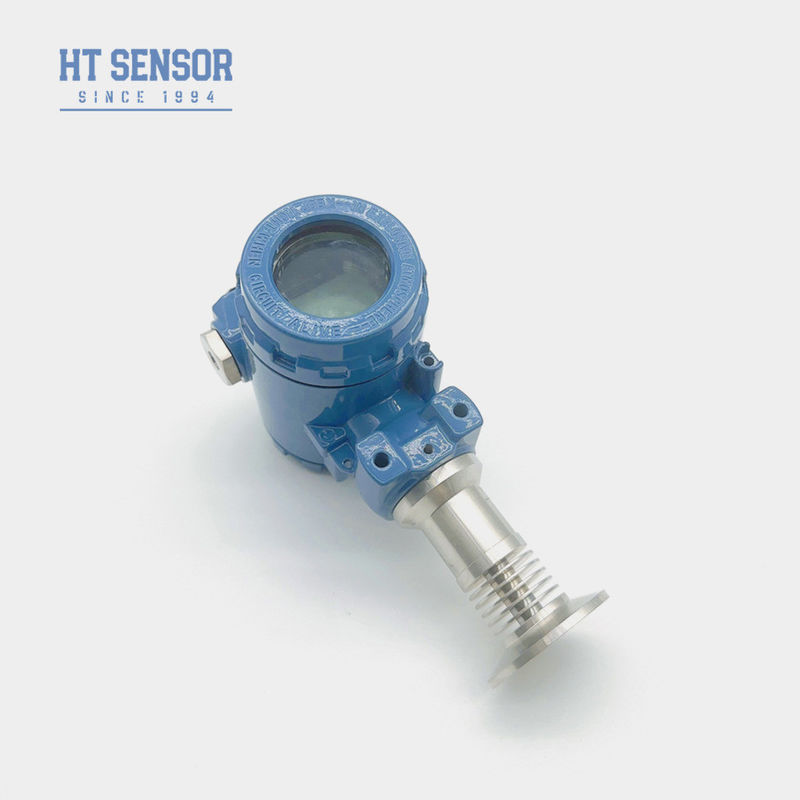

24V 0.1%F.S Sanitary Smart Pressure Transmitter Flat Diaphragm Pressure Sensor
BP93420-IIIQT Pressure Transmitter
Introduction of Smart Pressure sensor:
The BP93420-IIIQT pressure transmitter is equipped with an HT series silicon pressure-resistance isolation oil-filled core, which serves as the signal measuring element. It is designed with a full metal flush diaphragm and utilizes direct welding with the process connection, ensuring accurate and precise connections between the process connection and the measuring diaphragm. The product has undergone extensive testing to ensure stable and reliable performance, effectively preventing issues such as pressure hole blockage caused by crystallizing media.
Product Features of Smart Pressure sensor:
1. Wide measurement range,Various pressure interface options
2. Diverse output signal options
3. Adjustable zero and full-scale
4. High accuracy,multiple sterile process connections
Applications of Smart Pressure sensor:
1. The pressure transmitter is designed to measure the pressure of non-corrosive gases and liquids using 316L.
2. It is commonly used in the medical, biopharmaceutical, and food hygiene industries for sterile processing applications.
3. This transmitter is also useful in the paper and chemical industries, as well as for sewage level and beverage can pressure measurements. It can be used in hydraulic and pneumatic control systems for precise pressure measurement and control.
| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
Q: What are the key features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are known for their high precision, durability, and exceptional performance. We also offer customization options to meet specific requirements.
Q: Can I request custom specifications for the transmitters?
A: Yes, we provide OEM and ODM services to accommodate special specifications.
Q: What is your production capacity for pressure sensor transmitters?
A: Our manufacturing facilities have a monthly production capacity of up to 30,000 units.
Q: What is the typical delivery timeframe for your products?
A: For standard models, the delivery period is usually 5~8 working days. However, customized products may have varying lead times.
Q: How are your products priced? Do you offer any discounts?
A: We offer competitive pricing for our products and provide discounts for bulk orders or long-term partnerships.
Q: What is the warranty period for your products? How about after-sales service?
A: Our products come with a warranty period of 24 months from the shipment date. Our responsive after-sales team is available to address any inquiries within 24 hours.
