Copper Tube Silicon Pressure Sensor Gas Pressure Measurement Sensor

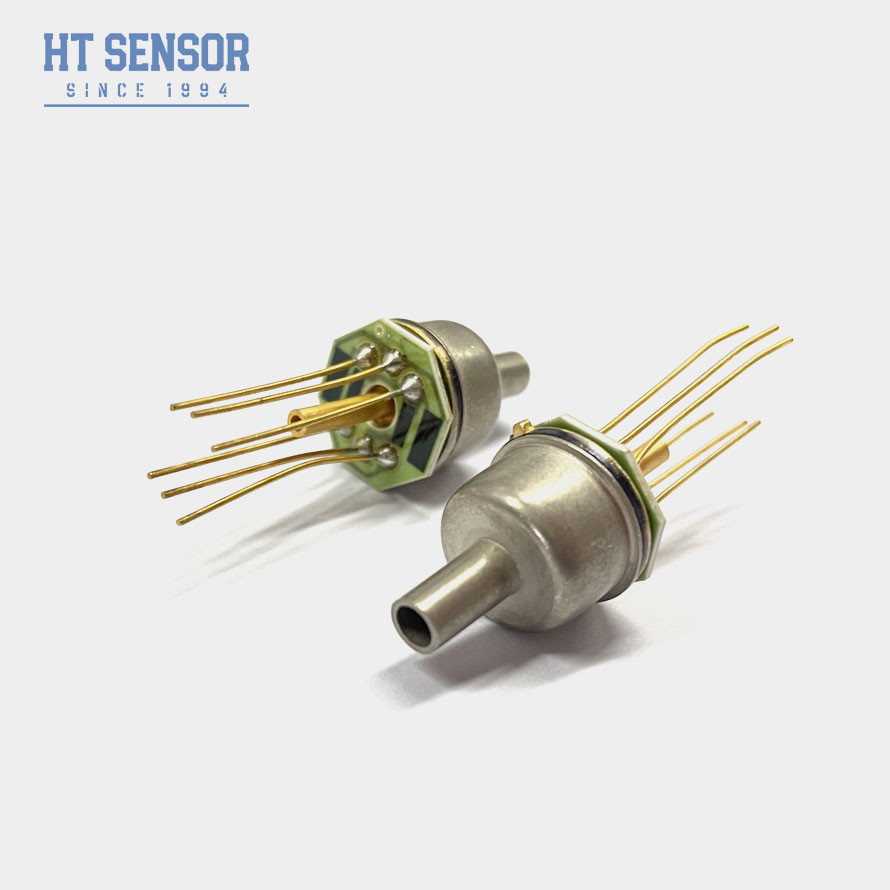

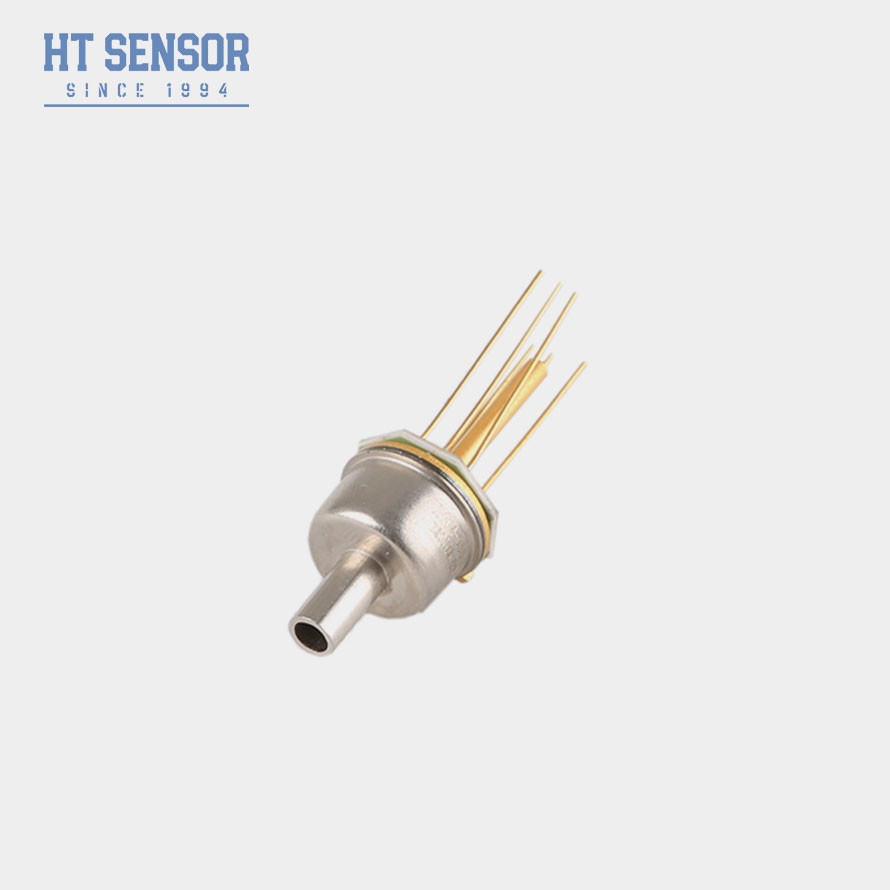

HT12 Silicon Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:

HT12 silicon piezoresistive pressure sensor is a highly stable diffusion silicon element packaged in advanced TO8 packaging technology. The non-oil-filled core avoids the profile error and significantly improves the stability of the small range. Therefore, it has a good effect on the measurement of dry non-corrosive gas pressure.
Product  Features of silicon pressure sensor:
  1. The measurement range is wide from 0 to 10KPa to 2Mpa.
  2. High reliability, good stability.
  3. TO8 encapsulation technology.
  4. Aerospace applications.
Baoji Hengtong To8 Pressure Sensor for Dry Air Test

Applications of silicon pressure sensor:
  1. Dry, non-corrosive gas pressure was measured.
  2. The pneumatic control systemMedical applications of biomedical engineering.
  3. Hvac (HVAC) controls.
  4. Aerospace aviation related to the purpose of experiment.
Electrical performance of silicon pressure sensor:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance:3KΩ~6KΩ
  3. Output Impedance:2.5KΩ~6KΩ
  4. Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
Performance Parameters of silicon pressure sensor:
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
  Typ Max Unit
Linearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift   ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
Weight ~12.5g
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C
Copper Tube Silicon Pressure Sensor Gas Pressure Measurement Sensor 1Copper Tube Silicon Pressure Sensor Gas Pressure Measurement Sensor 2
Outline Construction
Dimension Baoji Hengtong To8 Pressure Sensor for Dry Air Test
Electrical connection and compensation
Baoji Hengtong To8 Pressure Sensor for Dry Air Test

Ordering tips
1. During assembly, attention should be paid to the coordination between the core size and the transmitter housing to achieve the required tightness.
2. During the housing assembly process, ensure that it is vertically aligned and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the medium under test is incompatible with the chip and housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the inside of the sensor with hands or sharp objects to avoid deformation or puncture of the diaphragm and damage to the core.
5. Keep the pressure port of the gauge core open to the atmosphere to prevent water, water vapor or corrosive media from entering the negative pressure chamber of the gauge core.
6. If any pin changes, refer to the label on the actual core wire.
