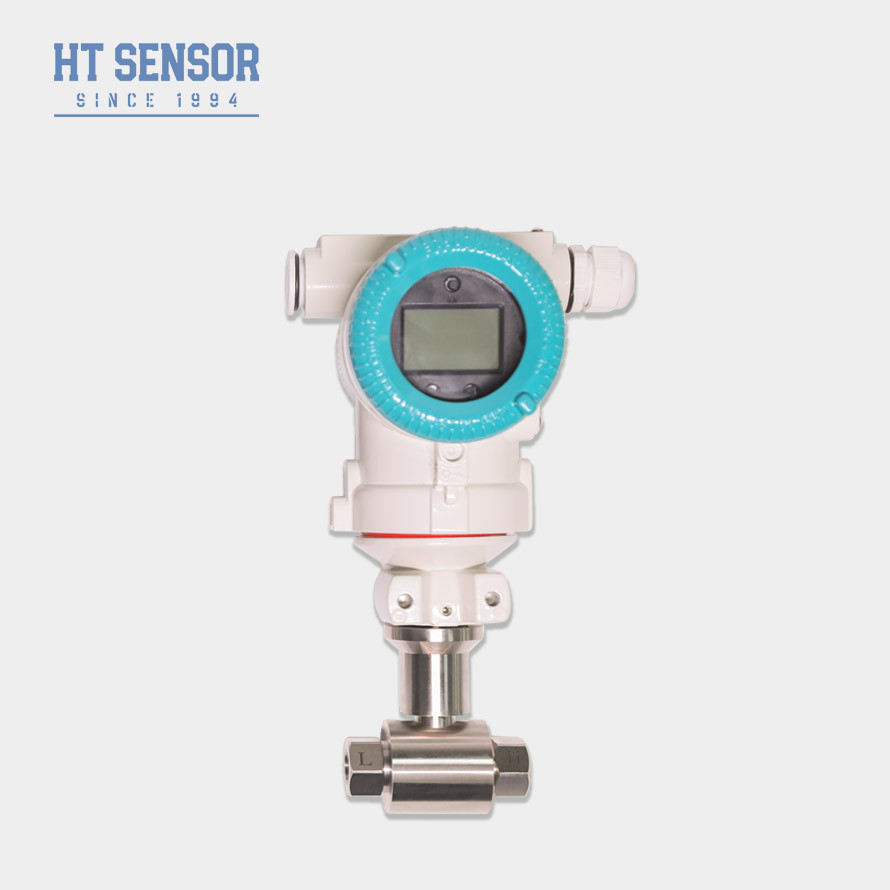

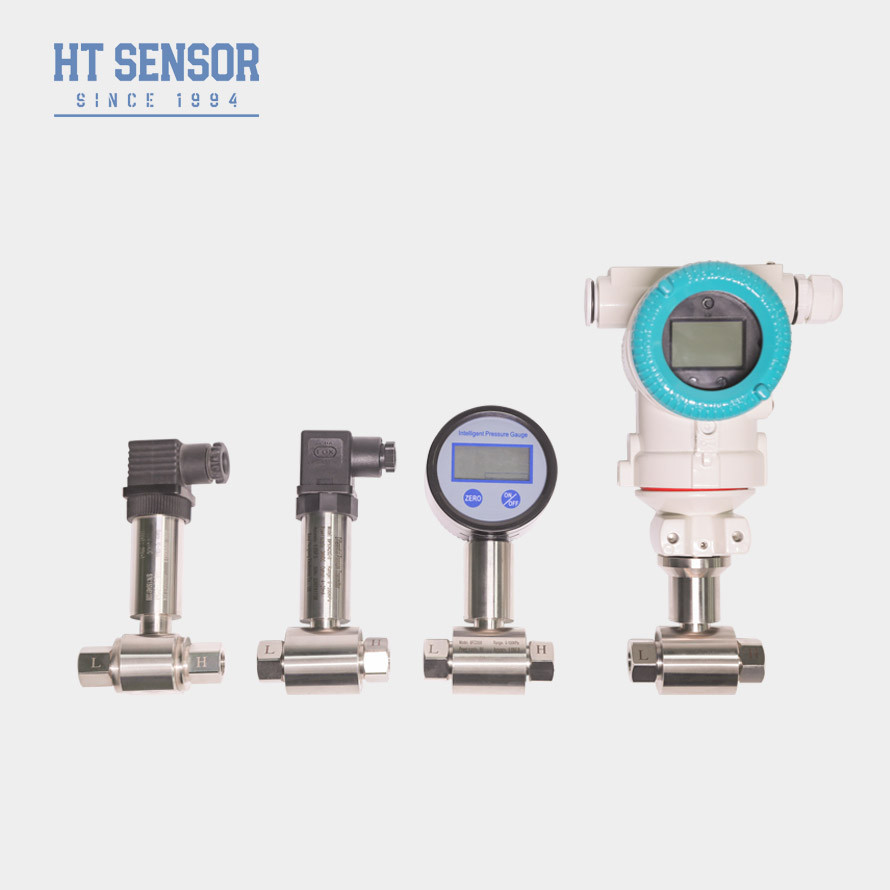

BP93420D-IIIA Differential Pressure Transmitter With Display EX Proof Sensor
BP93420DIII Differential Pressure Transmitter
Introduction of differential pressure transmitter sensor:
BP93420-IIIA differential pressure transmitter is designed for industrial applications to measure the differential pressure values of liquids or gases. A variety of explosion-proof function options, intrinsically safe, dust intrinsically safe, flameproof, flameproof dust type, and can also choose HART protocol communication, cost-effective.
Product Features of differential pressure transmitter sensor:
Applications of differential pressure transmitter sensor:
| Performance Parameters of differential pressure transmitter sensor | |
|---|---|
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0.5～4.5V | 5VDC |
| Ordering tips of differential pressure transmitter sensor |
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
| Order Guide of differential pressure transmitter sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
