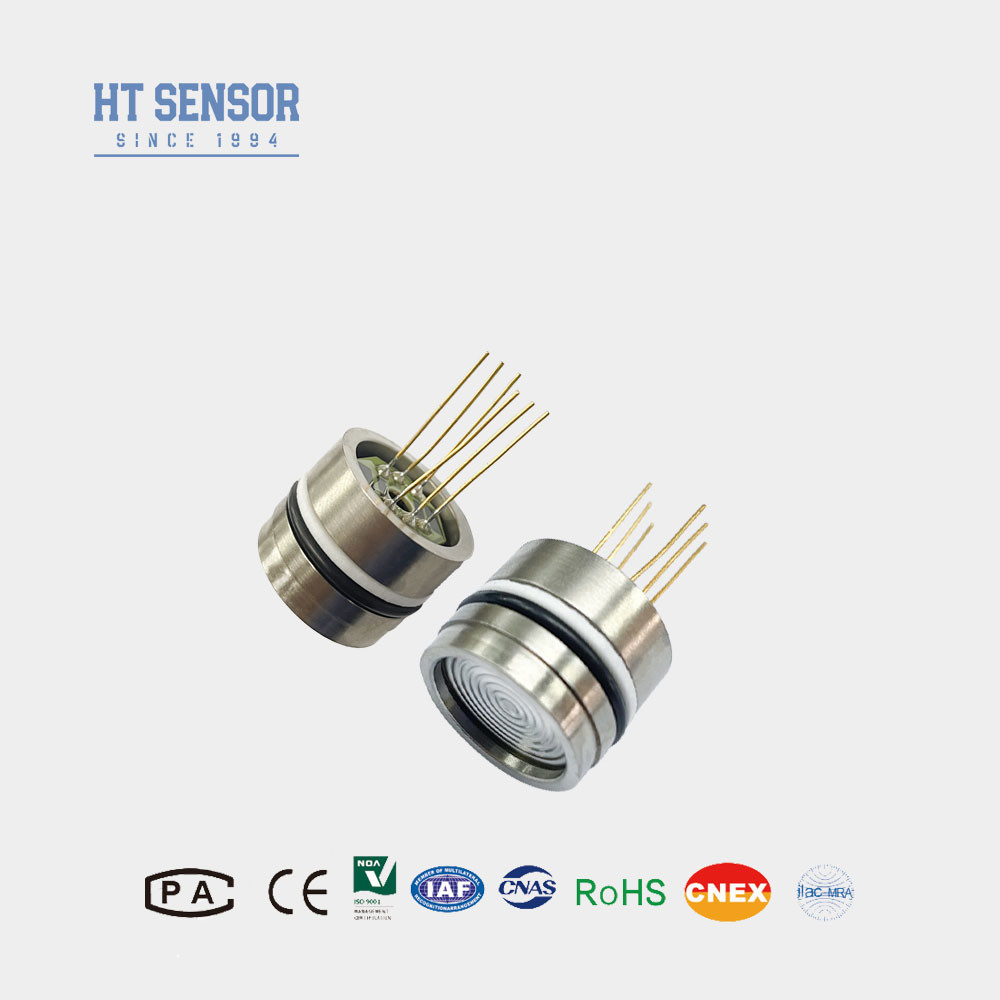

HT19F Diaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor Manufacture Stainless Steel

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: RoHs,ISO9001
Model Number: HT19
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Material: 316L Min Range: 10kpa
Max Range: 60MPa Supply: 1.5mA

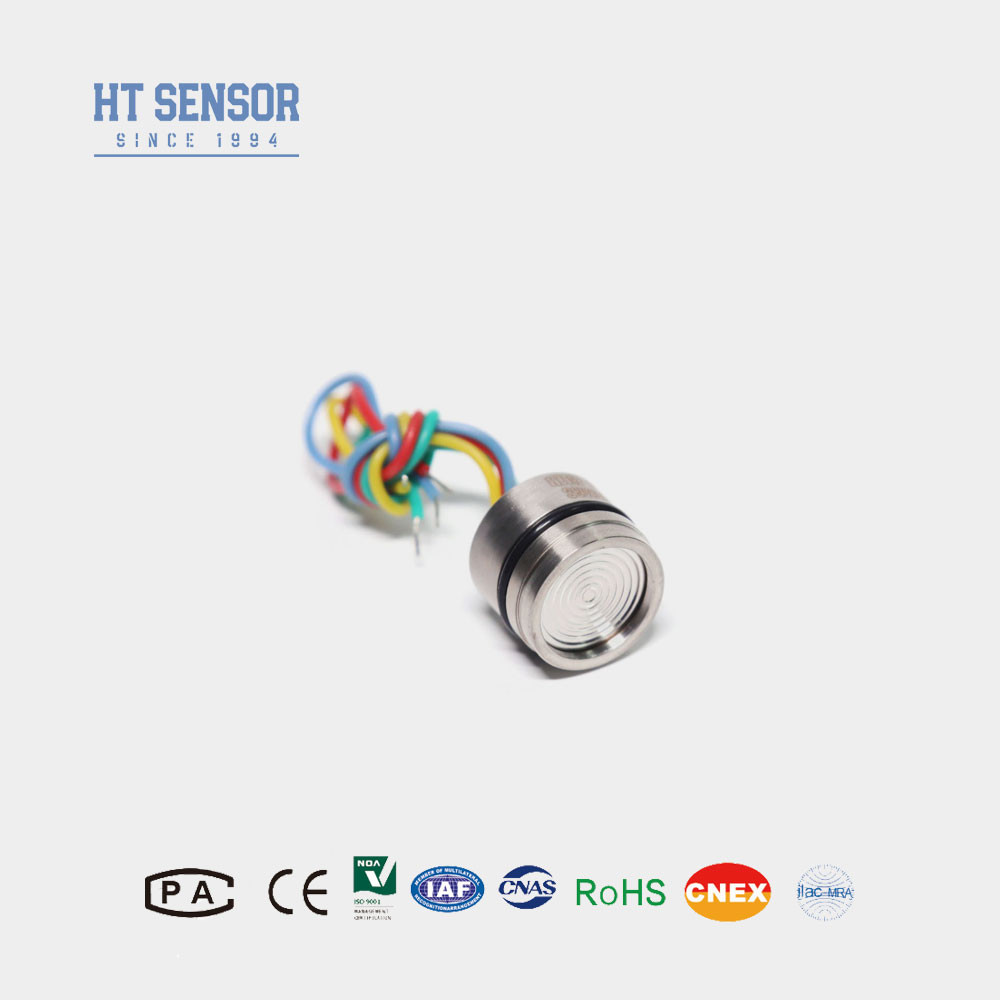

Output: 100mv+-30mv Selectable: Four-color Silicone Wire Or Gold-plated Pin
Model: HT19 High: 12mm
Oil: Difusion Silicon Thread: No

Product Description

HT19F Piaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor manufacture

HT19F Silicon Pressure Sensor



Introduction of silicon pressure sensor:



HT19F piezoresistive silicon pressure sensor, the main component is a high stability diffuse silicon sensing element.Sensor encapsulation using silicone oil pressure from 316 l stainless steel diaphragm to the sensing element.Piezoresistive pressure sensor using international advanced high stability, high precision silicon pressure chip, the use of optimized stress design of the sintered base, SMT, gold wire bonding, diaphragm welding, high vacuum coating, pressure cycle stress elimination, high temperature aging, temperature compensation and other processes.With more than 30 years of development, production experience and technical innovation, the products have excellent stability and performance, widely recognized by users.

Product Features of silicon pressure sensor:

  • Wide measurement range:0~10KPa~100Mpa
  • Piezoresistive silicon sensing element
  • Full316LSS,Full Titanium or Hastelloy diaphragm
  • O-ring mount
  • High Accuracy and stability.

Applications of silicon pressure sensor:

  • Measurement pressure of gas and liquid
  • Petroleum exploitation
  • Water supply,warm supply of town
  • Process control system
  • Aviation and navigation inspection
  • Hydraulic pressure



Electrical Data of silicon Pressure sensor



Supply:1.5mADC

Input impedance:3KΩ~6KΩ

Output impedance:2.5KΩ~6KΩ

  Insulation resistance:≥100MΩ/50VDC

Insulation voltage:500VAC between the housing and electrical connection will not cause damage

Medium compatible: liquid, gas compatible with 316L stainless steel



Performance Specification of silicon Pressure sensor

Performance Parameters:
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPaS,100MPaS
  Typ Max Unit
Linearity ±0.15 ±0.3 %F.S
Repeatability 0.05 0.1 %F.S
Hysteresis 0.05 0.1 %F.S
Zero Offset Output 0±1 0±2 mV
Full Scale Output ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50
≥35kPa 0~70
Operating Temperature -20~80
Storage Temperature -40~125
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 % F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~28g
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C

Dimension

HT19F Diaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor Manufacture Stainless Steel 0



HT19F Diaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor Manufacture Stainless Steel 1

HT19F Diaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor Manufacture Stainless Steel 2HT19F Diaphragm Silicon Pressure Sensor Cell Piezoresistive Sensor Manufacture Stainless Steel 3

NOTE:



1. During assembly, pay attention to the coordination of the core size and the transmitter housing to achieve the required air tightness.



2. During the housing assembly process, ensure that it is vertically aligned and apply even pressure to avoid jamming or damaging the compensation plate.



3. If the medium under test is incompatible with the core diaphragm and housing material (316L), special instructions should be provided when placing the order.



4. Avoid pressing the sensor diaphragm with hands or sharp objects to avoid deformation or puncture of the diaphragm and damage to the core.



5. Keep the pressure port of the gauge core open to the atmosphere to prevent water, water vapor or corrosive media from entering the negative pressure chamber of the gauge core.



6. If there is any change in the pin, please refer to the label on the actual product.
