Oil Filled Flush Diaphragm Pressure Sensor Transmitter Clean and hygienic Liquid Test

BP93420-IIIQ Pressure Transmitter

Introduction of flush diaphragm pressure sensor:

BP93420-IIIQ film pressure sensor transmitter is a simulation of pressure transmitter, using flat film structure, increasing the contact area with the medium.Wide temperature range, strong overload capacity, strong corrosion resistance, wide application. Simple structure, easy to clean, especially suitable for liquid food pressure measurement.


Performance Parameters of Flush Diaphragm Pressure Sensor
Measurement Range of Flush Diaphragm Pressure Sensor -100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ≤0.1%FS
Hysteresis ≤0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex ia IIC T6 Ga
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg

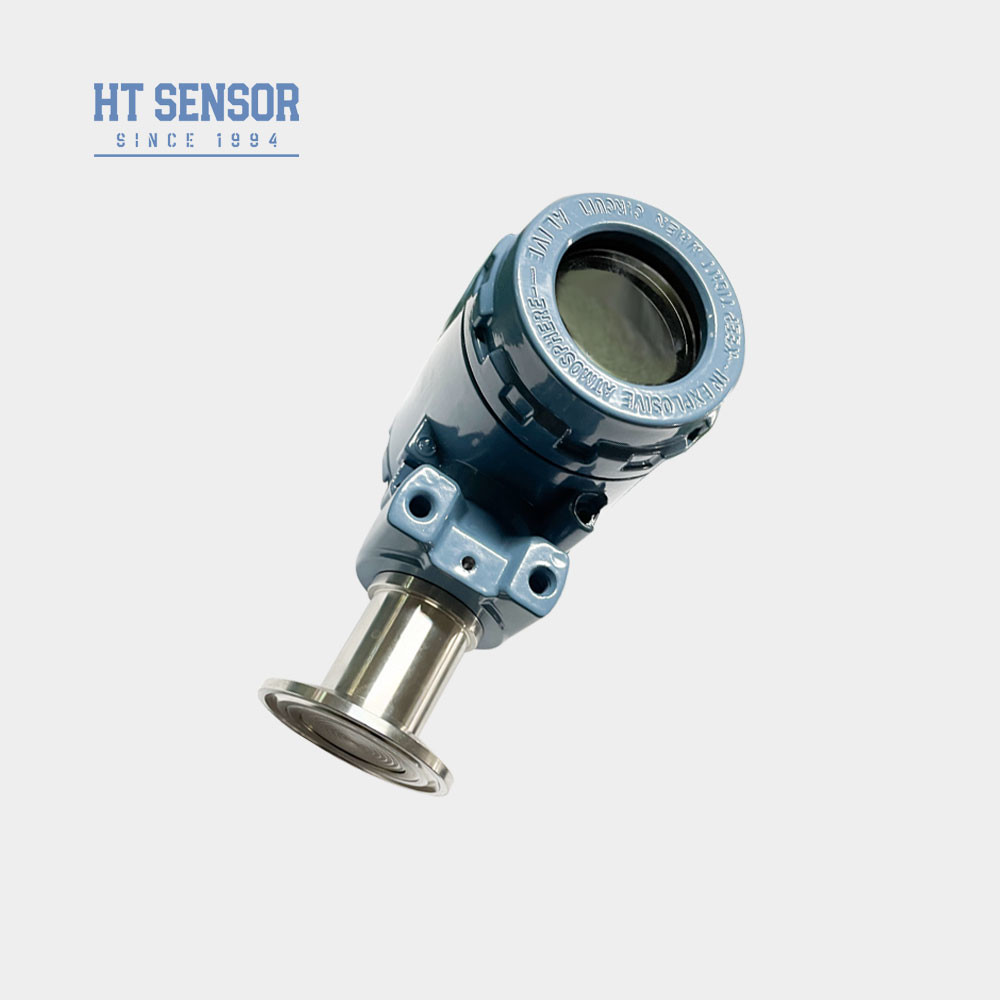

Oil Filled Flush Diaphragm Pressure Sensor Transmitter Clean And Hygienic Liquid Test 0

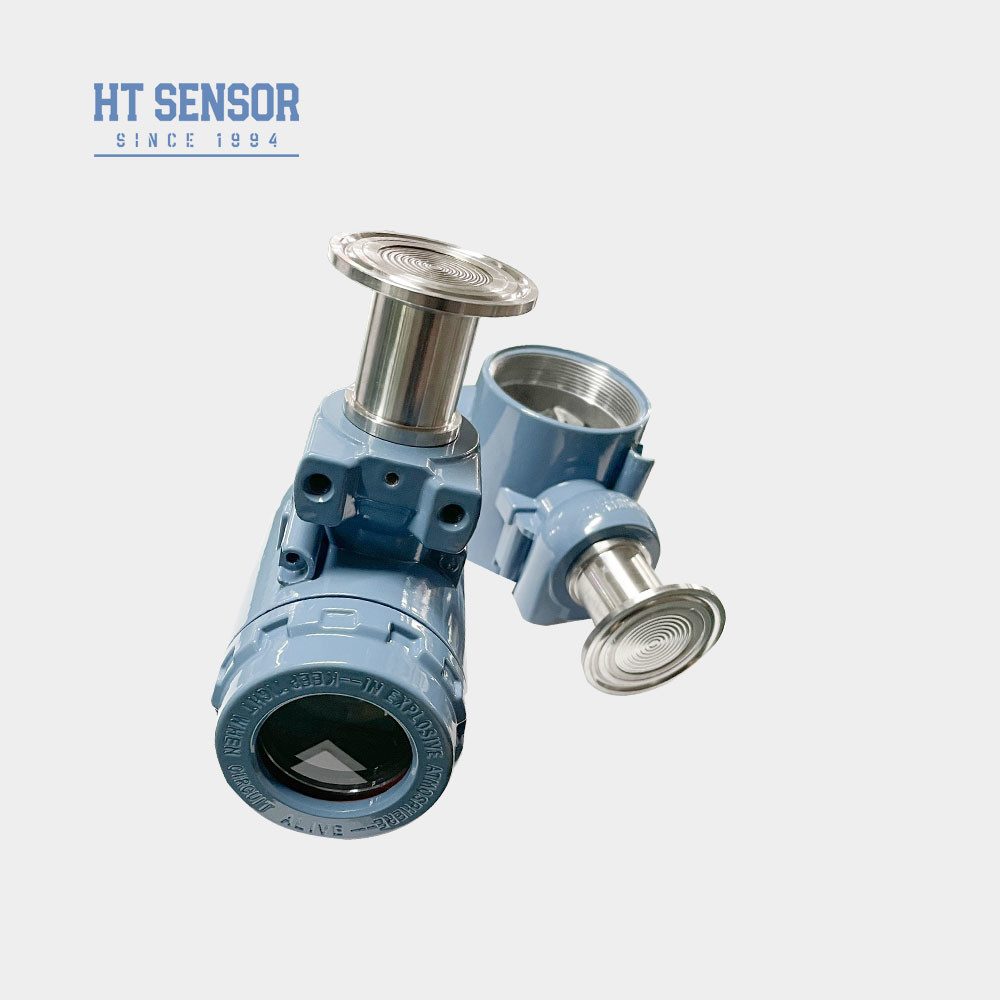

Oil Filled Flush Diaphragm Pressure Sensor Transmitter Clean And Hygienic Liquid Test 1

Oil Filled Flush Diaphragm Pressure Sensor Transmitter Clean And Hygienic Liquid Test 2

Product Features of flush diaphragm pressure sensor:

  • 1. Wide measurement range,Various pressure interface options
  • 2. Diverse output signal options
  • 3. Adjustable zero and full-scale
  • 4. High accuracy,multiple sterile process connections

Applications of flush diaphragm pressure sensor:

  • 1. Suitable for measurement of non-corrosive gases and liquids with 316L.
  • 2. Used for aseptic processing in medical, biopharmaceutical, food hygiene and other industries.
  • 3. Used in the paper and chemical industries, as well as in sewage level and beverage tank pressure measurement, suitable for hydraulic and pneumatic control systems​.
Output Signal oflush diaphragm pressure sensor Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
3 wire
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
Hengtong 4-20mA Sanitary Clamp Type Smart Pressure Transmitter

Hengtong 4-20mA Sanitary Clamp Type Smart Pressure Transmitter

Hengtong 4-20mA Sanitary Clamp Type Smart Pressure Transmitter

Ordering tips oflush diaphragm pressure sensor
  • 1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
  • 2. When placing an order, please note that explosion-proof products do not include digital display heads.
  • 3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
  • 4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
  • 5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
  • 6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
  • 7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.​
Order Guide of  flush diaphragm pressure sensor
BP93420XX Pressure Transmitter
  Code Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
  Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
  Code Power Supply
D1 24VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Hengtong 4-20mA Sanitary Clamp Type Smart Pressure Transmitter


FAQ of flush diaphragm pressure sensor:

1. Q: What are the features of your flush diaphragm pressure sensor transmitters?
    A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
    A: Yes, our engineers can customize products to meet specific needs.We provide OEM and ODM services.

3. What is your production capacity?
   A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the demand for large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
   A: 5~8 working days for standard model. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
   A: Competitive prices, discounts for bulk orders or long-term partners.
6. Q: What is the warranty period of your product? What about after-sales service?
   A: Our warranty period is 24 months after delivery, reply to your question within 24 hours after sale, remote guidance through the PC network at any time.
