| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | ISO9001 |
| Model Number: | BP155 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP155 | Housing Material: | 304S.S Or 316L Or OEM |
|---|---|---|---|
| Pressure Type: | Gauge, Absolute , Sealed Pressure | Sensor: | Silicon Pressure Sensor / Ceramic Sensor |
| Trademark: | HTsensor | Type: | Pressure Sensor |
| Measuring Medium: | Gas And Liquid | Accuracy Grade: | 0.5%F.S 0.25%F.S |
| Pressure Range: | 0kpa~10kpa...20MPa | Customization: | OEM And ODM |
| High Light: | Gas Measurements Industrial Pressure Sensor,Liquid Measurements Industrial Pressure Sensor |
||

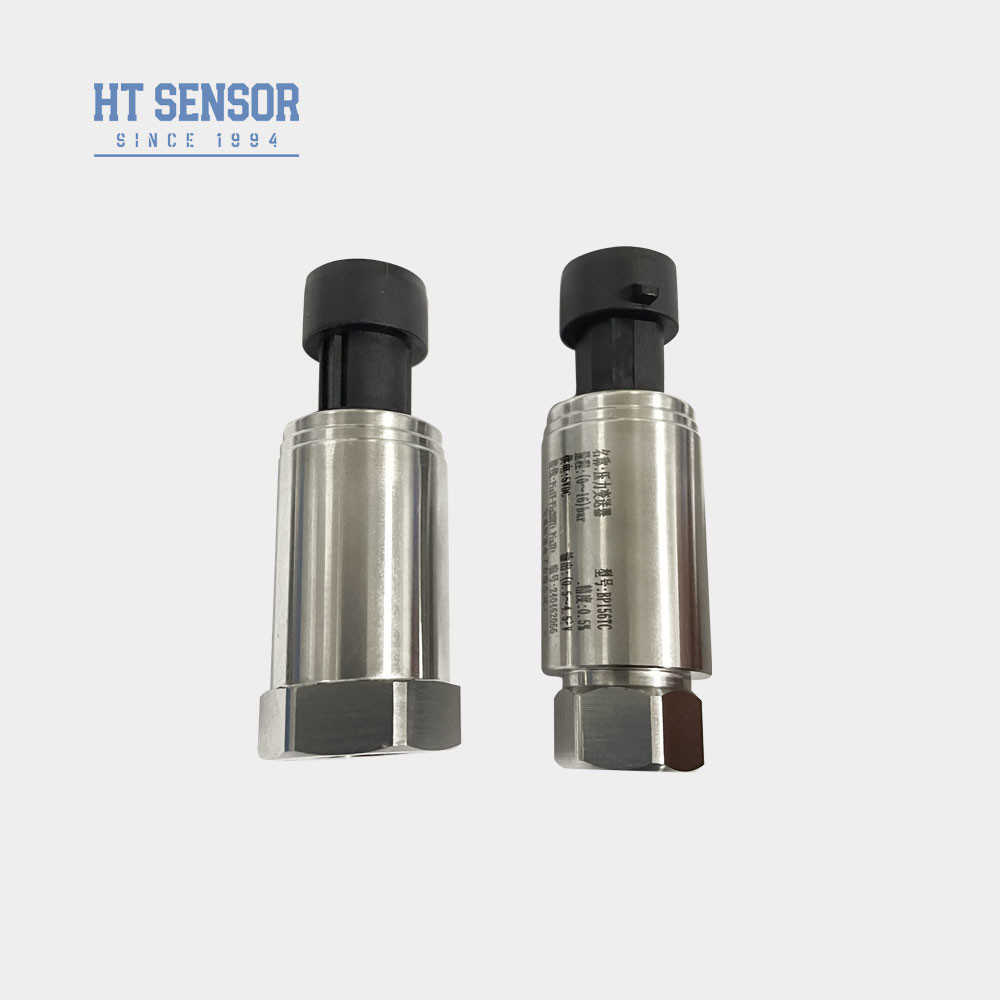

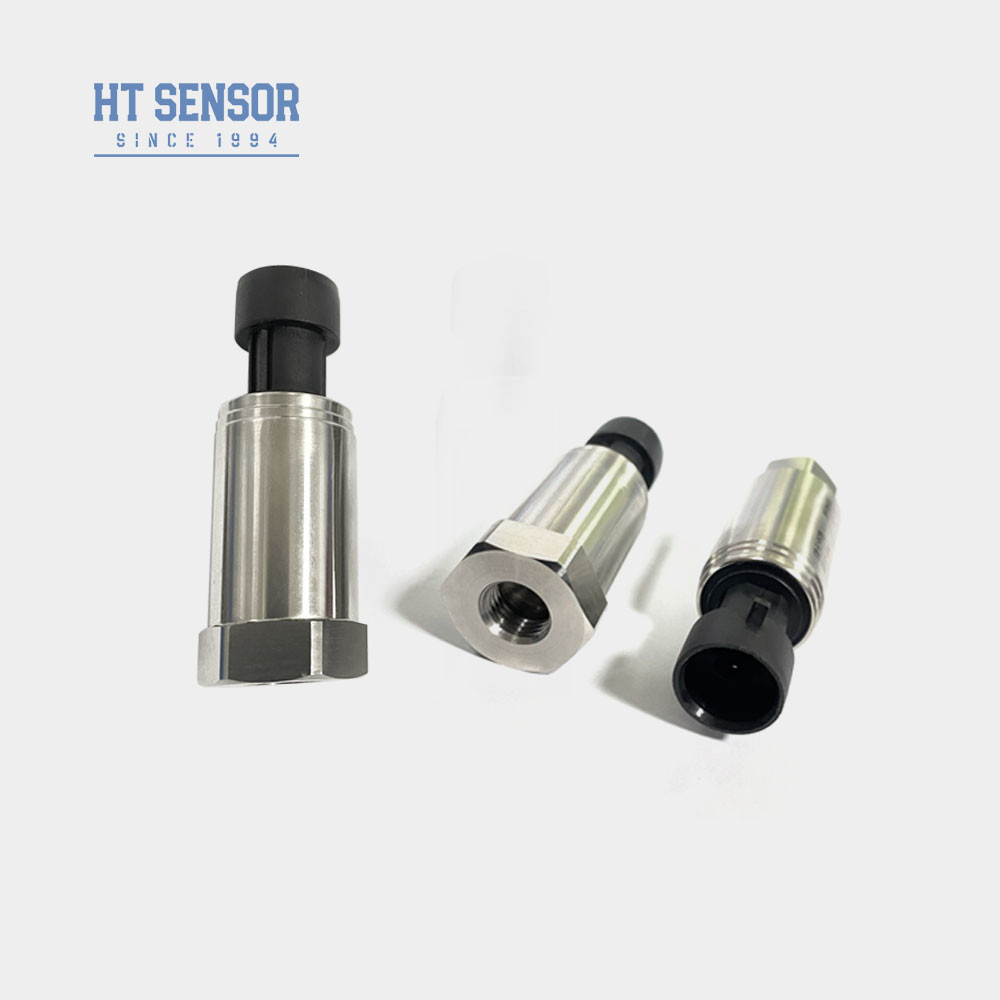

BP155 Pressure SensorTransmitter
Introduction of Industrial pressure sensor transmitter :
BP155 small size industrial pressure sensor transmitter is a high performance/price ratio pressure transmitter launched by our company. It adopts a flat film structure sensor core and a specially customized amplifier circuit. After linear correction and temperature compensation, it can meet the pressure measurement and control needs under various environmental conditions.Batch production by automatic production line, the parameters are strictly controlled.The whole product has passed the strict testing and aging screening of components, semi-finished products and finished products. The product has good consistency, anti-interference, strong anti-overload ability and high stability.
BP155 pressure transmitter has anti-polarity protection, can work stably and reliably for a long time, and is widely used in air conditioning, refrigeration, compressor, automatic production line, pneumatic hydraulic control and other fields.
Product Features of Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
Applications of Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial pressure sensor transmitter: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
1. When selecting a product, ensure that the media is compatible with the process fluid in contact with the product under test.
2. When placing an order, please note that explosion-proof products do not come with digital displays.
3. When ordering a transmitter with an LCD or LED display head, ensure that the power supply of the transmitter is at least 20VDC.
4. To ensure reliable operation of the product, it is recommended to install lightning protection devices on site and ensure proper grounding of the product with the power supply.
5. The rated operating temperature range of fluorine rubber O-rings is -20℃~ 250℃. If the operating temperature of the product is below -20℃, EPDM O-rings should be selected instead.
6. By default, cables are provided without plugs and cable lines, with a length of 1.5 meters and three material options available for selection. Unless specified otherwise, polyethylene cable material will be used. If a different cable material is required, please specify it in the order form.
7.In case of special requirements such as strong vibration, sudden shock or intense electromagnetic or RF interference,please inform us and indicate in your order form.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
