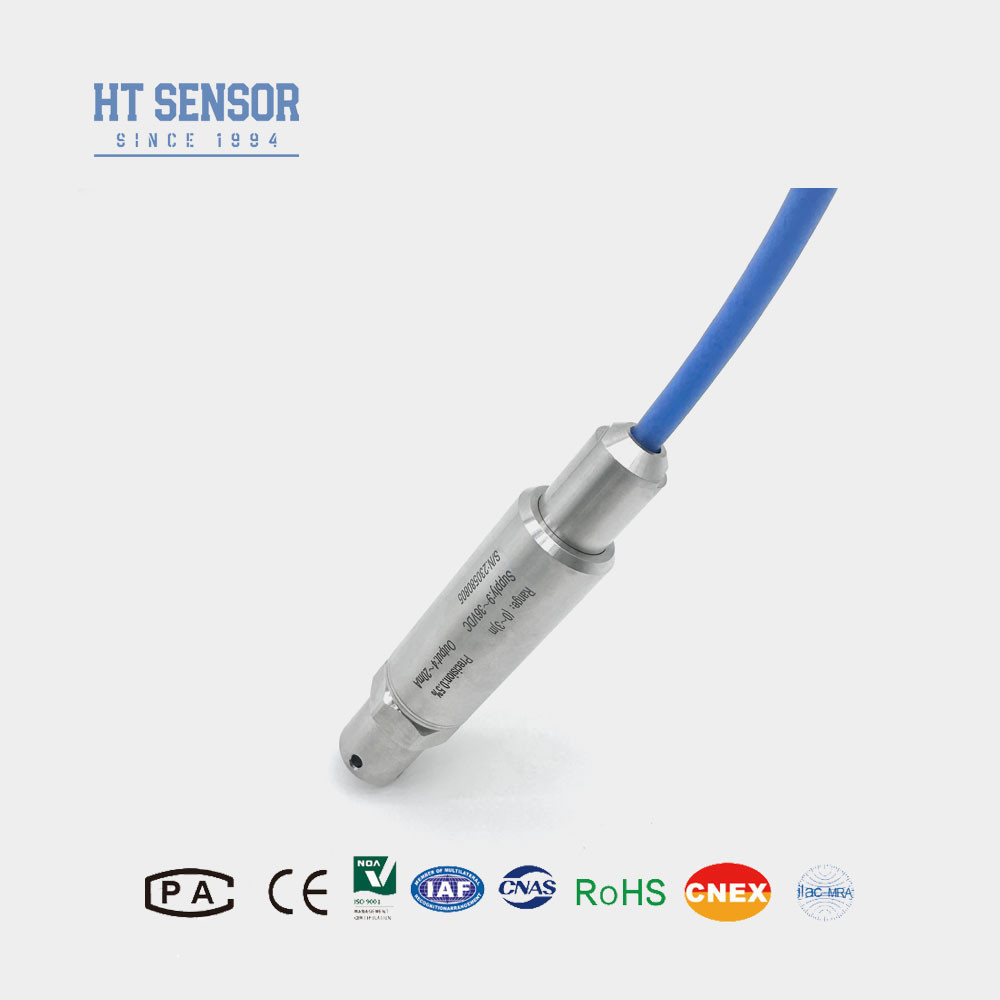

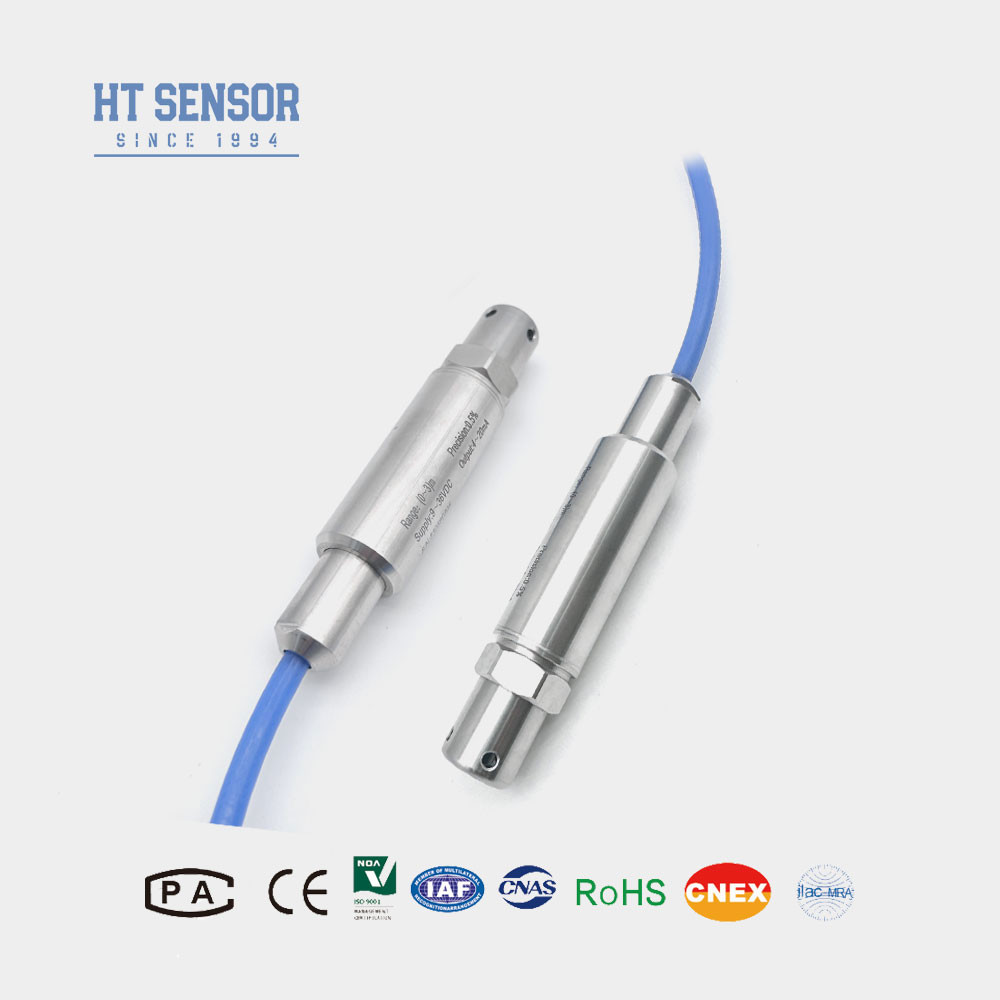

BH93420 I Water level sensor
Introduction of water level transmitter:
The BH934520-IT is an exceptional water level transmitter engineered to excel in the measurement of liquid or gas height, even in the most challenging conditions. Its all-welded structure and PTFE cable provide unparalleled protection against the rigors of high temperatures, corrosive media, and highly permeable substances. This remarkable resilience positions the BH934520-IT as a reliable choice for the monitoring and control of liquid or gas levels in a wide array of industrial applications, from tanks and containers to pipelines and beyond, making it a versatile solution across diverse industries, including industrial, chemical, pharmaceutical, and environmental protection.
Product Features of water level transmitter:
1. Full stainless steel housing, suitable for various testing environments.
2. Immersion-type probe measurement, easy installation.
3. Diverse output signal options.
4. Explosion-proof marking: ExiaIICT6.
5. High protection rate: IP68.
6. PE or PU or PTFE cable.
Applications of water level transmitter :
1. Compatible with 316LSS,noncorrosive liquids.
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
3. Measuring fuel levels in diesel and fuel tanks.
| Performance Parameters of water level transmitter |
| Measurement Range |
0~10m…400m |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 2X rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Zero Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature |
0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature |
-20~80ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP67, IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3Kg (without cable) |
| Cable Material |
Polyethylene, Polyurethane |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
- Ensure Compatibility with Measured Medium:
- It is crucial to verify that the medium being measured is compatible with the materials used in the construction of the BH934520-IT water level transmitter. The customer should confirm the chemical compatibility of the liquid or gas to prevent any potential issues or damage to the device.
- Provide Liquid Density Information for Accurate Measurement:
- The pressure detected by the transmitter is directly related to the density of the liquid. Therefore, the customer should provide the density of the measured liquid to ensure the accuracy of the level height measurement. If the exact density is unknown, the customer can consult with the sales staff to obtain an approximate value based on standard liquid density data.
- Notify of Electromagnetic or RF Interference:
- If the installation site is subject to strong electromagnetic or radio frequency interference, the customer should provide detailed information to the company and indicate this on the order. This will allow the appropriate measures to be taken to ensure the reliable operation of the BH934520-IT water level transmitter.
- Implement Lightning Protection and Grounding:
- To ensure the reliable operation of the BH934520-IT water level transmitter, it is recommended that the customer install lightning protection devices on-site and ensure that the transmitter and its power supply are properly grounded. This will help safeguard the product and maintain its long-term performance.
| Order Guide |
| BH93420 |
Code |
Outline Construction |
| |
I |
Pressure Transmitter |
| |
Measurement Range |
0~10m…400m |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
S8 |
RS485 |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
| |
Code |
Material |
| 01 |
304 Stainless Steel |
| 02 |
316L Stainless Steel |
| |
Code |
Cable Material |
| C1 |
PE |
| C2 |
PU |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
