19mm Piezoresistive Silicon Pressure Sensor Diaphragm Welding With All 316l.S.S Level Sensor
Product Details
| Material: | 316L Stainless Steel | Min Range: | 10kpa |
|---|---|---|---|
| Max Range: | 100MPa | Supply: | 1.5mA (0.4-2.0mA) |

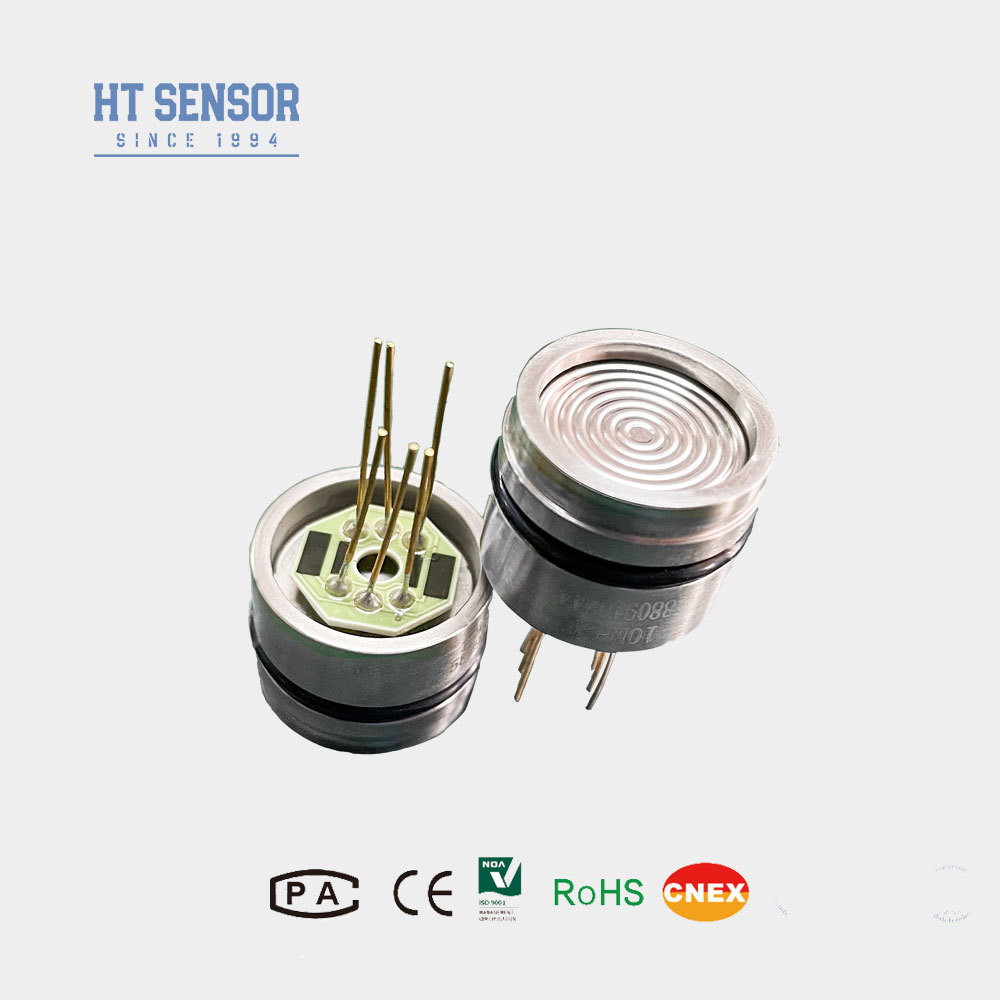

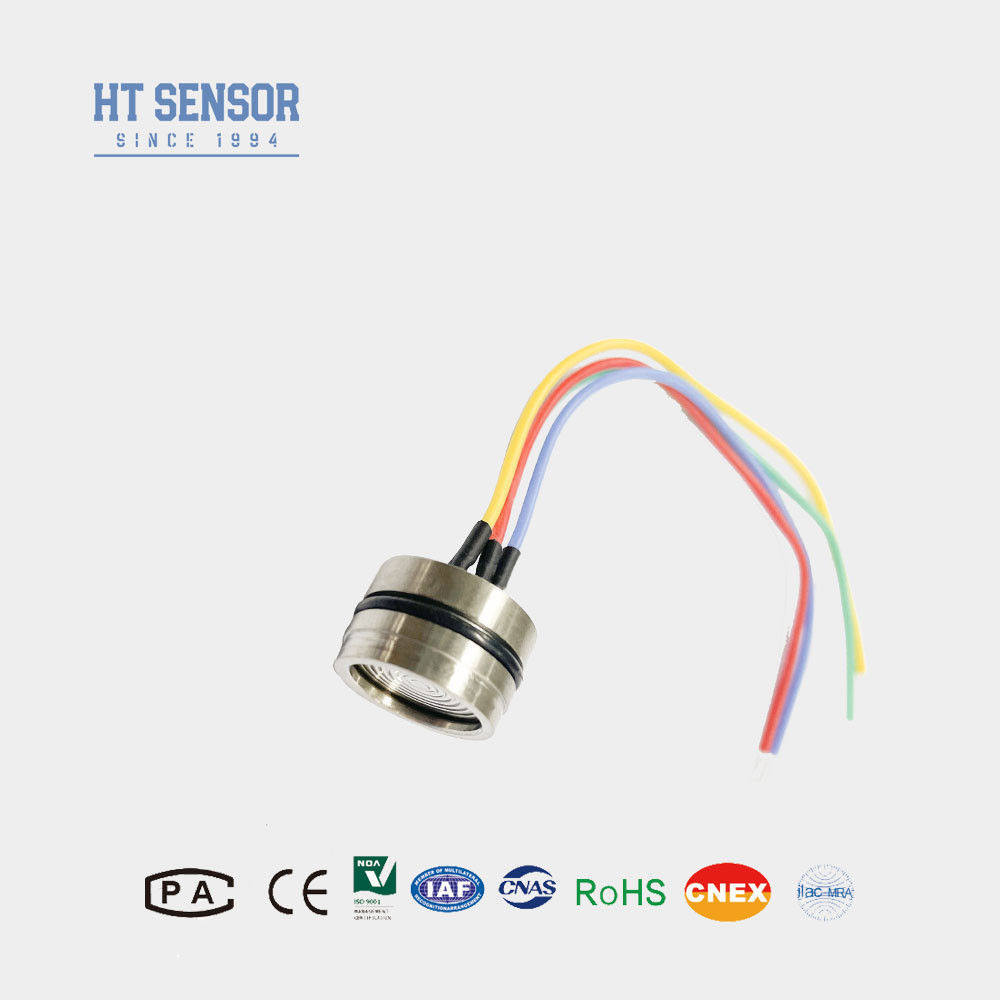

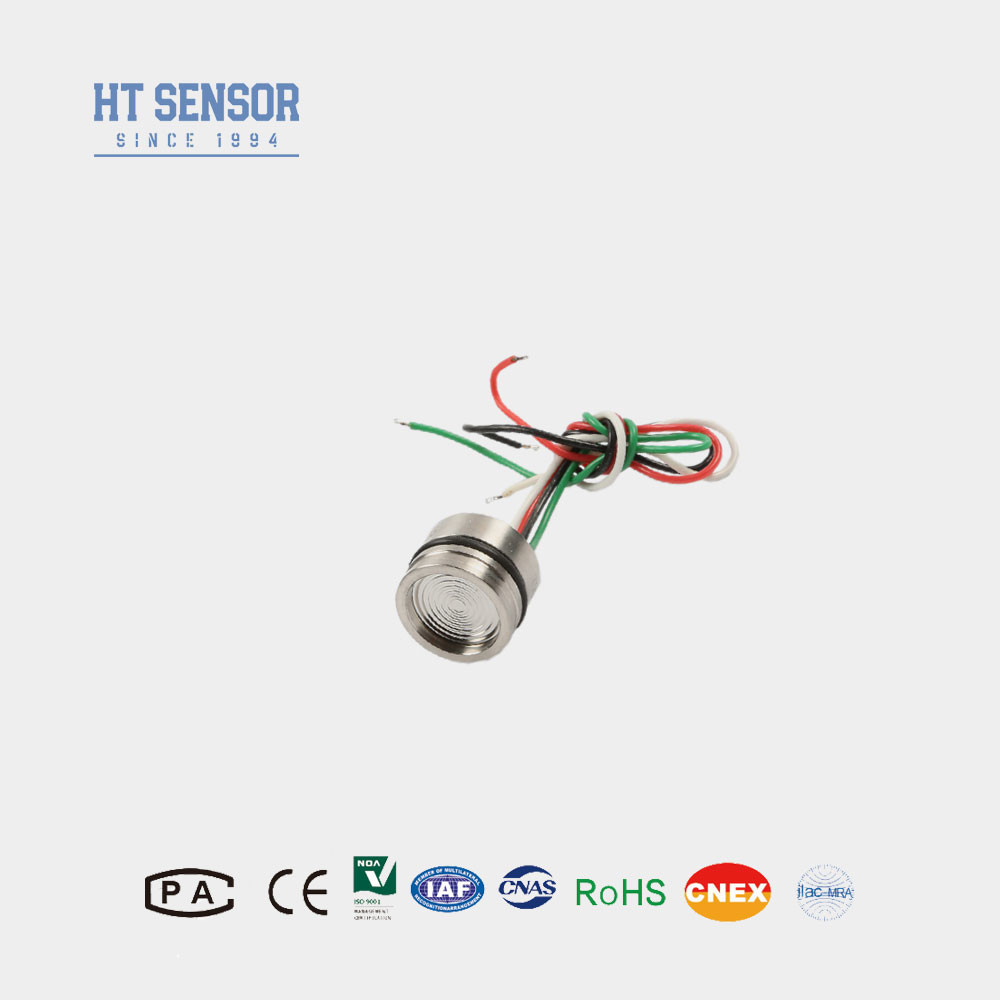

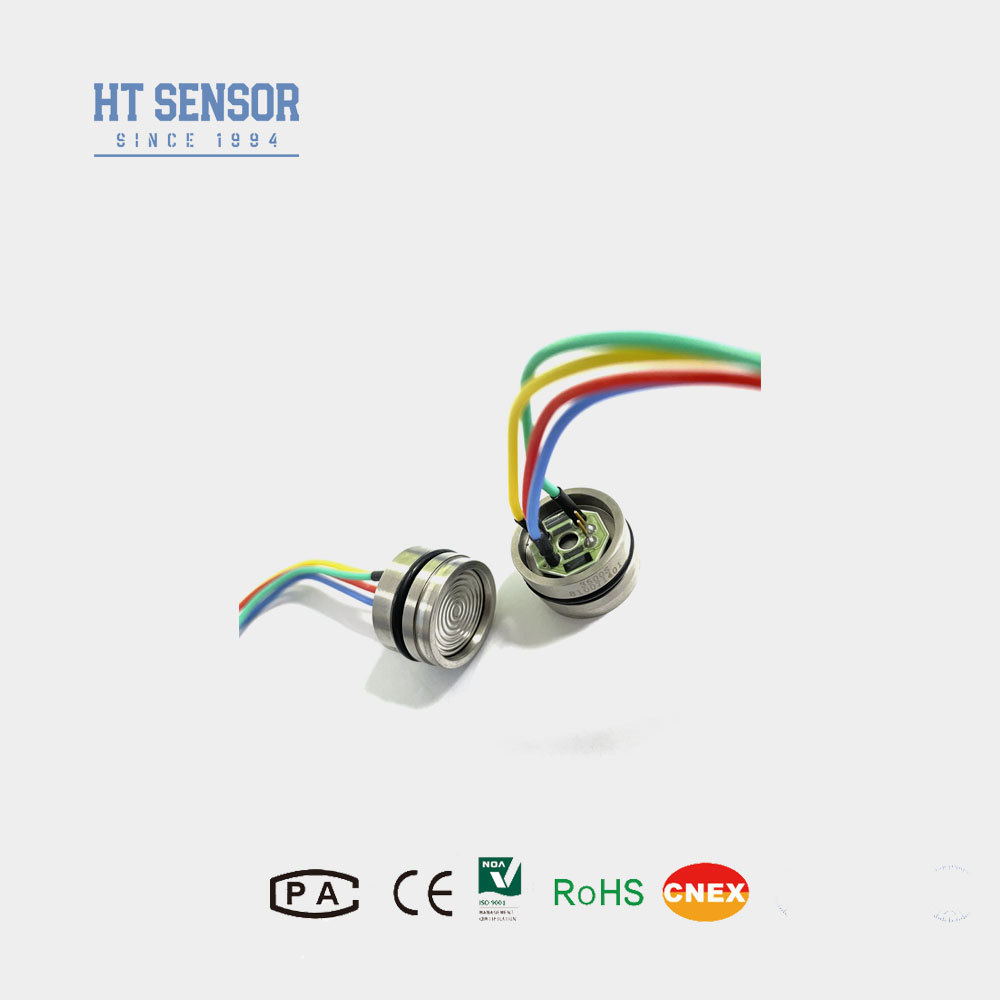

| OEM: | YES | Selectable: | Gold-plated Pin Or Four-color Silicone Wire |
| Model: | HT19 | High: | 12mm /15mm |
| Oil: | Difusion Silicon | Thread: | No /OEM |
| Highlight |
19mm Silicon Pressure Sensor,Diaphragm Welding Silicon Pressure Sensor,Piezoresistive Silicon Pressure Sensor |
||
Product Description
19mm Piezoresistive Silicon Pressure Sensor Diaphragm Welding Processes Ensure Performance
HT19 Silicon Pressure Sensor
Introduction of oil filled silicon pressure sensor:
- The sensor incorporates an international-grade, high-stability, and high-precision silicon pressure chip.
- Sophisticated temperature compensation algorithms are implemented to deliver accurate and reliable measurements across a wide operating temperature range.
- Leveraging over 30 years of development and manufacturing expertise, the sensor undergoes stringent quality control processes to ensure outstanding reliability and performance.
- The product's excellent stability and capabilities have earned widespread recognition and trust from users worldwide.
- These optimized descriptions highlight the advanced design, precision engineering, and rigorous quality control measures that contribute to the exceptional performance and reliability of the HT19 piezoresistive silicon pressure sensor.
Product Features of oil filled silicon pressure sensor:
- Wide measurement range:0~10KPa~100Mpa
- Piezoresistive silicon sensing element
- Full316LSS,Full Titanium or Hastelloy diaphragm
- O-ring mount
- High Accuracy and stability.
Applications of oil filled silicon pressure sensor:
- Measurement pressure of gas and liquid
- Petroleum exploitation
- Water supply,warm supply of town
- Process control system
- Aviation and navigation inspection
- Hydraulic pressure
Electrical Data of silicon Pressure sensor
- Supply:1.5mADC
- Input impedance:3KΩ~6KΩ
- Output impedance:2.5KΩ~6KΩ
- Insulation resistance:≥100MΩ/50VDC
- Insulation voltage:500VAC between the housing and electrical connection will not cause damage
- Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of oil filled silicon Pressure sensor
| Performance Parameters: | |||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPaS,100MPaS | ||||
| Typ | Max | Unit | |||
| Linearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0～50 | ℃ | ||
| ≥35kPa | 0～70 | ℃ | |||
| Operating Temperature | -20～80 | ℃ | |||
| Storage Temperature | -40～125 | ℃ | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ～28g | ||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | |||||
Dimension
NOTE:
1. During assembly, pay attention to the coordination of the core size and the transmitter housing to achieve the required air tightness.
2. During the housing assembly process, ensure that it is vertically aligned and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the medium under test is incompatible with the core diaphragm and housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to avoid deformation or puncture of the diaphragm and damage to the core.
5. Keep the pressure port of the gauge core open to the atmosphere to prevent water, water vapor or corrosive media from entering the negative pressure chamber of the gauge core.
6. If there is any change in the pin, please refer to the label on the actual product.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with about 30 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
