TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications

TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications
TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications
TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications
Basic Information
Place of Origin: Baoji，China
Brand Name: HT SENSOR
Certification: ISO9001
Model Number: HT12
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Get Best Price Contact Now
Detail Information
Model NO.: HT12 Thread Type: TO8
Wiring Type: Gold-plated Kovar Pins Or Silicon Wire Measuring Medium: Dry Gas Air
Range: 0-10kpa~200kpa Output: Analog Signal
Power: 1.5mA HS Code: 9026209090
For: Pressure Sensor Customization: Available OEM And ODM
Highlight:

Customizable Silicon Pressure Sensor

,

TO8 Encapsulation Silicon Pressure Sensor

,

Silicon Pressure Sensor for Aerospace

Product Description

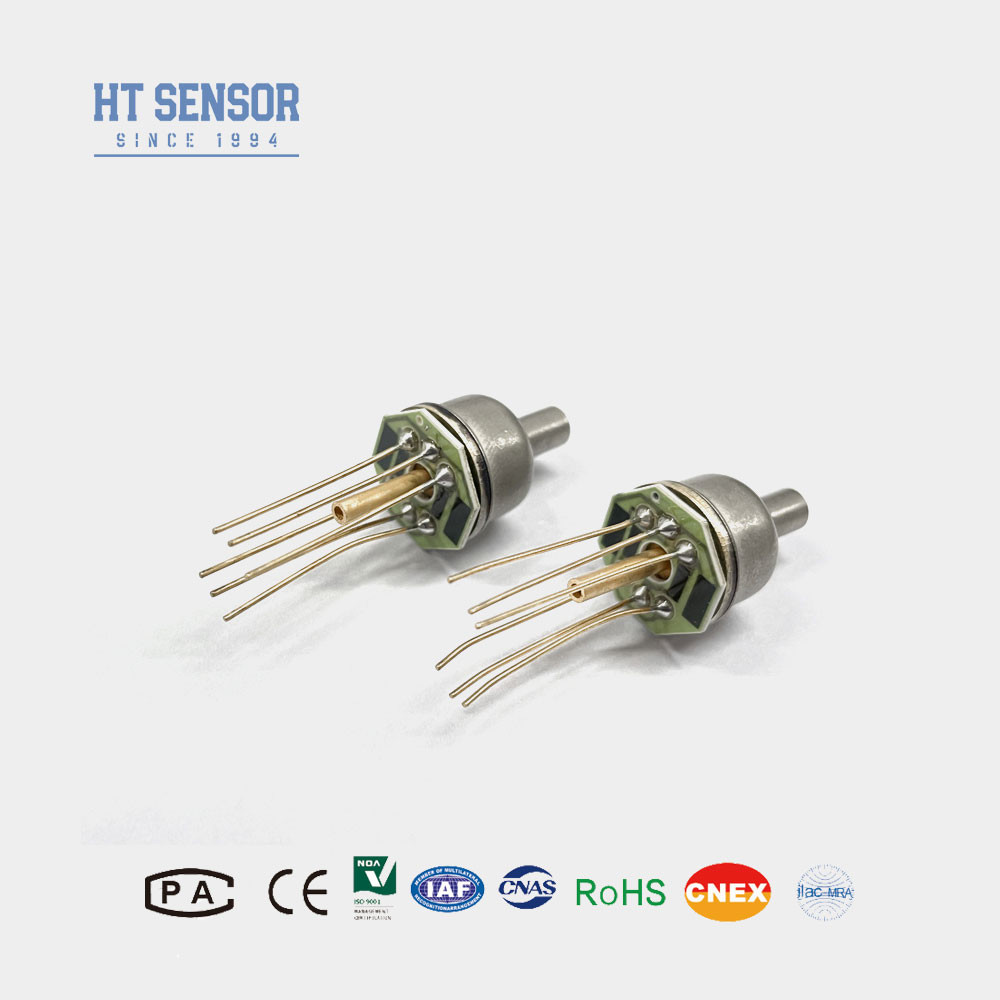

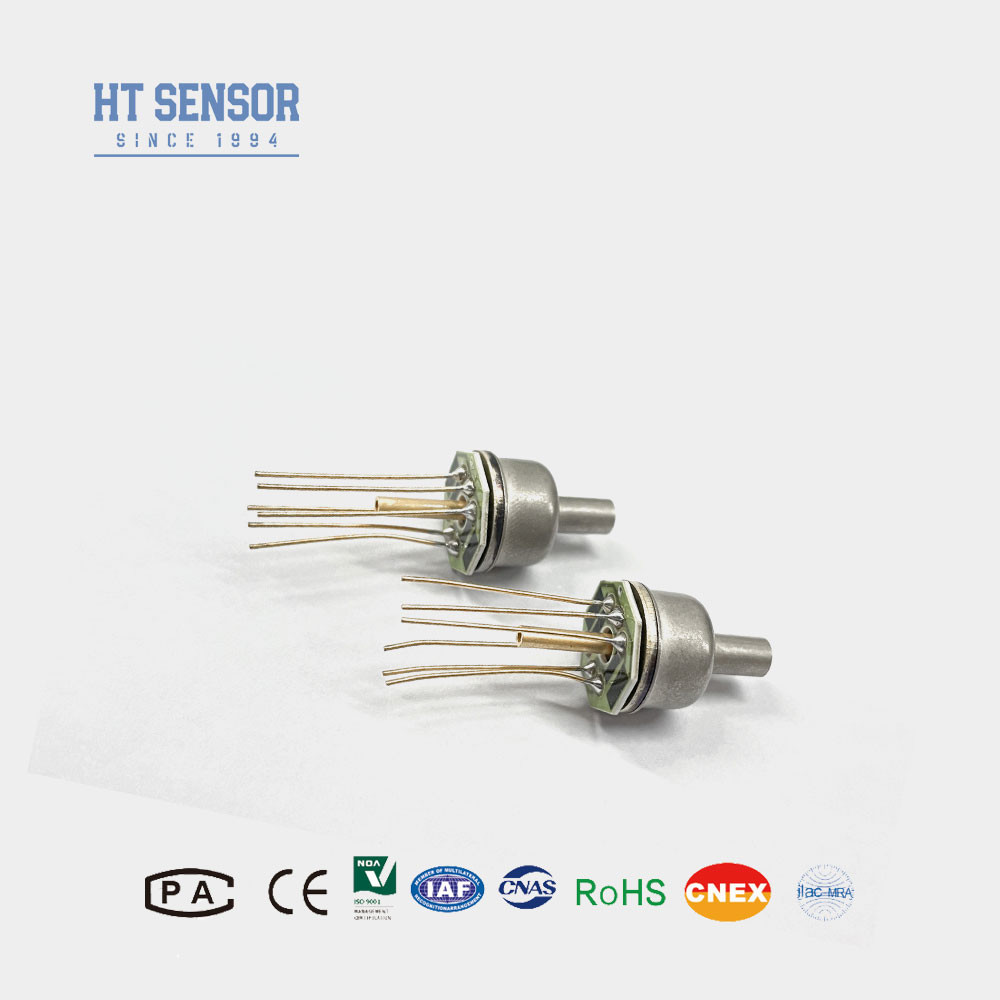

TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications

HT12 Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:



The HT12 silicon piezoresistive pressure sensor is a highly stable diffusion silicon element packaged using advanced TO8 packaging technology. The non-oil-filled core eliminates profile errors and significantly enhances the stability of the small range, making it particularly effective for measuring dry non-corrosive gas pressure.

Product  Features of silicon pressure sensor:
  1. The measurement range is wide from 0 to 10KPa to 2Mpa.
  2. High reliability, good stability.
  3. TO8 encapsulation technology.
  4. Aerospace applications.
Baoji Hengtong To8 Pressure Sensor for Dry Air Test

Applications of silicon pressure sensor:
  1. Dry, non-corrosive gas pressure was measured.
  2. The pneumatic control systemMedical applications of biomedical engineering.
  3. Hvac (HVAC) controls.
  4. Aerospace aviation related to the purpose of experiment.
Electrical performance of silicon pressure sensor:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance:3KΩ~6KΩ
  3. Output Impedance:2.5KΩ~6KΩ
  4. Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
Performance Parameters of silicon pressure sensor:
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Range with TO8   Min:7kpa   Max:200kpa
  Typ Max Unit
Linearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift   ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
Weight ~12.5g
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C

TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications 1TO8 Encapsulation Technology Silicon Pressure Sensor for Aerospace Applications 2
Outline Construction
Dimension Baoji Hengtong To8 Pressure Sensor for Dry Air Test
Electrical connection and compensation




Baoji Hengtong To8 Pressure Sensor for Dry Air Test






Ordering tips




1. Pay close attention to the alignment and fit between the sensor core and the housing during assembly to ensure the required air tightness.

2. Maintain proper vertical alignment and apply even pressure during assembly to prevent jamming or damage to the compensation plate.

3. Keep the pressure sensor core's air duct connected to the atmosphere and prevent water, moisture, or corrosive media from entering the positive and negative pressure chambers.

4. If there are any changes to the pin leads, refer to the label attached to the core for accurate identification.
