| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | ISO9001 |
| Model Number: | BP93420D-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP93420D-I | Power: | 12-36VDC (24VDC) |
|---|---|---|---|
| OUTPUT: | 4-20mA | Specification: | Aluminium Alloy |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter |
| Measuring Medium: | AIR | Accuracy Grade: | 1.0%F.S. 0.5%F.S. |
| Pressure Range: | 0-500pa~200kpa | Customization: | OEM And ODM |
| High Light: | 12-36VDC Differential Pressure Transmitter,Versatility Differential Pressure Transmitter,Mini Aluminium alloy Differential Pressure Transmitter |
||

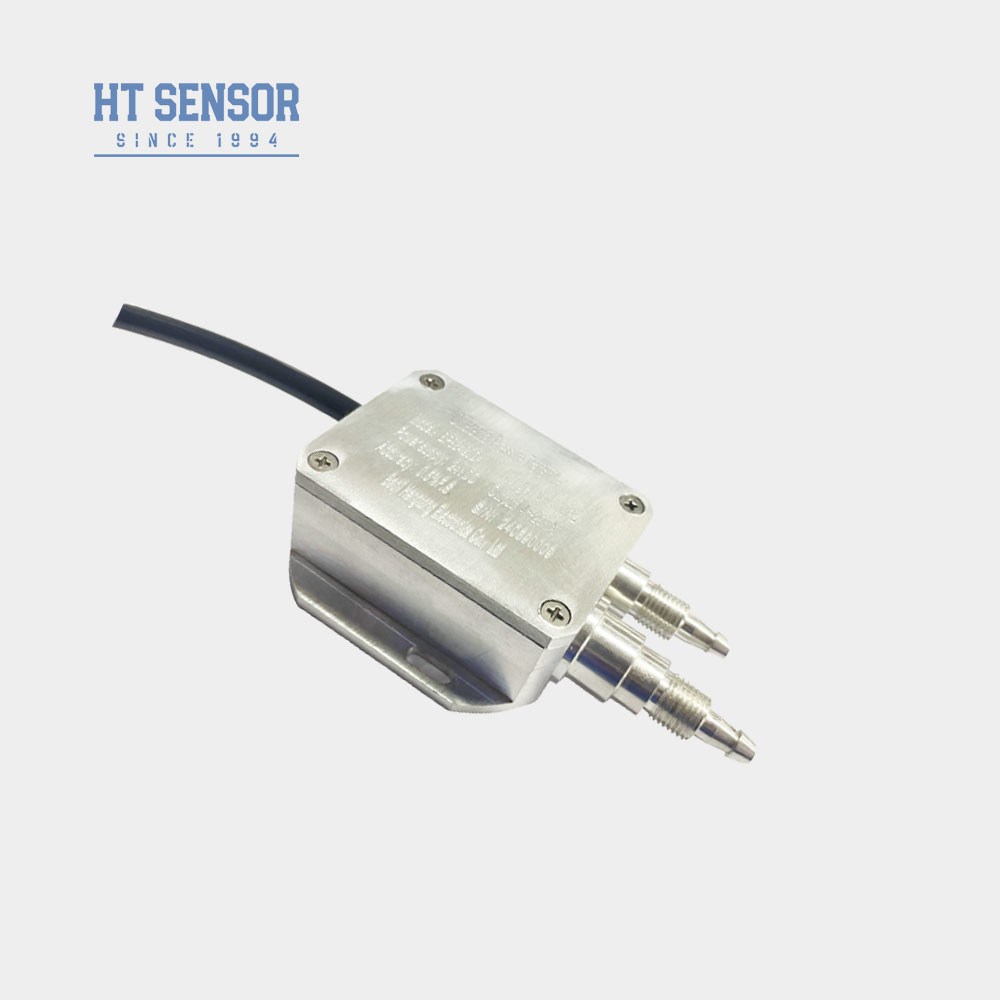

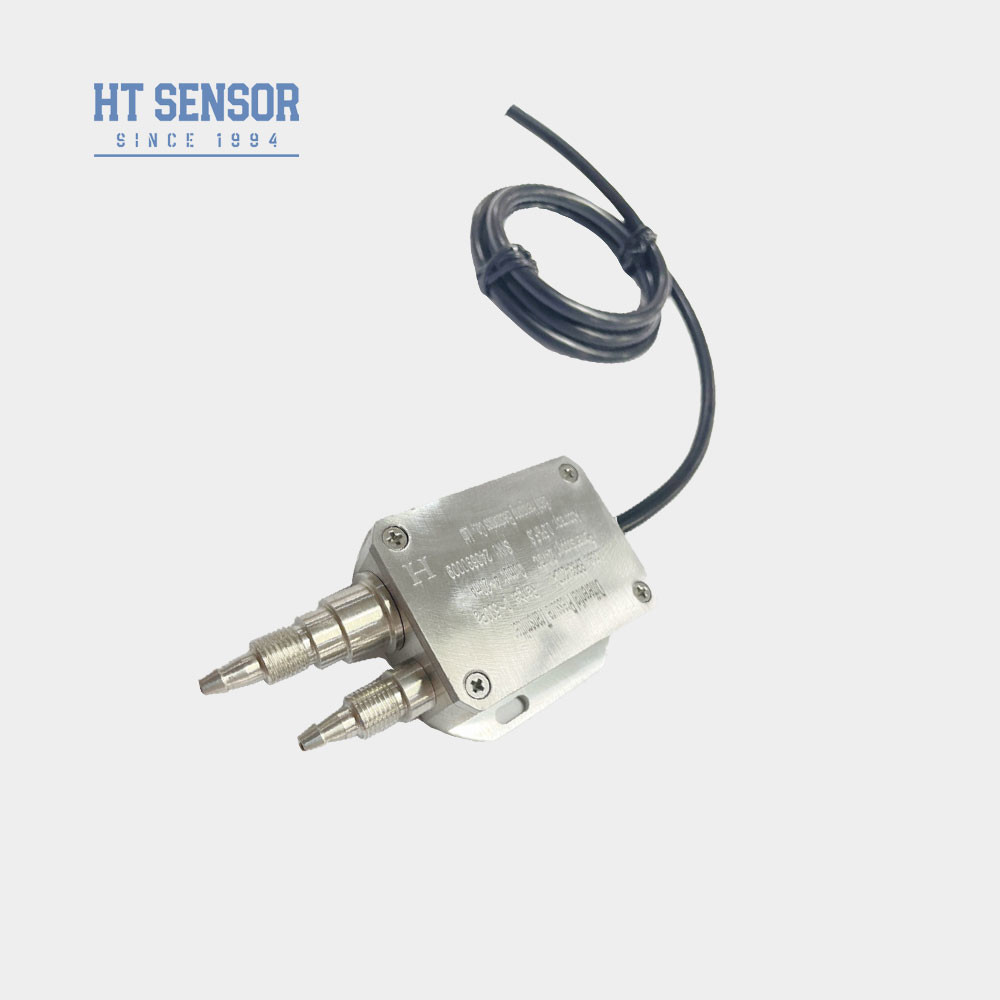

Introduction of differential pressure transmitter :
The BP93420DI differential pressure transmitter leverages the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, and is applicable in scenarios like boiler air supply, underground mine ventilation, and pressure monitoring in ultra-clean workshops for process control.
| Performance Parameters OF Differential Pressure Transmitter | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) ±1% (Maximum) |
| Zero Point Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Full Scale Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy,Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 .φ8 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | about 0.2kg |
Product Features of differential pressure transmitter :
Applications of differential pressure transmitter :
Attention:
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. To ensure reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
3. The cable is 0.5 m by default. If you need more cables, or a different cable material, please specify this in your order.
4. In case of special requirements such as strong vibration, instantaneous shock, strong electromagnetic or RF interference, please inform and indicate in the order.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
