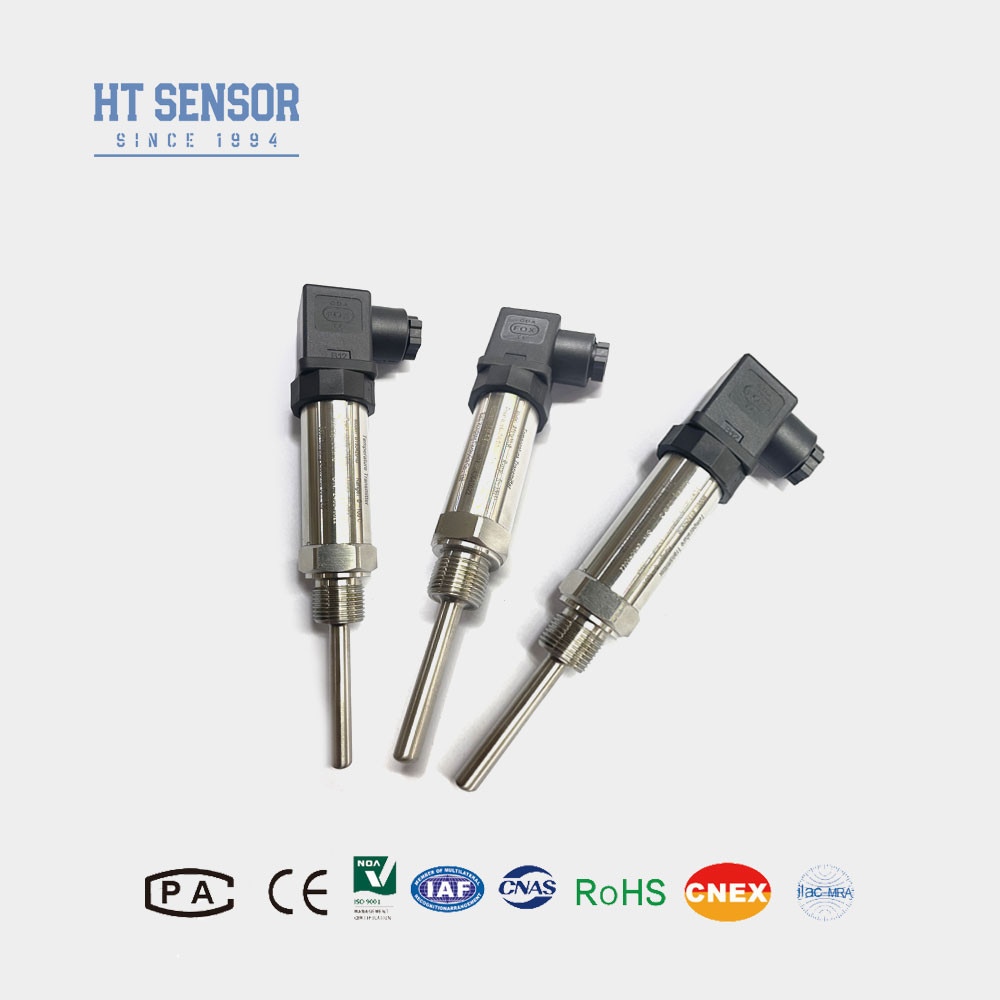

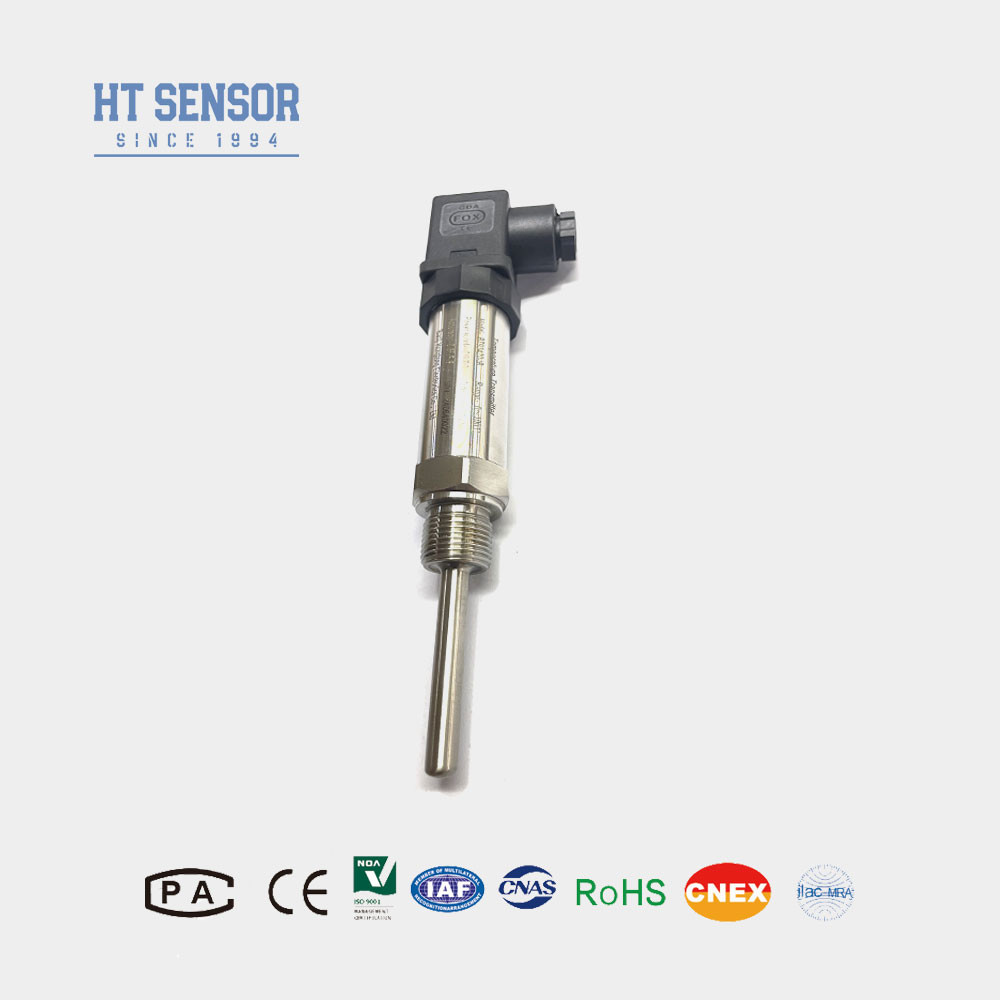

BT93420-IB Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
The BT93420-IB temperature transmitter is a crucial device utilized for temperature measurement and conversion into an electrical signal. It is widely employed in industrial control systems to transform temperature readings from a sensor into a standardized electrical signal (such as 4-20mA or 0-10V) for the purpose of temperature monitoring and control. Temperature transmitters play an essential role in numerous industrial applications, including chemical processing, pharmaceuticals, food processing, and HVAC (heating, ventilation, and air conditioning). They are renowned for their high accuracy, reliability, and ability to withstand high temperatures while meeting the stringent requirements of diverse industrial environments.
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
Applications of temperature induicator transmitter:
- Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters of temperature induicator transmitter |
| Measurement Range |
-30~200ºC |
| Accuracy @ 25ºC |
±0.5% (Typ.) ±1% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Operating Temperature |
-30~80ºC |
| Storage Temperature |
-40~100ºC |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Maximum temperature |
120% of the rated temperature range |
| Protection Rating |
IP65 |
| Weight |
~0.5Kg |
| Outline Construction of temperature induicator transmitter |
| Terminal Box |
|
| Order Guide |
| BT93420 |
Temperature Indicator Transmitter |
| |
Code |
Outline Construction |
| I |
Blue Terminal Box |
| II |
2088 housing |
| III |
2088+LED |
| IIIA |
3051+LED |
| |
Measurement Range |
-30~200ºC |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S4 |
0~10mADC |
| S2 |
1~5VDC |
S5 |
0~20mADC |
| S3 |
0~5VDC |
S6 |
0~10VDC |
| |
Code |
Pressure Connection |
| J1 |
M27X2 Male |
| J2 |
Other |
| |
Code |
Insertion depth |
| L |
Actual insertion depth |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
