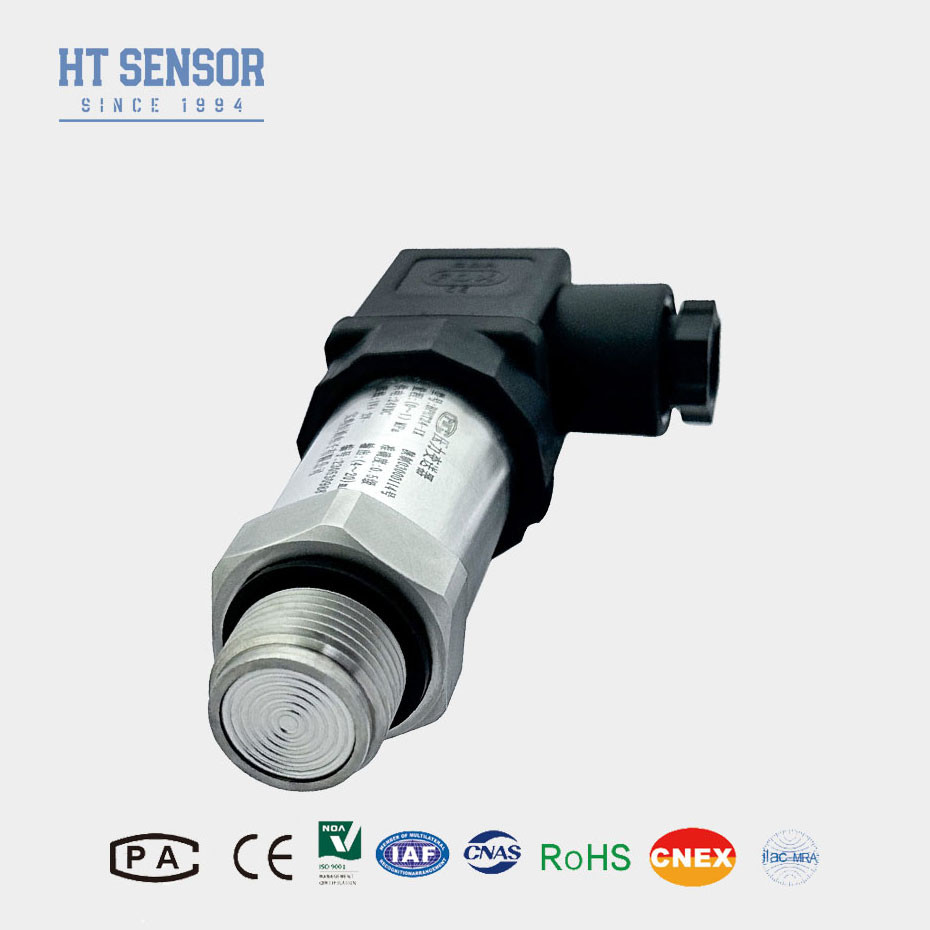

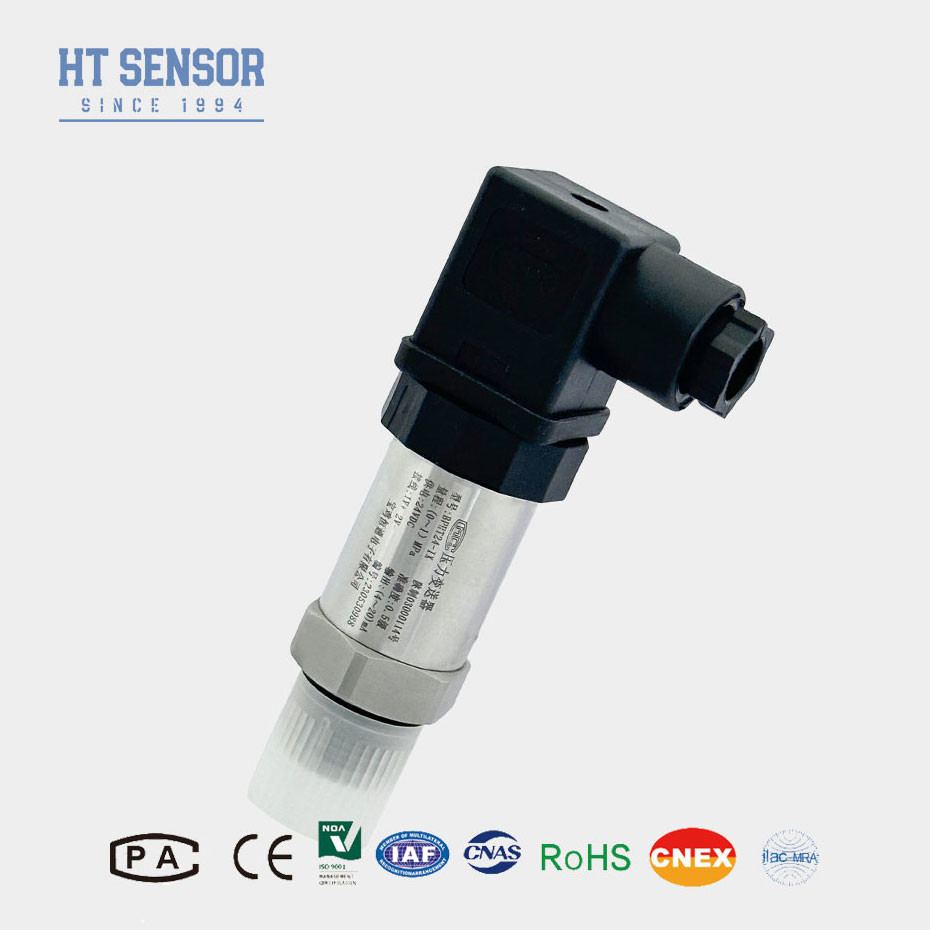

BPHT24-IX Accurate and Durable Smart Pressure Transmitter for Hygienic Environments

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BPHT24-IX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BPHT24-IX Accuracy Grade: 0.5%F.S
Pressure Range: -100kpa...0kpa ~10kpa...35MPa Weight: ~0.2kg
Housing Material: 304 S.S Pressure Type: Gauge/Absolute/Sealed
Measuring Medium: Air And Liquid IP Rating: IP65
Customization: Available | Customized Request Output Signal Type: Analog/Digital

Product Description

Led Lcd Display Flush Diaphragm Pressure Sensor Smart Pressure Transmitter

BPHT24-IX Pressure Transmitter


Introduction of Smart  Pressure Transmitter :

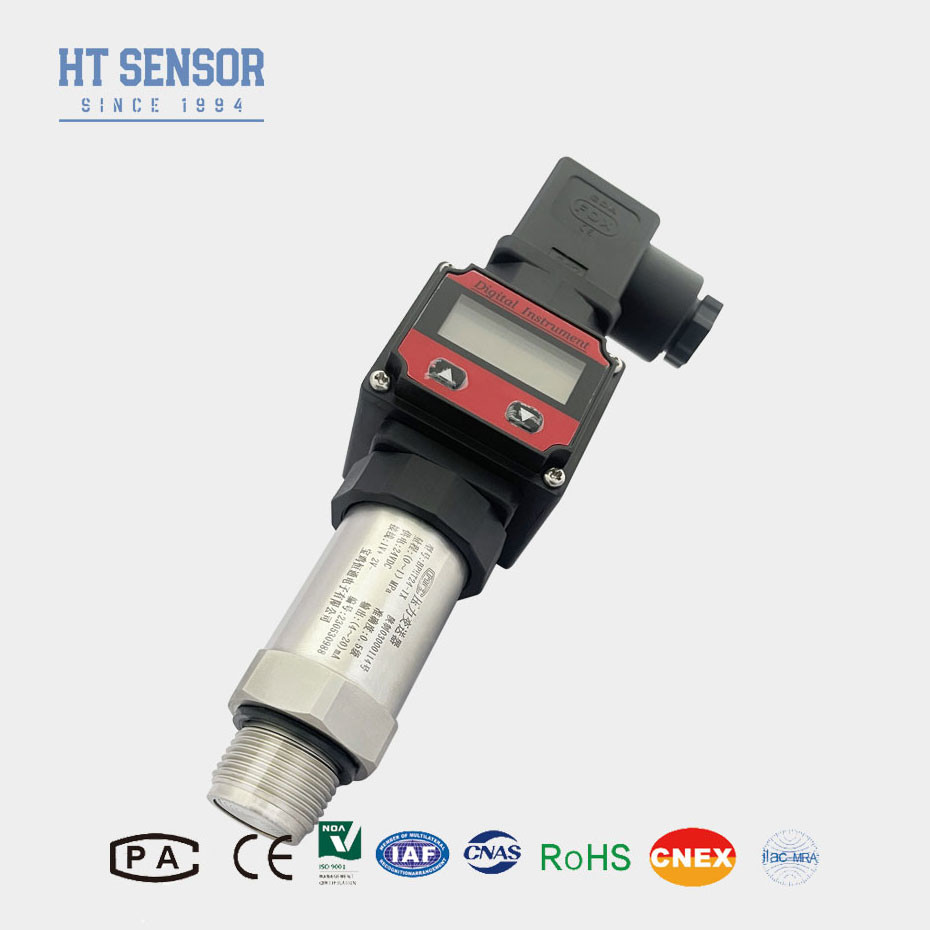

BPHT24-IX pressure transmitter The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.The flush diaphragm pressure sensor is equipped with a liquid crystal display screen, which can visually display the current measured pressure value, which is convenient for users to obtain real-time pressure information



Product Features:


1. Various pressure interface options
2. Designed for hygienic applications to prevent medium scaling
3. High accuracy with a fully stainless steel structure
4. Easy to clean

Applications:


1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Used in the marine and aviation industries





Performance Parameters
Measurement Range 0~35Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.2kg


Output Signal

Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0/1~5V
0/1~10V



utline Construction
Dimension Ht Digital LCD Flush Diaphragm OEM Pressure Transmitter for Beverage Industry


LED LCD Display Pressure Ht Series Flat Diaphragm Silicon Pressure-Resistance Transmitter

BPHT24-IX Accurate and Durable Smart Pressure Transmitter for Hygienic Environments 2




Order Guide
BP93420XX Pressure Transmitter
  Code Outline Construction
IX      Display Pressure Transmitter  IIC/III Industrial General/ Display Pressure Transmitter
  Measurement Range 0~35Kpa…~20MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
  Code Power Supply
D1 24VDC
D3 Other
  Code Output Signal
S1 4~20mADC
S2 1~5VDC S6 0~10VDC
  Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 1/2NPT
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure



FAQ:

Q: What features do your pressure sensor transmitters offer?
A: Our pressure sensor transmitters are known for their high precision, durability, and exceptional performance. We also offer customization options to meet specific needs.

Q: Can I request special specifications for the transmitters?
A: Yes, our team of engineers can customize our products to fit your unique needs. We provide both OEM and ODM services.

Q: What is your production capacity?
A: Our manufacturing facilities have the capacity to produce up to 30,000 pressure sensor transmitters per month, making us fully capable of handling large-scale orders. However, we recommend contacting our sales team in advance to ensure smooth production and delivery scheduling.

Q: How long does it typically take for delivery?
A: For standard models, the delivery period is usually 5-8 working days. However, custom-made products may have varying delivery times.

Q: How are your products priced? Do you offer discounts?
A: Our products are competitively priced, and we do offer discounts for bulk orders or long-term partnerships.

Q: What is the warranty for your products? And what about after-sales service?
A: Our products come with a warranty of 24 months after shipment. Our after-sales service team is available to respond to inquiries within 24 hours, and we also offer remote instruction via PC network when needed.
