Name: HT20 Differential Silicon Pressure Sensor With Consumption For Industrial Applications
Brand: Baoji Hengtong Electronics Co., LTD
SKU: HT20
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	HT20	Wiring Type:	Four-Wire
Measuring Medium:	Gas And Liquid	Range:	0-10kpa~2Mpa
Power:	1.5mA（0.4-2.0mA）	Transport Package:	Carton
Length:	29.5mm	Origin:	Baoji. China
HS Code:	9026209090	Type:	Differential Pressure Sensor
For:	Differenial Pressure Transmitter	Output Signal Type:	Analog Type
Material:	Stainless Steel	Customization:	Available
Highlight:	Differential Silicon Pressure Sensor , Industrial Applications Silicon Pressure Sensor , HT20 Silicon Pressure Sensor

Product Description

HT20 Differential Silicon Pressure Sensor With Consumption For Industrial Applications

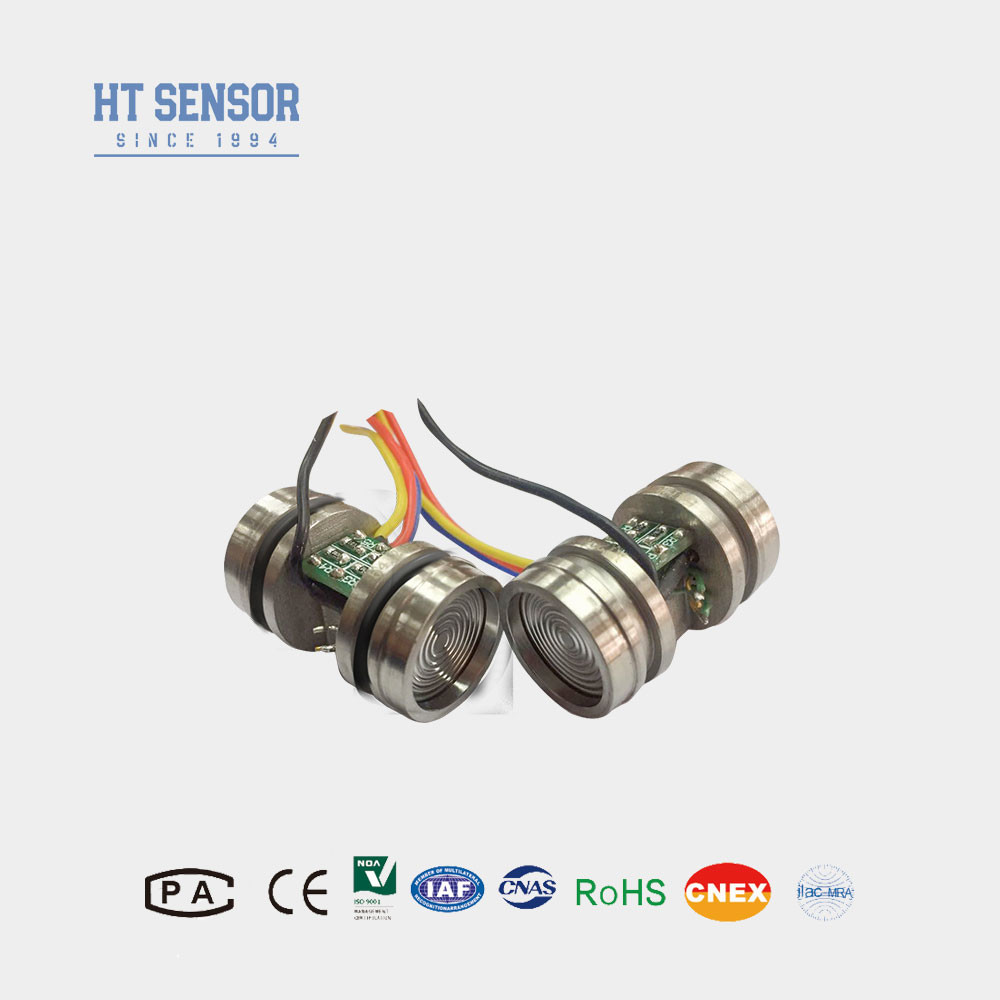

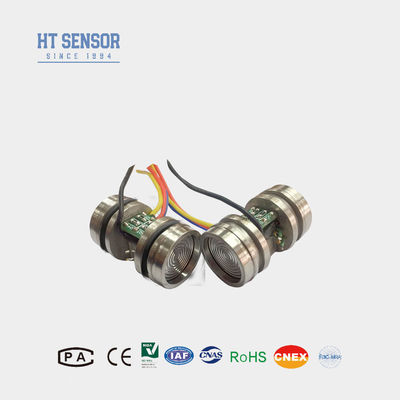

HT20 Differential Pressure Sensor

Introduction of differential silicon pressure sensor:

The HT20 differntial silicon pressure senor is a silicon piezoresistive differential pressure sensor with a core of highly stable diffused silicon element. The core is enclosed in a 316L stainless steel housing, and the pressure is transmitted through a stainless steel diaphragm and sealed silicon oil to the sensitive chip. The sensitive chip does not directly contact the measured medium, forming a fully solid-state structure for pressure measurement, enabling precise measurement of differential pressure. Therefore, this product can be applied in various scenarios that require differential pressure measurement, including harsh and corrosive environments
Product Features of differential silicon pressure sensor:

Stable and reliable performance
High resistance to static pressure
Cost-effective
Utilizes silicon piezoresistive oil-filled pressure-sensitive element

Applications of differential silicon pressure sensor:

Differential pressure detectiony
Pressure calibration instruments
Liquid level measurement
Industrial process control

Electrical performance of differential silicon pressure sensor:

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance:3KΩ~6KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters of differential silicon pressure sensor:
Measurement Range		10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Typ	Max	Unit
Linearity		±0.15	±0.3	%F.S
Repeatability		0.05	0.1	%F.S
Hysteresis		0.05	0.1	%F.S
Zero Offset Output		0±1	0±2	mV
Full Scale Output	≤20KPa	50±10	50±30	mV
	≥35kPa	100±10	100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1	±2	%F.S
	≥35kPa	±0.5	±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1	±2	%F.S
	≥35kPa	±0.5	±1	%F.S
Compensated Temp.	≤20KPa	0~50		ºC
	≥35kPa	0~70		ºC
Operating Temperature		-20~80		ºC
Storage Temperature		-40~125		ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %		F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~45g
The parameters are tested under the following conditions: 1.5mA @ 25°C

Outline Construction
Dimension
Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor for accurate information

Electrical connection and compensation of differential silicon pressure sensor

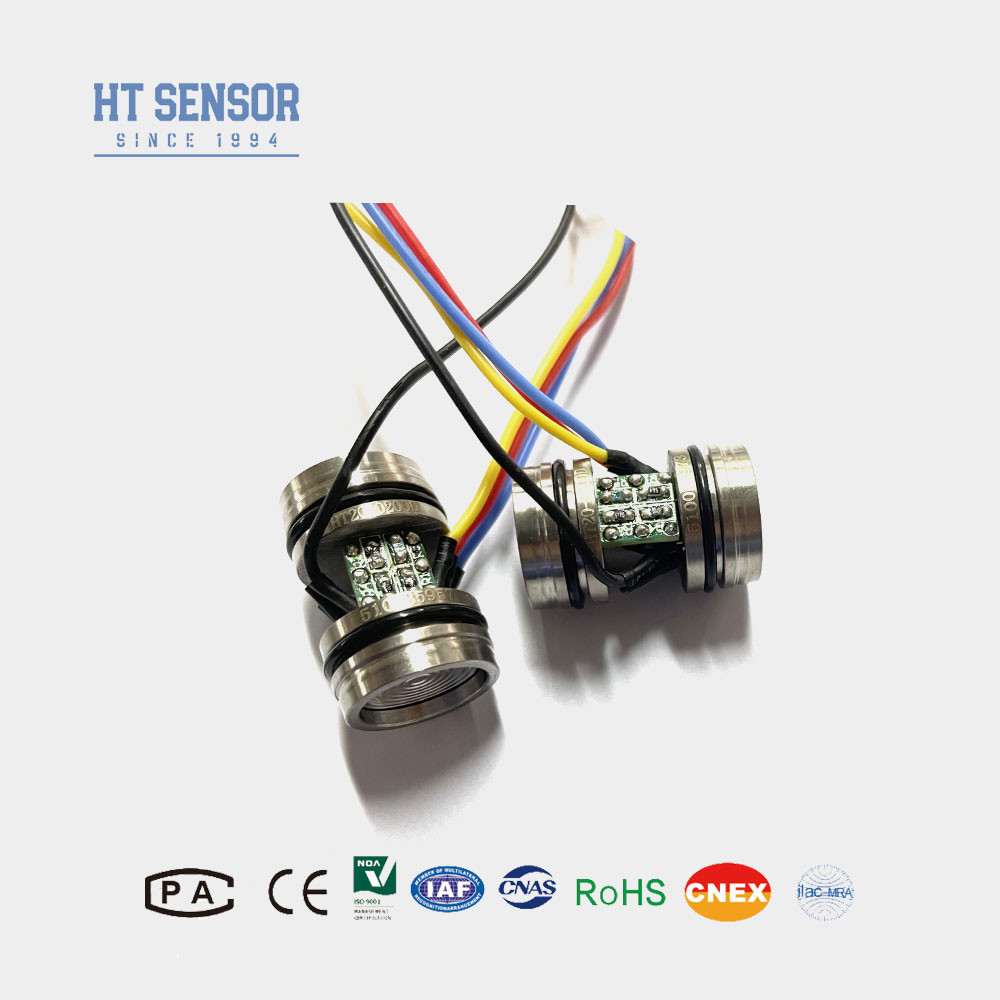

Ht20 Mini Differential Pressure Sensor Cell for Liquid Test

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
