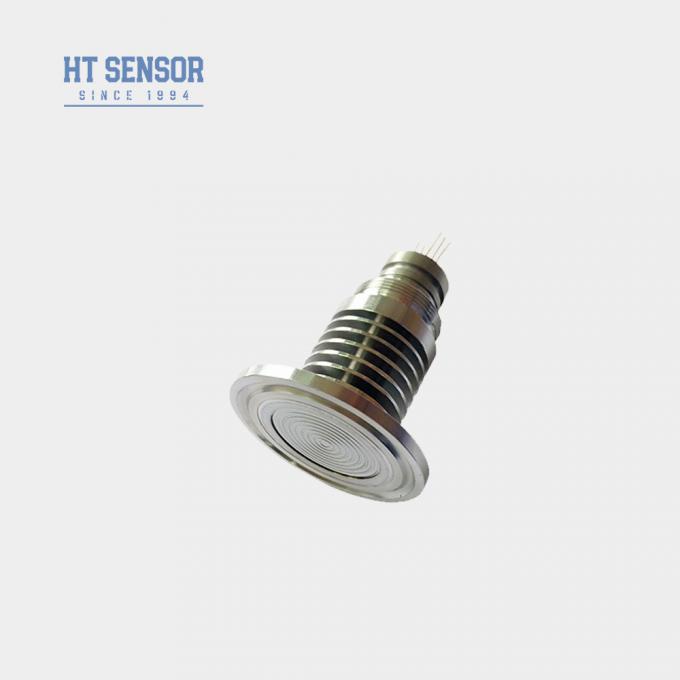

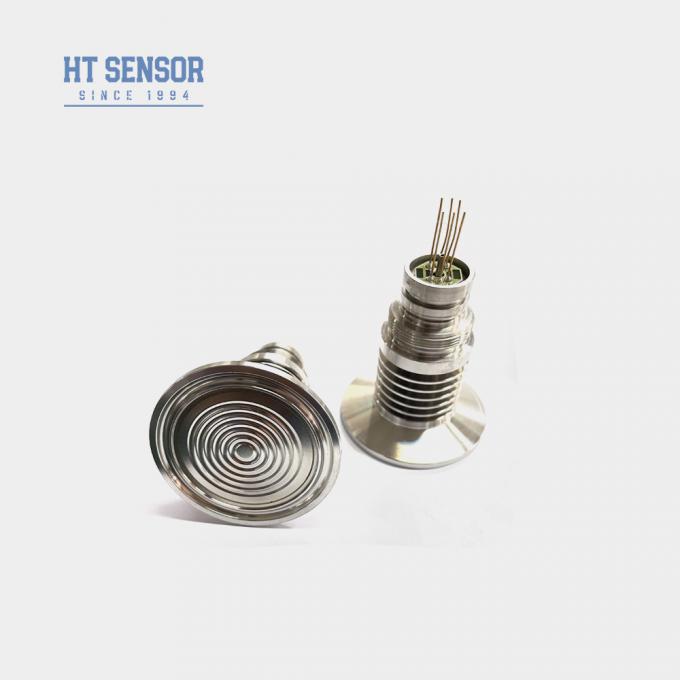

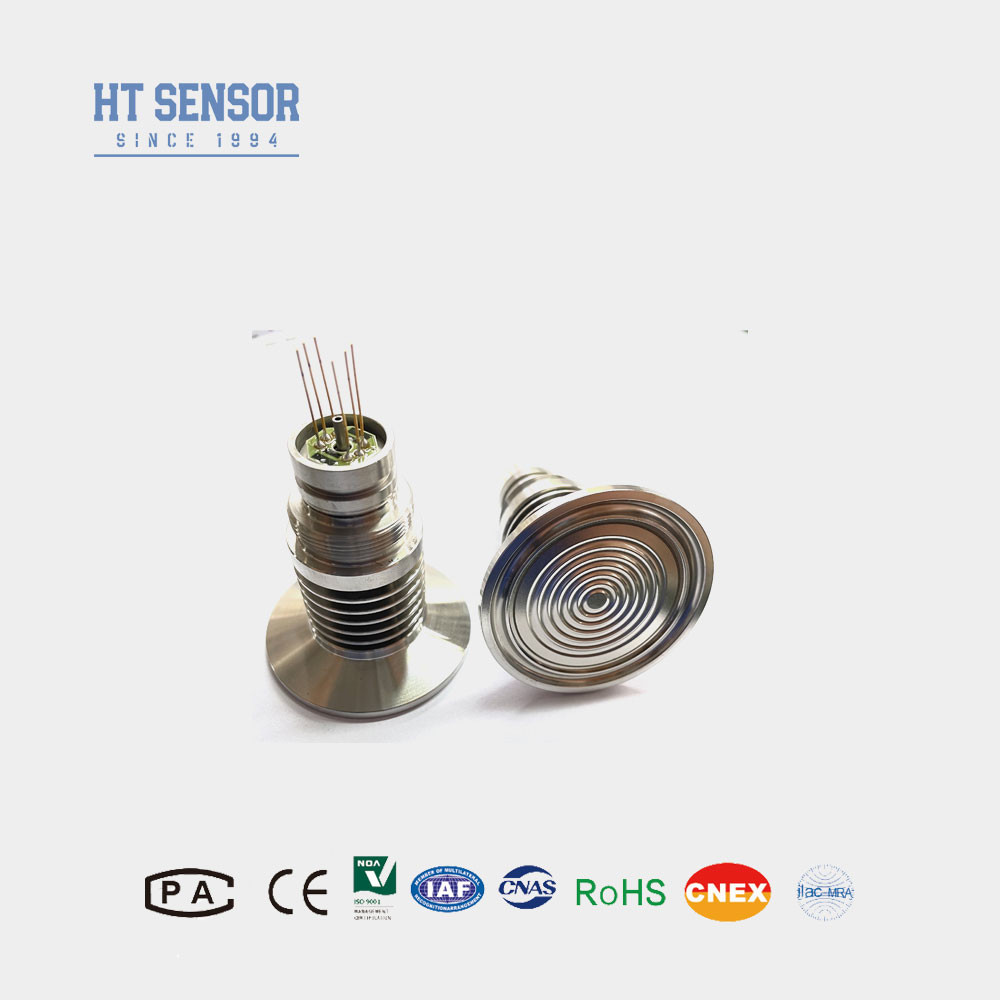

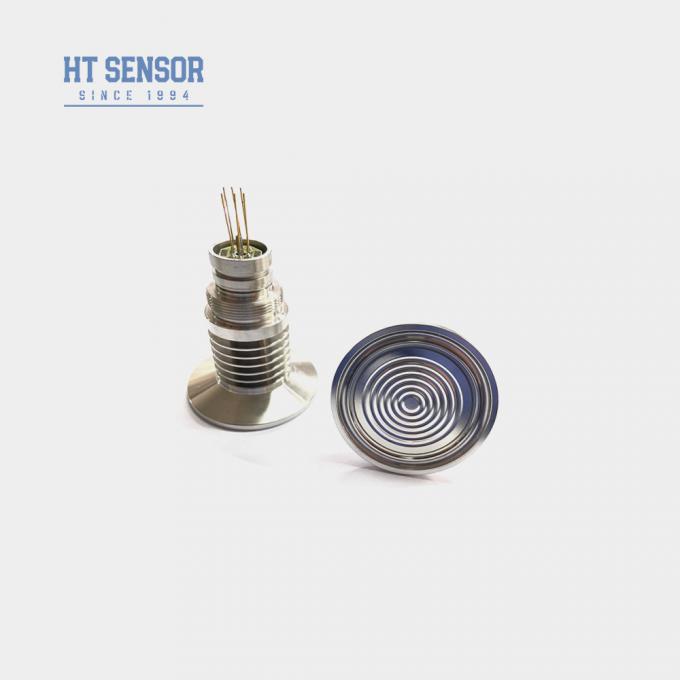

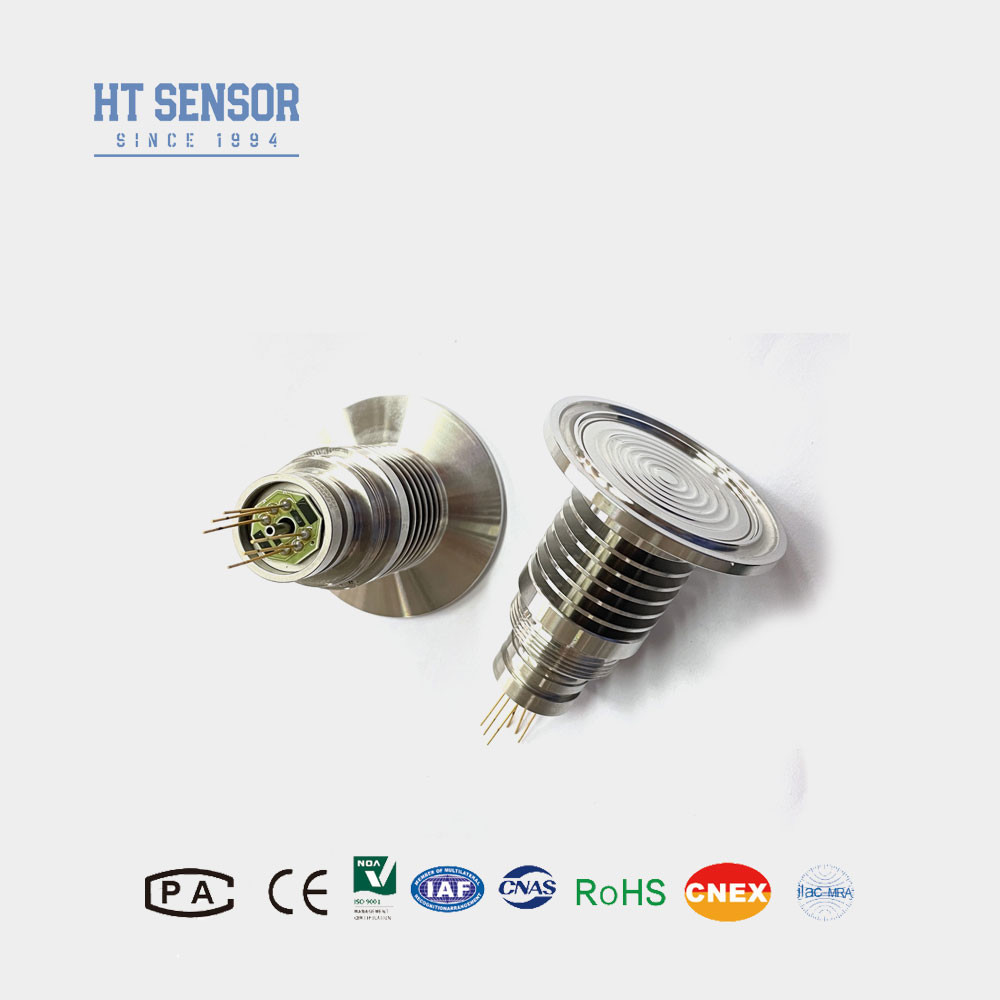

HT-IQT High Temperature Food And Beverage Industry Silicon Pressure Sensor

HT-IQT Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:

HT-IQT is a flush diaphragm pressure sensor with a highly stable high temperature diffusion silicon chip. The sensitive chip does not directly contact the measured medium. The pressure is transferred to the sensitive chip through the stainless steel diaphragm and the sealing silicone oil, and the resistance bridge of the chip changes, resulting in a change in voltage, and the voltage changes to the millivolt level. This product is high temperature clamp structure, easy to clean will not produce crystallization in the thread end, easy to clean, simple installation, high reliability. Suitable for food, health and other industries.

High Temperature Flange Is Easy to Clean The Pressure Sensor Transmitter

Product Features of silicon pressure sensor:

Advanced technology and 316L stainless steel housing packaging
Temperature compensation and zero point correction through thick film
circuit Outstanding reliability, repeatability, and stability

Applications of silicon pressure sensor:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Food and beverage industry
Pharmaceutical industry

Electrical performance of silicon pressure sensor:

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance : 2.5KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.

Performance Parameters of silicon pressure sensor:
Measurement Range		Gauge(G)	35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±10		50±30	mV
	≥35kPa	100±10		100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~220g
The parameters are tested under the following conditions: 1.5mA @25°C

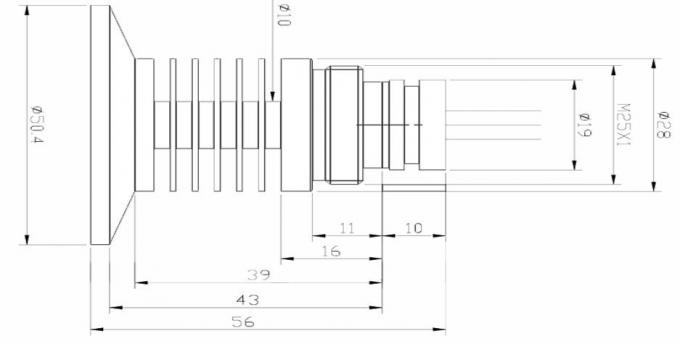

Outline Construction
Dimension

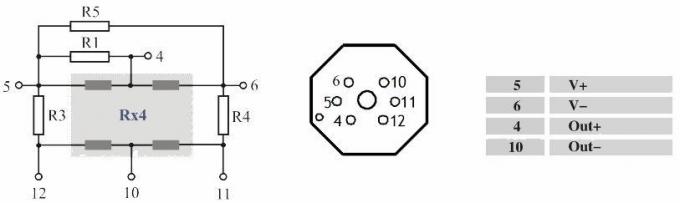

Electrical connection and compensation

Selection Examples

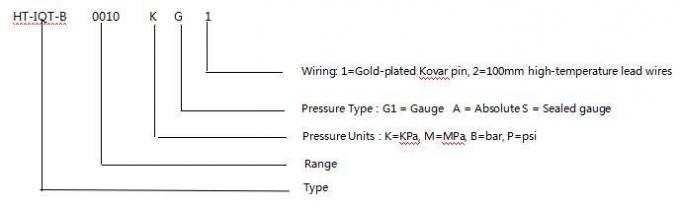

Ordering tips

1. In the assembly, pay attention to the coordination of the core size and the transmitter housing to achieve the required sealing
2. During the housing assembly process, ensure that it is vertically aligned and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the medium under test is incompatible with the core diaphragm and housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to avoid deformation or puncture of the diaphragm and damage to the core.
5. Keep the pressure port of the gauge core open to the atmosphere to prevent water, water vapor or corrosive media from entering the negative pressure chamber of the gauge core.
6. If any pin changes, refer to the label on the actual core wire.
