Name: HT-IQT-B High Temperature Silicon Pressure Sensor For Food And Beverage Industry
Brand: Baoji Hengtong Electronics Co., LTD
SKU: HT-IQT-B
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	HT-IQT-B	Range:	0-35kpa~3.5Mpa
Wiring Type:	Gold-plated Kovar Pins Or 4 Wires	Measuring Medium:	Air And Liquid
Dia:	50.4mm	Output:	100mv+-30mv
Power:	1.5mA	Type:	Diffused Silicon Pressure Sensor
Output Signal Type:	Analog	Material:	Stainless Steel
Customization:	Available \| Customized Request
Highlight:	High Temperature Silicon Pressure Sensor , HT-IQT-B Silicon Pressure Sensor , Beverage Industry Silicon Pressure Sensor

Product Description

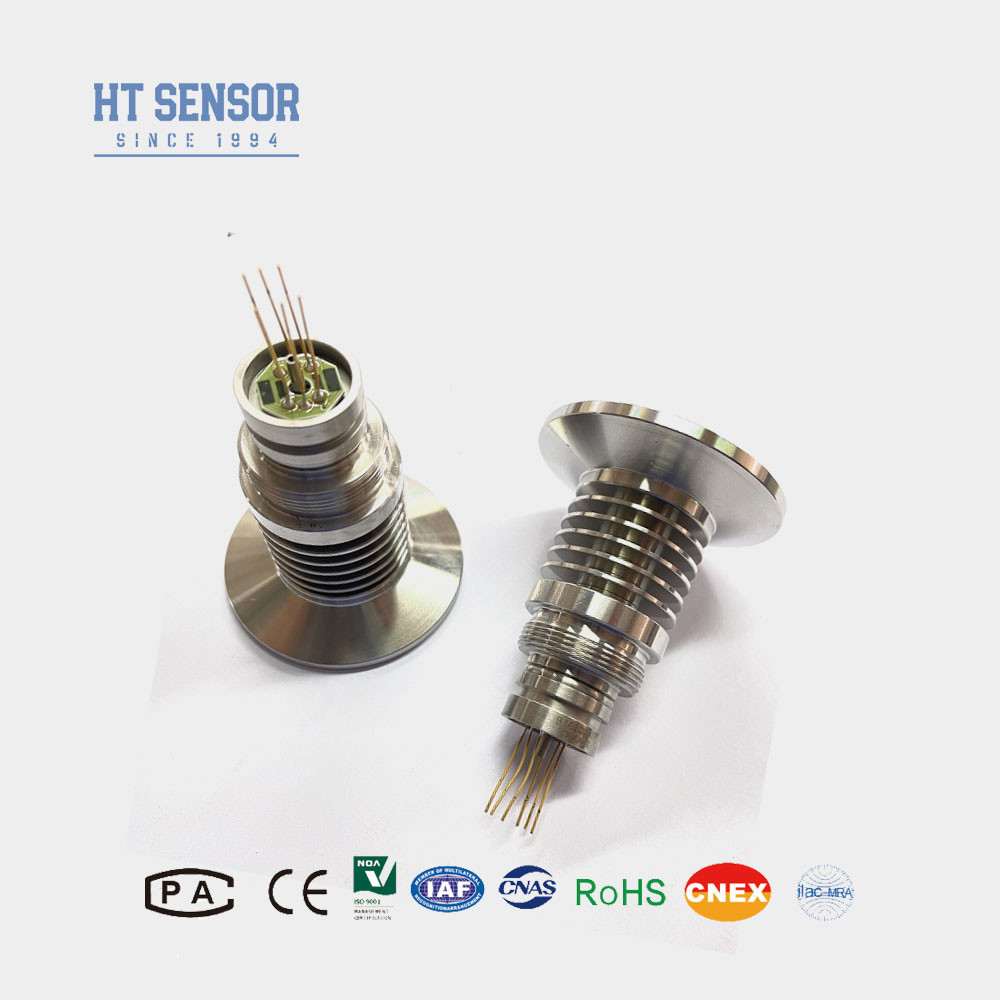

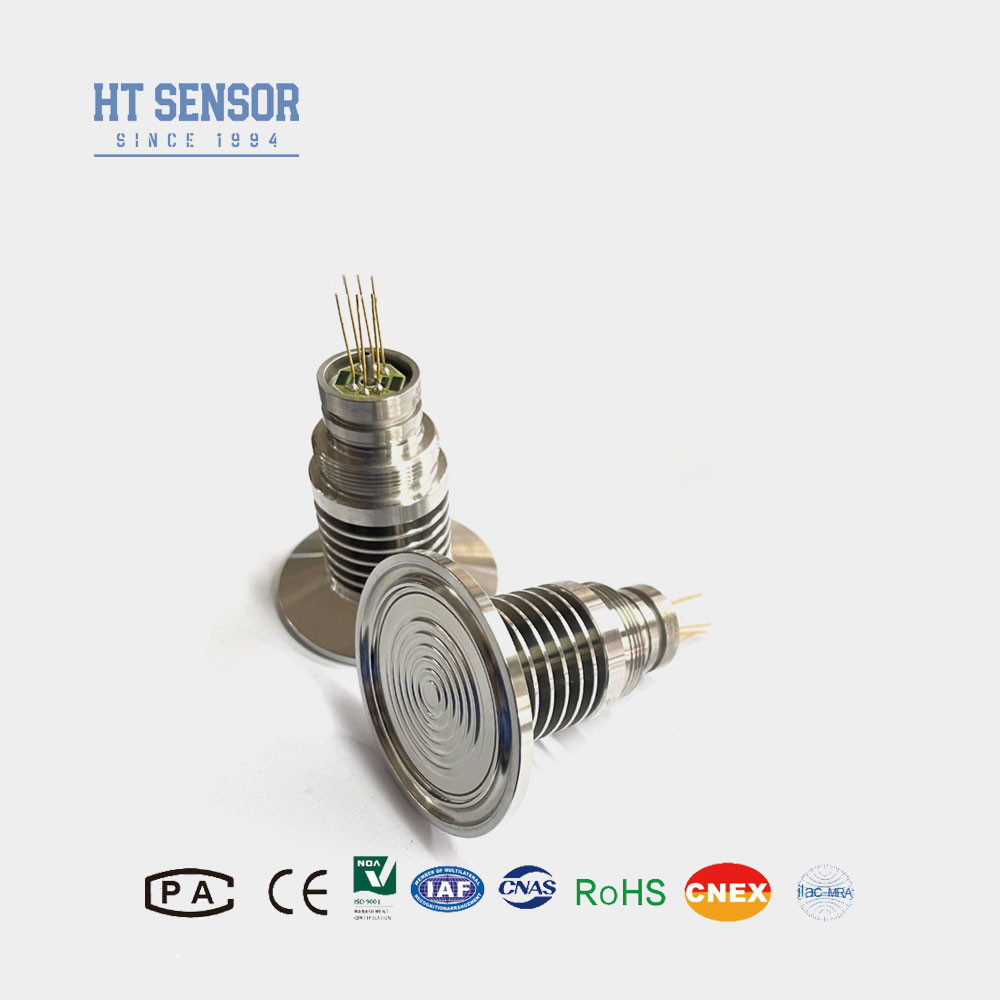

HT-IQT-B High Temperature Silicon Pressure Sensor For Food And Beverage Industry

HT-IQT-B Piezoresistive Silicon Pressure Sensor

Introduction of high temperature diffused silicon pressure sensor:

HT-IQT-B is a high temperature diffusion silicon pressure sensor, clamp pressure sensor using disposable silicone oil filling technology. The diaphragm is directly pressurized to prevent scaling, unsanitary and adhesive clogging. With heat sink structure, suitable for high temperature media measurement.Widely used in food, pharmaceutical, wine and other health industry and measuring medium may be contaminated.

Products of special construction and size can be customized. We has a mature batch production line, can complete the production task on time and quality.

Applications of high temperature diffused silicon pressure sensor:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Food and beverage industry
Industrial process control
Pharmaceutical industry

Electrical performance of high temperature diffused silicon pressure sensor:

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance : 2.5KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.

Performance Parameters of high temperature diffused silicon pressure sensor:
Measurement Range		Gauge(G)	35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±10		50±30	mV
	≥35kPa	100±10		100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~220g
The parameters are tested under the following conditions: 1.5mA @25°C

Outline Construction
Dimension

Electrical connection and compensation

HT diffused silicon oil-filled pressure sensor

Selection Examples

company

FQA

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
